Raycus RFL-C2000 User Manual

Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C100~RFL-C2000S
17

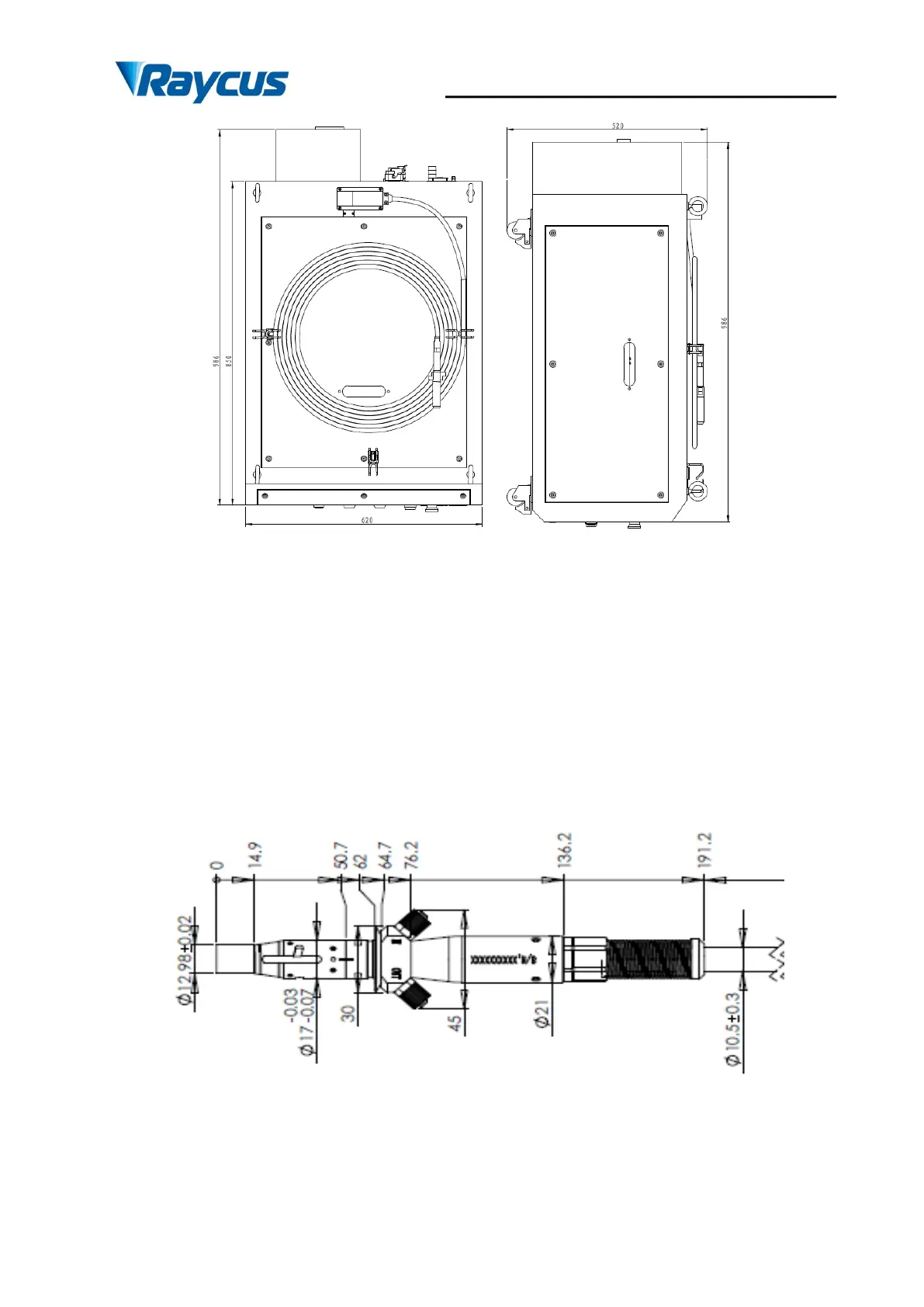

Figure 5 (c) Top and Side view of RFL-C1500S/C2000S (unit: mm)
3.2 Output Cables and installation
Raycus CW fiber laser uses different laser output cables according to the laser model.
3.2.1 Output Cable of RFL-C100~RFL-C1000
The laser output cable of RFL-C100~RFL-C1000 is a self-made QBH output cable (optional
QCS output head). The specific appearance dimensions are shown in Figure 6, Figure 7 below:
Figure 6 QBH Output Cable (unit: mm)
