Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C100~RFL-C2000S
15

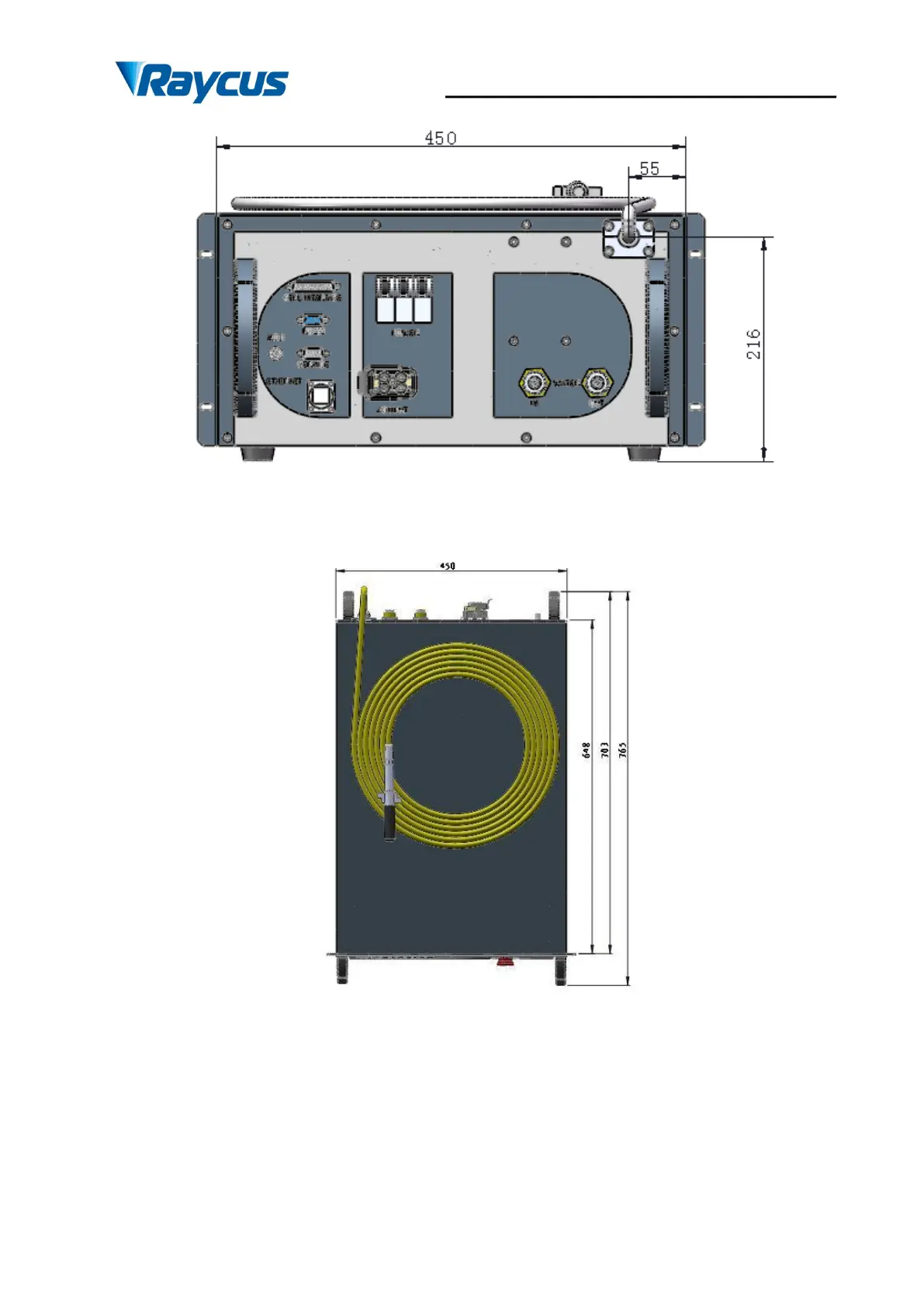

Figure 4 (b) Rear panel view of RFL-C1000 (unit: mm)
Figure 4 (c) Top and Side view of RFL-C1000 (unit: mm)
3.1.3 Dimension of RFL-C1500S/C2000S
Figure 5 shows dimensions of RFL-C1500S/C2000S (take RFL-C2000S for example,
RFL-C1500S has the same dimensions).
