Raycus RFL-C2000 User Manual

Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C100~RFL-C2000S
38
Pulse Mode——duty=50%<100%
power
ready
ALARM
Laser
on/off
EMON/
EMOFF
Laser
>10s
>1ms
>1ms

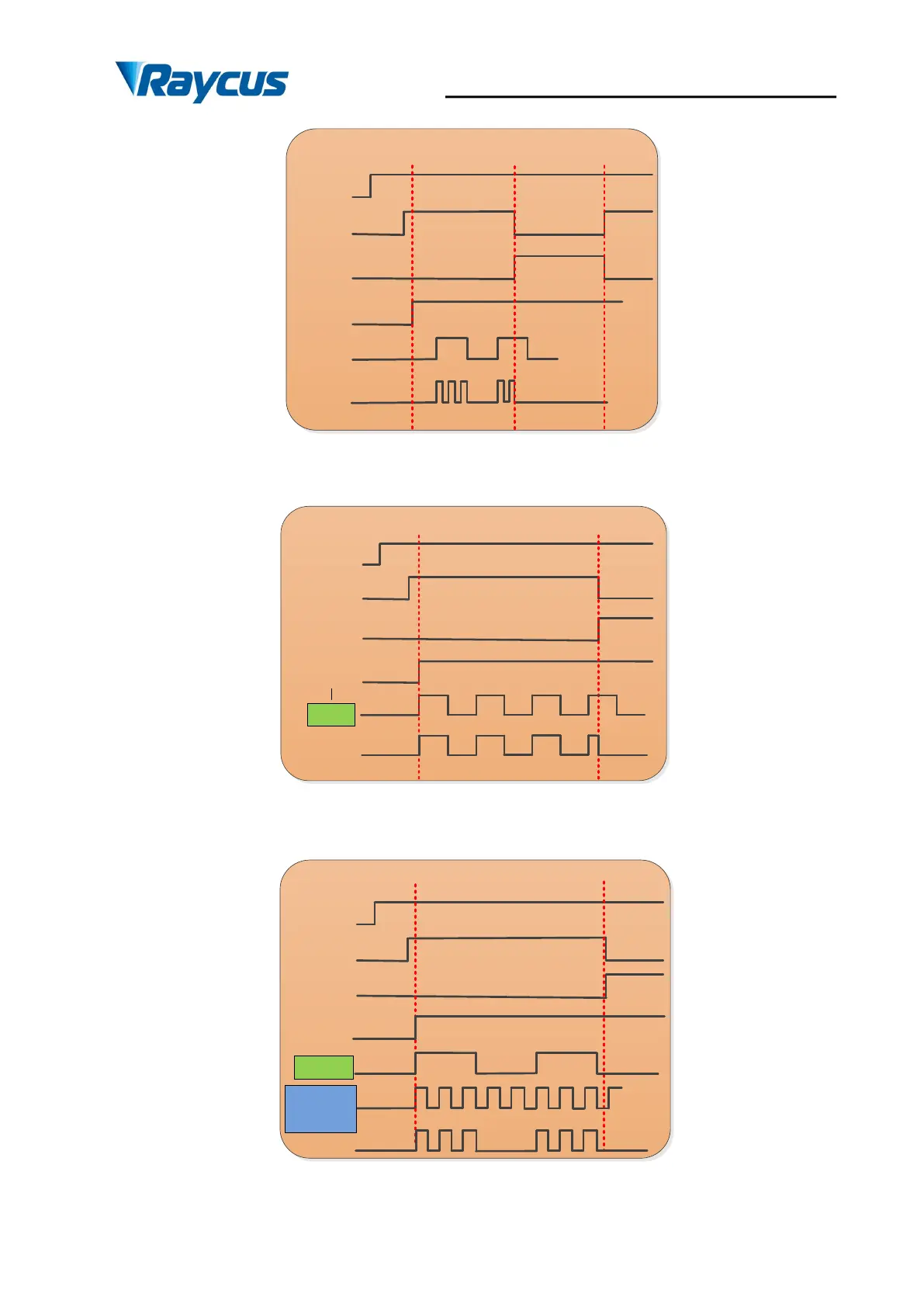

Figure 28 Control sequence diagram of Pulse mode
Modulation Mode——internal pluse duty=100%
power
ready
ALARM
Laser on
/EMON,EMOFF
/DB25Pin6、9脚
MOD
laser
>10s
>1ms
Figure 29 Control sequence diagram of modulation mode
Gate Mode——internal pluse duty<100%
power
ready
ALARM
MOD
激光
Internal
pluse
duty=50%
>10s
>1ms
Laser on
/EMON,EMOFF
/DB25 Pin6-9
Figure 30 Control sequence diagram of Gate mode
