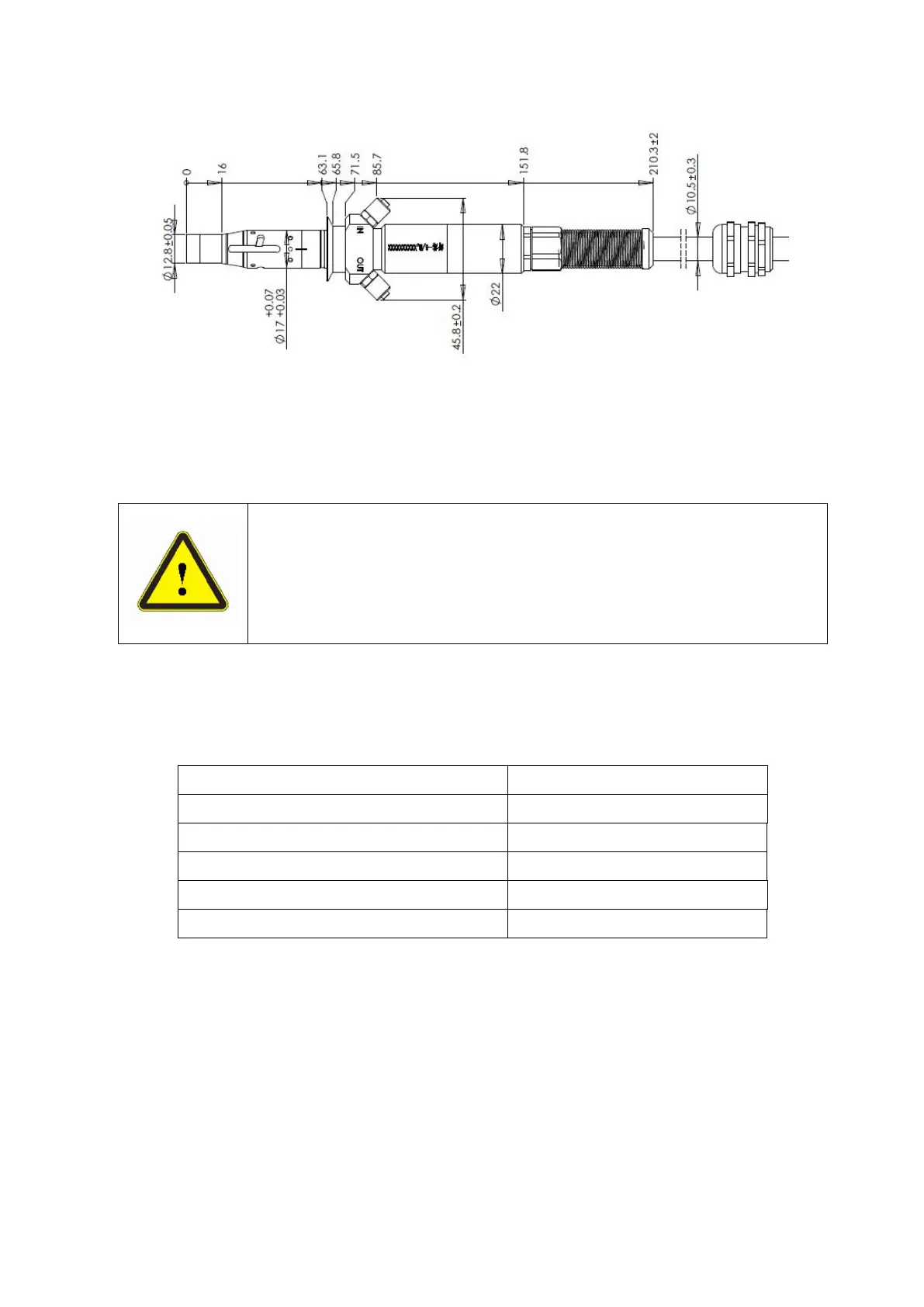

Figure 4bDimensions of iQB Output Head
The QBH and iQB laser output head of RFL-C3000S are all thestandard QBH interface.The
specific appearance and dimensions are shown in Figure 3 above.
CAUTIONS:
 Inspect the output lens before installing the output head to the
processing head. Clean the output lens if necessary.
 It is strictly prohibited to disassemble the output head by personnel not
approved by Raycus, or the warranty is void.
3.3 Cooling Requirements
Table 7 Cooling Requirements
Model
RFL-C3000S
Cooling Capability(W)
>10000
Minimum Flow(L/min)
22
Maximum Pressure(Bar)
7
Pipe Inner Diameter(mm)
19
Water temperature of coolingsystem (
℃
)
22
±
1
℃
1) The water temperature setting of cooling system:
22±1℃（RFL-C3000S）
2) Cooling water requirements:
 It is recommended to use purified water.
 In order to prevent mould growing that may lead to pipe blockage, we recommend to add
alcohol about 10% of the total volume.
