24

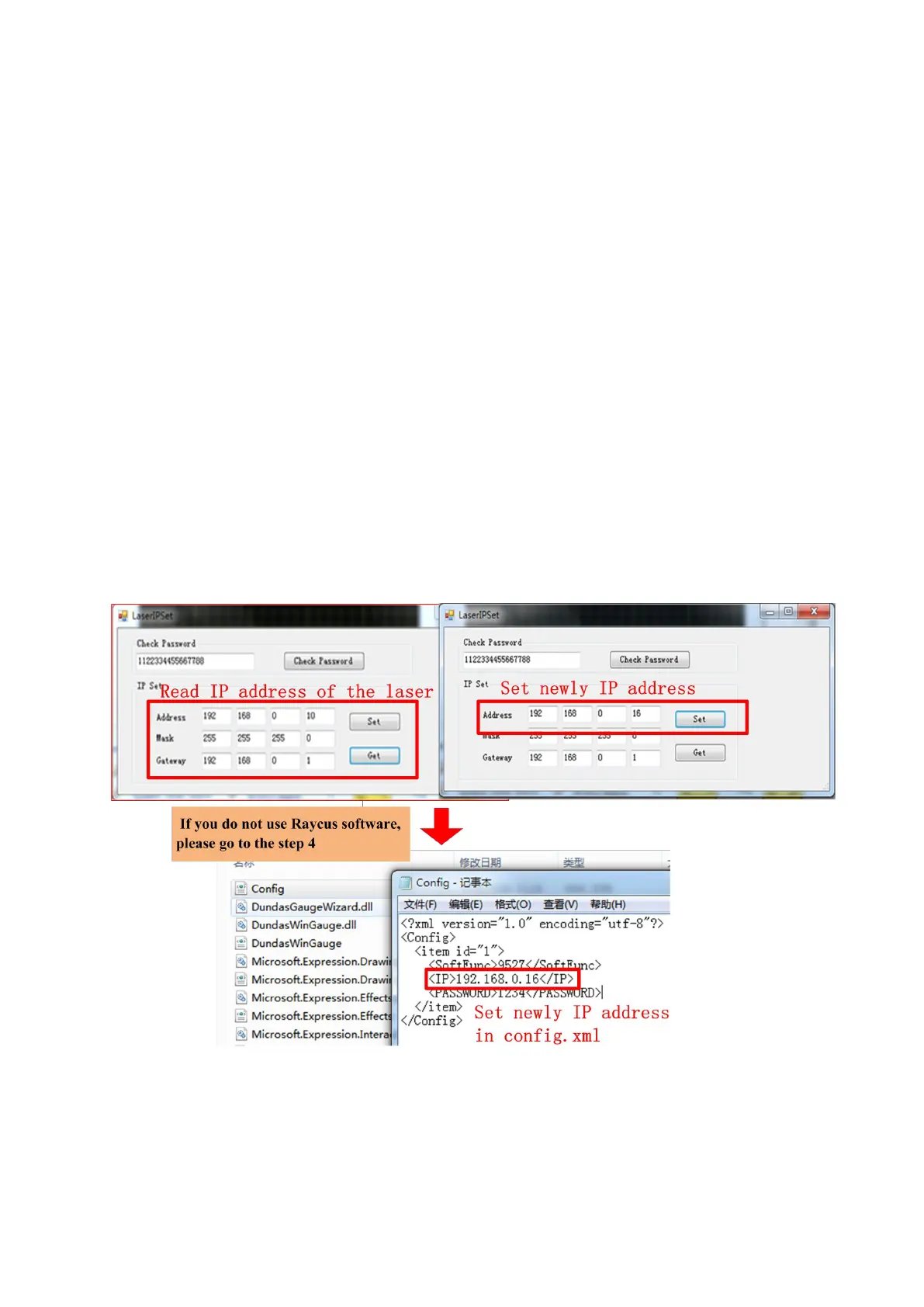

Step 1: Open the RaycusPC software, click "Session→RS232 (or Ethernet)" to make the PC
communicate with the laser, and then click "Tool→Laser IP Set" to enter the laser IP
address setting;
Step 2: The default password is "1122334455667788". After the verification is passed, read or
set the new laser IP address;
Step 3: If you use Raycus software to control the laser, you need to find the folder where the
Raycus software is located, open the laser configuration file “config.xml”, and write the
newly laser IP address. If you do not use Raycus software, please go to step 4;
Step 4: Configure TCP/IP, select "Use the following IP address:", manually assign an IP
address, and the IP address of your computer must be in the same network segment as
the laser IP address, and assign a subnet mask address. The default is 255.255.255.0,
click the "OK" button to confirm the settings and exit.
