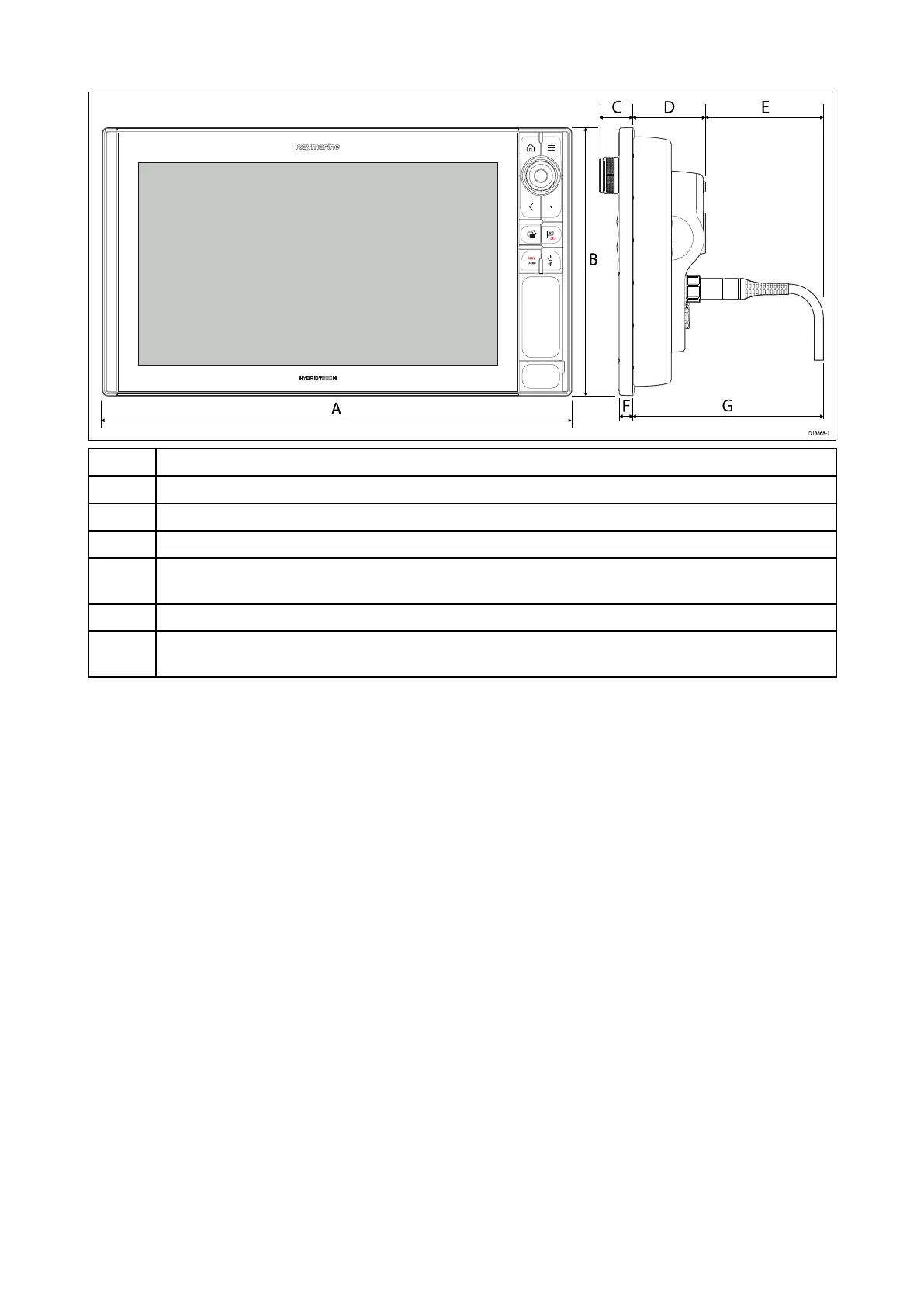

AxiomPro16dimensions
A
452.02mm(17 .8in)
B
258mm(10 .16in)
C
33.4mm(1.31in)
D
68.4mm(2.69in)
E
138.6mm(5.46in)straightconnector
118.6mm(4.67in)rightangledconnector
F
15.2mm(0 .6in)
G
207mm(8. 15in)straightconnector
187mm(7.36in)rightangledconnector
Installation
27
