Raynor COMMANDER 2000RGD - Repair Parts, Rail Assembly; Repair Parts, Installation

8
10
11
5
NOTICE
6
UP
CEILING MOUNT ONLY
7
1
4
3
2
LOCK
LIGHT
9
12
1
8
4
5
2 3
7
6

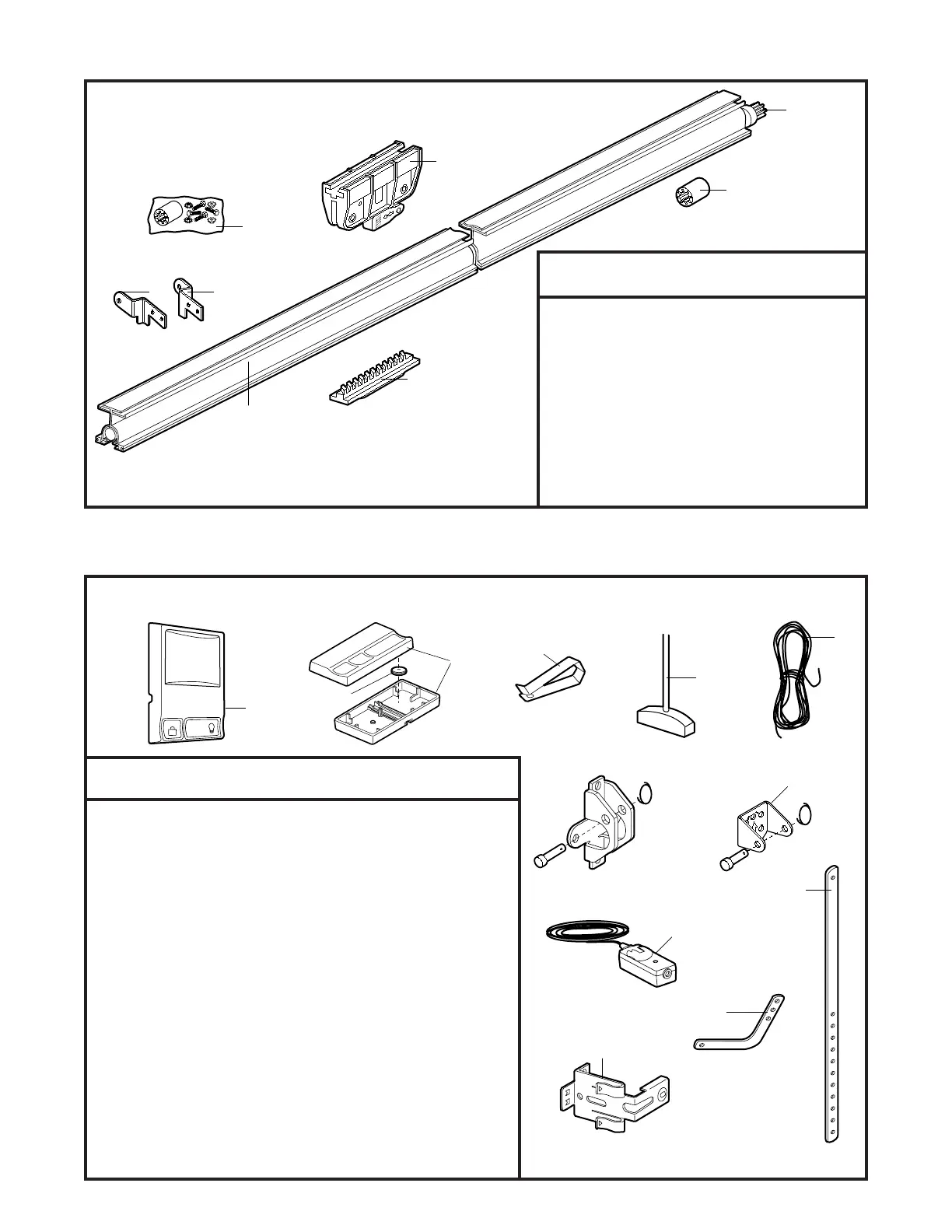

Rail Assembly Parts
Installation Parts
32
KEY PART
NO. NO. DESCRIPTION
1 41A4795 Hardware bag (Includes
sprocket coupling)
2 12B569-1 Left rail bracket
3 12B569-2 Right rail bracket
4 81C168 Rack
5 41C4677 Complete trolley
assembly
6 1D4828-1 One-piece T-rail
7 41A4836 Drive sprocket kit
8 25A18 Sprocket coupling
KEY PART
NO. NO. DESCRIPTION
1 41A5273-6 Multi-function door control panel
2 41A5056-3RGD 3-Channel remote control housing
(no circuit board)
3 10A20 3V2032 Lithium battery
4 29B137 Remote control visor clip
5 41A2828 Manual release rope & handle assy.
6 217A238 2-Conductor bell wire -
white & white/red
7 41A5047 Door bracket w/clevis pin & fastener
8 41A4353 Header bracket w/clevis pin & fastener
9 41A5034 Safety sensor kit (receiving and sending
eyes with 3' 2-conductor bell wire
attached)
10 178B34 Straight door arm section
11 178B35 Curved door arm section
12 12D584-1 Safety sensor brackets (2)
NOT SHOWN
41A4675-7 Installation hardware bag (see page 3)
114A2282 Owner's manual
Repair Parts
