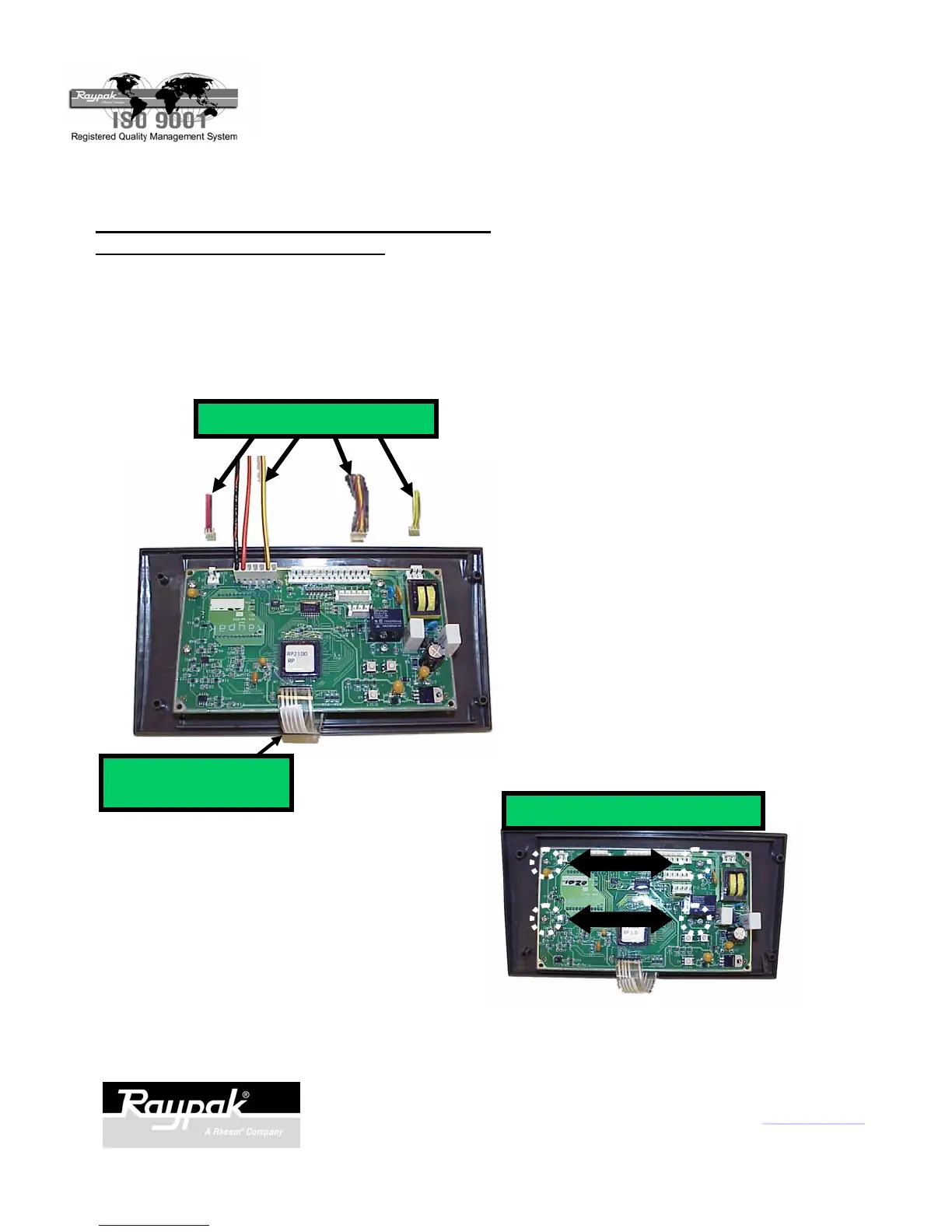

REMOVING THE CIRCUIT BOARD - MODELS
185A/B, 265A/B, 335A/B, 405A/B:
Make sure the power and gas are off.
1. Unplug all connectors from old circuit board. Fig. 7.
2. Unplug keypad ribbon from old circuit board.
3. Remove four screws as shown in Fig. 8.
4. Remove old circuit board.
Fig. 7
2.2
UNPLUG ALL CONNECTORS
REMOVE KEYBOARD
RIBBON
Fig. 8
2151 Eastman Ave., Oxnard, CA 93030 805-278-5300 Fax 800-777-7026 www.raypak.com
Technical support is available M-F, 5:30 AM to 5:00 PM PST, at 800-947-2975 or 800-627-2975
Page 3
REMOVE MOUNTING SCREWS
P/N 241169 Rev.-3
