FLORIDA AND TEXAS HURRICANE TIE-DOWN METHOD
0#(,*'*",)(!.,-
1*),.+
19-5/8”
27-1/4”
32-1/2”
3” Min. Conc.
Pad by others
3” Min. Conc.
Pad by others
Min. Edge
Distance
Min. Edge
Distance

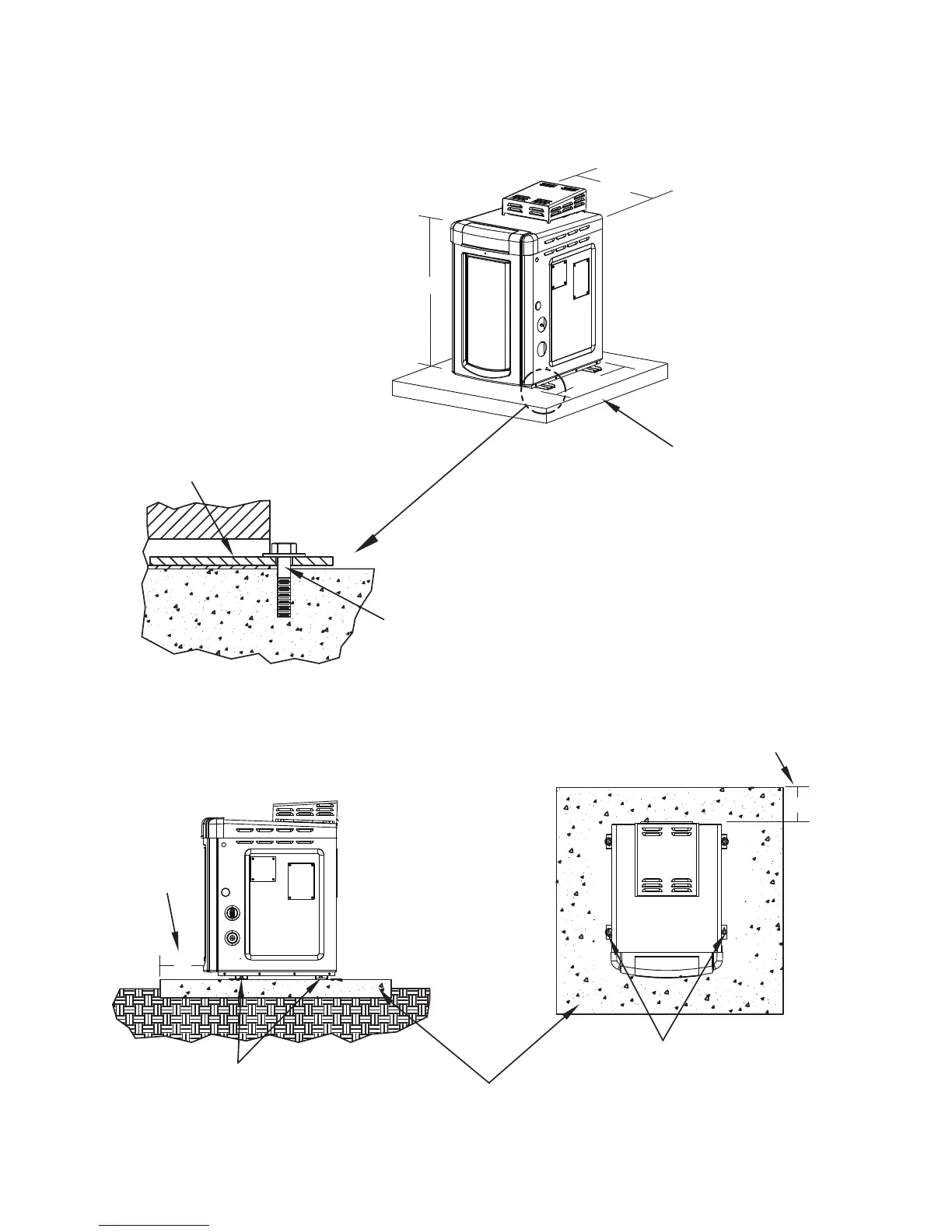

(1)–1/4” x 1-3/4” S.S. Tapcon Bolt & Washer (Field Supplied)
Ea. Pallet Anchor Bracket
Use hole closest to unit (4 total)
(1)–1/4” x 1-3/4” S.S. Tapcon Bolt & Washer (Field Supplied)
Ea. Pallet Anchor Bracket
Use hole closest to unit (4 total)
2” x 6” x 1/8” Pallet
Anchor Bracket (4 Total) (Kit# 011636)
1/4” x 1-3/4” S.S. Tapcon Bolt & Washer (Field Supplied)
NOTE: Use hole closest to unit with
washer overlapping edge of unit.
6”
6”

Raypak B-R259 Specifications

General

Model	B-R259
Type	Gas Heater
Fuel Type	Natural Gas or Propane
Heat Exchanger	Copper
Ignition Type	Electronic
Voltage	120V
Water Connection	2"
Efficiency	82%
