13
5B. Wheel removal Procedure.
Occasionally the wheels need to be replaced when worn out. The front and rear wheels
are identical and can be interchanged. The only difference is how the wheels attach. The
rear wheels are keyed to the rear axle, while the front wheels have bearings (608ZZ =
standard skateboard bearings).

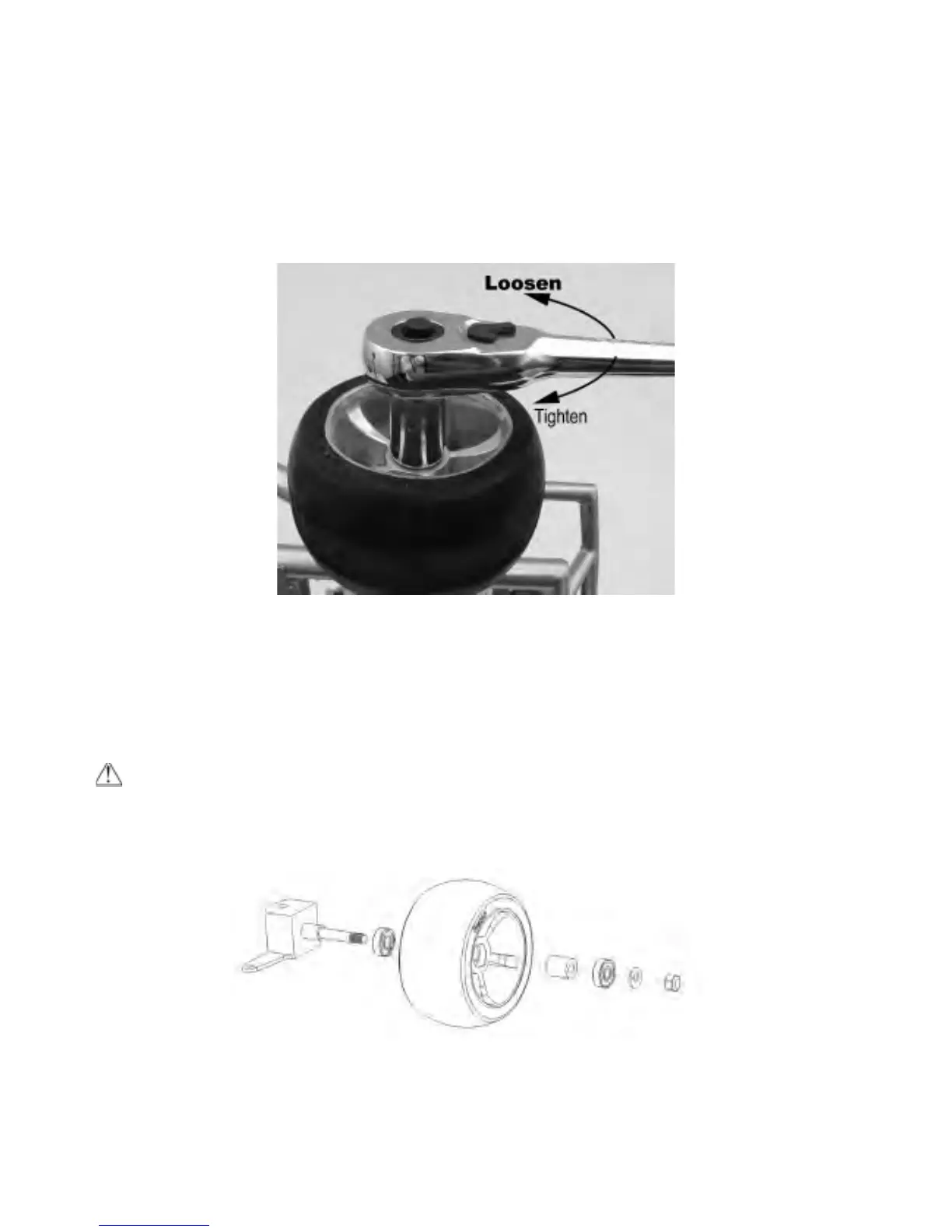

5B1. To remove a wheel, loosen and remove the self-locking nut (13mm socket or wrench
required for the front wheels; 17mm socket or wrench required for the rear wheels). Tap
the wheel to remove.
Figure 9.
5B2. To replace a front wheel, make sure the bearings are seated and the center spacer
is installed. Position the wheel so the Razor logo is toward the outside. Install the washer
and tighten the self-locking nut securely. Refer to Figure 10 for assembly detail.
NOTE: The Razor logo on the rubber tread must face out.
Figure 10.
5B3. To replace a rear wheel, make sure the key is properly seated in the rear axle and
