This shows the trigger voltage for automatic charge termination of
NiMH and NiCd battery. The effective value ranges from 5 to 20mV per
cell .if the trigger voltage is set higher, there is a danger of overcharg-
ing the battery; if it is set lower, there is a possibility of premature ter-
mination. Please refer the technical specification of the battery.(NiCd
default:12mV, NiMH default:7mV)
The 3-pin port at left side is a temp. Port. You can use an optional tem-
perature probe to contact the surface of battery. You can set the max-
imum temperature at which the charger allow battery to reach during
charging. Once a battery reaches this temperature during charge, the
process will be terminated to protect the battery.
The battery is on the cyclic process of charge and discharge can often
become warm after charge or discharge period. The program can in-
sert a time delay to occur after each charge and discharge process to
allow the battery adequate time to cool down before being subjected to
the next process. The value ranges from 1 to 60 minutes.
When you start a charge process, the integral safety timer automati-
cally starts running at the same time. This is programmed to prevent
overcharge the battery if it proves to be faulty, or if the termination cir-
cuit cannot detect the battery full. The value for the safety timer should
be generous enough to allow a full charge of the battery .
-
8
-

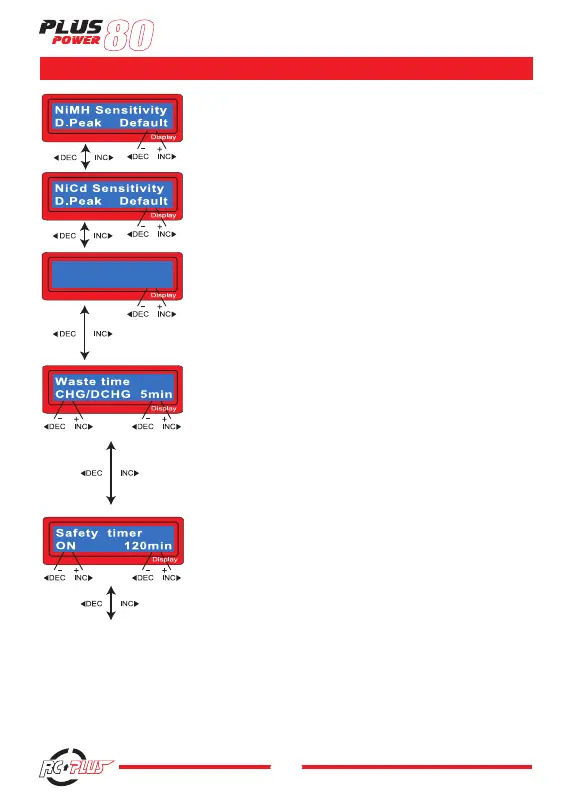

This shows the trigger voltage for automatic charge
termination of NiMH and NiCd battery. The effective
value ranges from 5 to 20mV per cell .if the trigger
voltage is set higher, there is a danger of overcharging
the battery; if it is set lower, there is a possibility of
premature termination. Please refer the technical
specification of the battery.(NiCd default:12mV, NiMH
default:7mV)
The battery is on the cyclic process of charge and
discharge can often become warm after charge or
discharge period. The program can insert a time delay
to occur after each charge and discharge process to
allow the battery adequate time to cool down before
being subjected to the next process. The value ranges
from 1 to 60 minutes.
When you start a charge process, the integral safety
timer automatically starts running at the same time.
This is programmed to prevent overcharge the battery
if it proves to be faulty, or if the termination circuit
cannot detect the battery full. The value for the safety
timer should be generous enough to allow a full charge
of the battery .
Temp Cut-Off 80 C
Safety Temp
The 3-pin port at left side is a temp. Port. You can use
an optional temperature probe to contact the surface of
battery. You can set the maximum temperature at
which the charger allow battery to reach during
charging. Once a battery reaches this temperature
during charge, the process will be terminated to protect
the battery.
