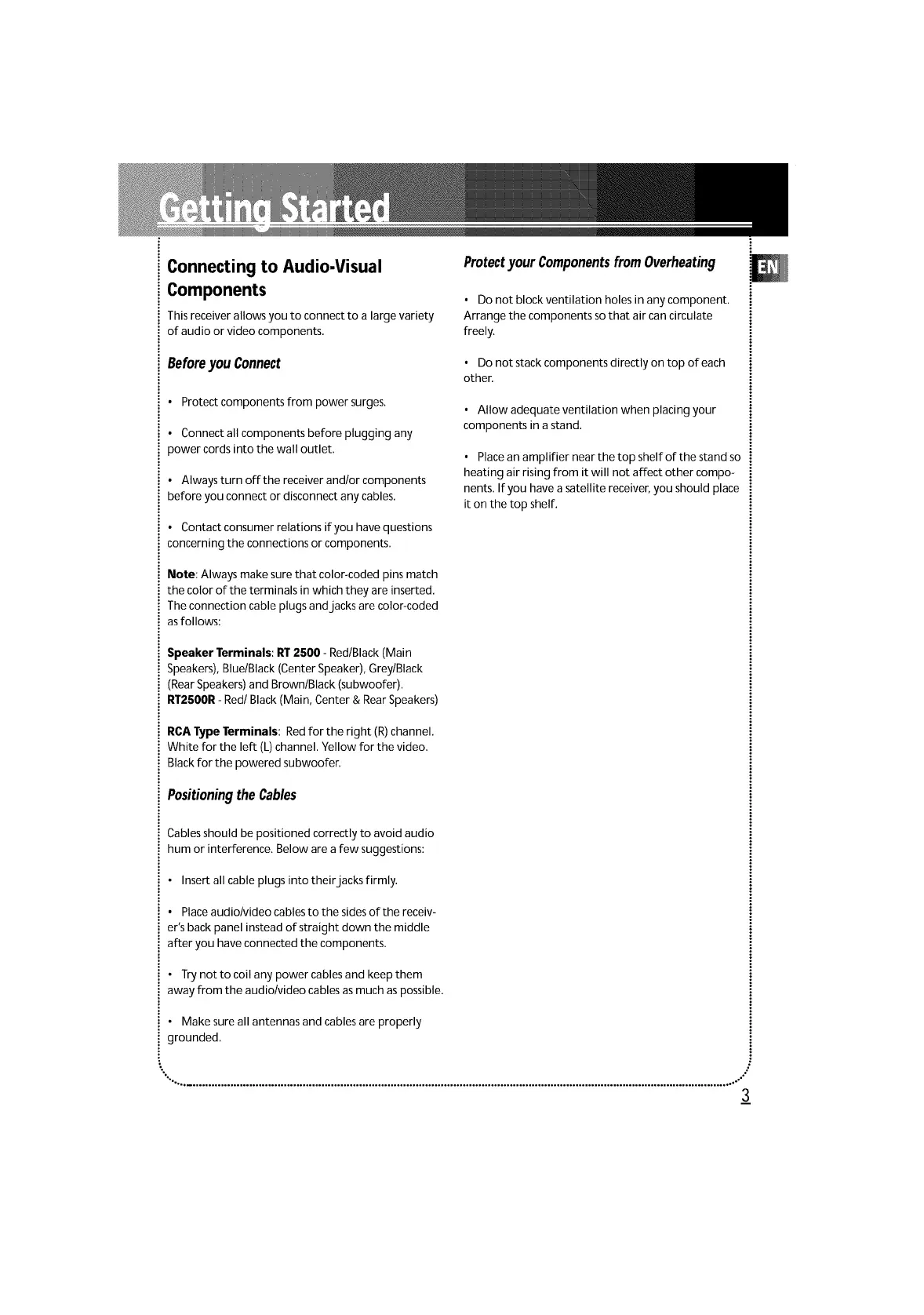

Connecting to Audio-Visual
Components
Thisreceiver allows you to connect to a large variety
of audio or video components.
Beforeyou Connect
• Protect components from power surges.
• Connect all components before plugging any
power cords into the wall outlet.
• Always turn off the receiver and/or components
before you connect or disconnect any cables.
• Contact consumer relations if you have questions
concerning the connections or components.
Note: Always make sure that color-coded pins match
the color of the terminals in which they are inserted.
The connection cable plugs and jacks are color-coded
as follows:
Speaker Terminals: liT 2500- Red/Black (Main
Speakers), Blue!Black (Center Speaker), Grey/Black
(RearSpeakers) and Brown/Black (subwoofer).
liT2500R - Red/Black (Main, Center & Rear Speakers)
liCA Type Terminals: Red for the right (R) channel.
White for the left (L)channel. Yellow for the video.
Blackfor the powered subwoofer.
PositioningtheCables
Cables should be positioned correctly to avoid audio
hum or interference. Below are a few suggestions:
• Insert all cable plugs into their jacks firmly.
• Placeaudio/video cables to the sides of the receiv-
er's back panel instead of straight down the middle
after you have connected the components.
• Try not to coil any power cables and keep them
away from the audio/video cables as much as possible.
• Make sure all antennas and cablesare properly
grounded.
Protectyour Componentsfrom Overheating
• Do not block ventilation holes in any component.
Arrange the components so that air can circulate
freely.
• Do not stack components directly on top of each
other.
• Allow adequate ventilation when placing your
components in a stand.
• Placean amplifier near the top shelf of the stand so
heating air rising from it will not affect other compo-
nents. If you have asatellite receiver, you should place
it on the top shelf.
•-................................................................................................................................................................................ °-o"
3_
