EN
5

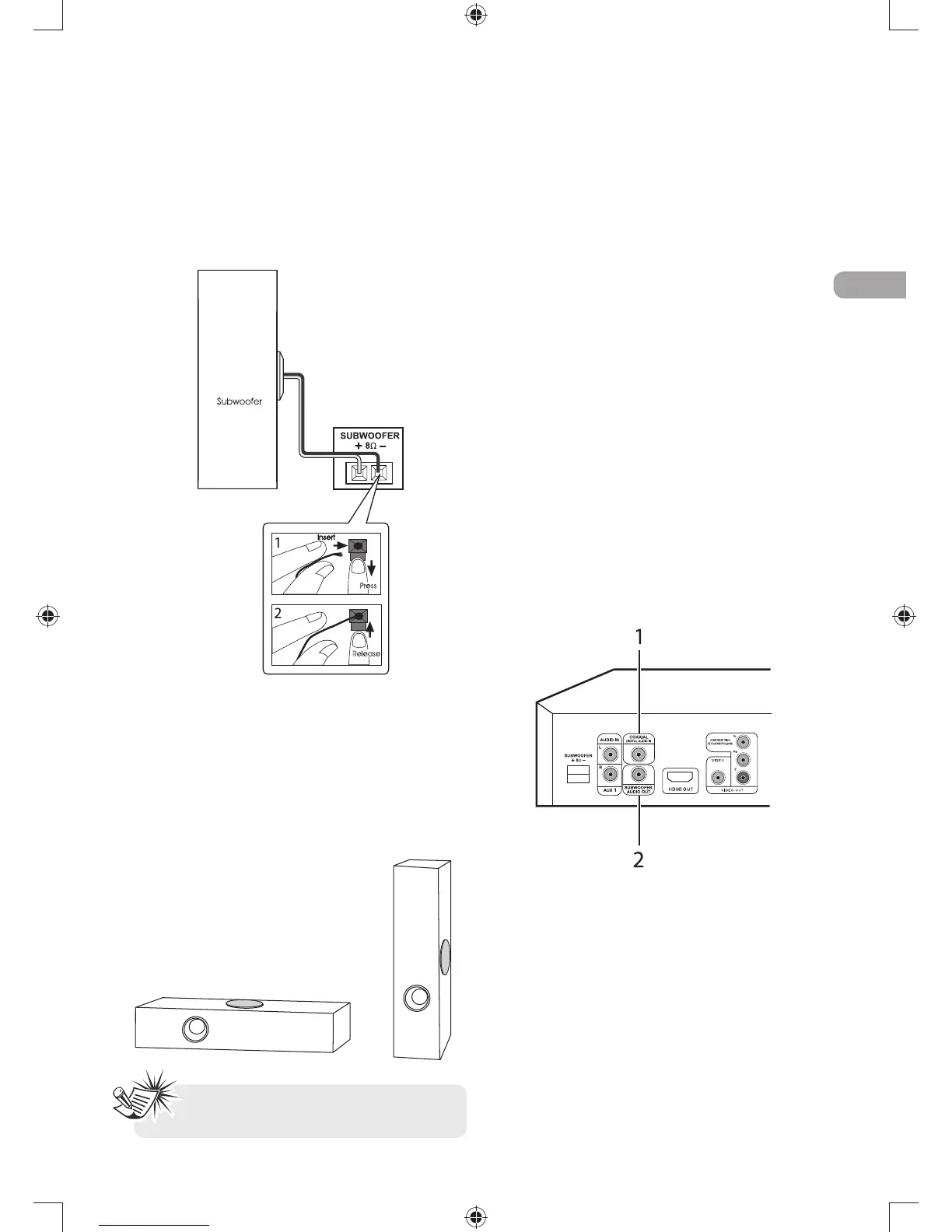

Connecting the subwoofer
Press down the tab to open the terminal and insert
the subwoofer speaker wire (included). Release
the tab to lock wire in the terminal.
Positioning the subwoofer
A subwoofer is designed to reproduce
POWERFULLOWBASSEFFECTSEXPLOSIONSTHE
rumble of spaceships, etc.).
It can be placed either vertically or horizontally.
For best effects, allow at least two inches of
clear space over the speaker driver and the
port hole.
Note: It is not recommended to place
the subwoofer near the TV set.
Other connection options
There are several ways in which you can
incorporate your unit into an Audio-Video
system. This depends on the sockets and other
appliances you have. Sound and image quality
DEPENDTOALARGEEXTENTONTHETYPESOF
connections used.
1. Coaxial Digital Audio Input
4HECOAXIALDIGITALAUDIOINPUTACCEPT$OLBY
Digital (AC-3) or PCM signals when compatible
components are connected. Typical compatible
devices include DVD players, Cable or Satellite
SETTOPBOXES
2. Subwoofer Audio Out
To furthur enhance bass effects, connect another
powered subwoofer (not supplied) by connecting
an RCA cable (not supplied) from SUBWOOFER
AUDIO OUT to the powered subwoofer. If you
connect another powered subwoofer, you must
disconnect the supplied subwoofer speaker to
avoid interference.
