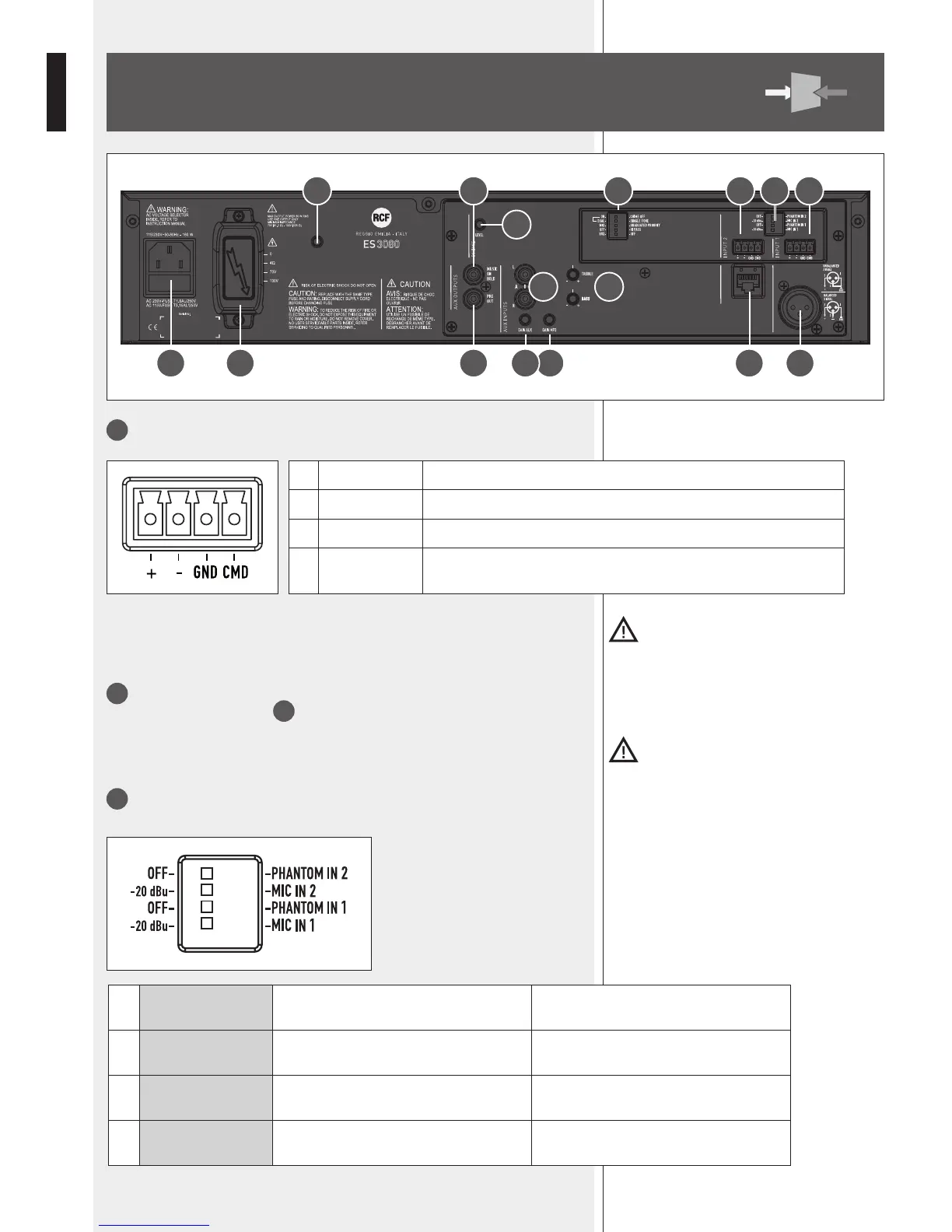

RCF ES 3080 - Rear Panel; Balanced Audio Input Connections; MIC-LINE Input Settings

8
ENGLISH
10
Balanced audio input 1 (removable connector).
Important: It Is necessary to eIther lInk the cmD pIn to grounD of the respectIve
removable connector or use the voX functIon to open the auDIo Input 1 (even when usIng
the Xlr plug for the auDIo sIgnal).
11
Balanced audio input 2 (removable connector).
See the ‘Balanced audio input 1’
10
.
Important: It Is necessary to eIther lInk the cmD pIn to grounD of the respectIve
removable connector or use the rJ 45 port prIorIty commanD to open the auDIo Input 2.
12
MIC-LINE input setting (inputs 1 and 2) through 4 dip-switches:
REAR PANEL
1 + Hot audio input
2 - Cold audio input
3 GND ground
4 CMD command: input on / priority access when connected to ground
1
OFF – PHANTOM
(IN 2)
OFF: input 2 phantom power is off.
PHANTOM 2:
input 2 phantom power is on.
2
-20 dBu – MIC
(IN 2)
-20 dBu:
input 2 sensitivity set to LINE (-20 dBu).
MIC 2:
input 2 sensitivity set to MIC.
3
OFF – PHANTOM
(IN 1)
OFF: input 1 phantom power is off.
PHANTOM 1:
input 1 phantom power is on.
4
-20 dBu – MIC
(IN 1)
-20 dBu:
input 1 sensitivity set to LINE (-20 dBu).
MIC 1:
input 1 sensitivity set to MIC.
A
Canovi
Manini
PL010775
ES 3080
15/05/14
1:1
15/05/14
UNI EN 22768-1
EN 22768-1
Manini
Canovi
A
Serigraa Frame
Frame Silk-Screen
Emissione documento/Production release
1
1
A termine di legge ci riserviamo la proprieta' di questo disegno con divieto di riproduzione e renderlo noto a terzi senza nostra autorizzazione scritta
ELETTROACUSTICHE
INDUSTRIE
QUOTE SENZA INDICAZIONE DI TOLLERANZA.
DIMENSIONS WITHOUT TOLLERANCE INDICATIONS.
GRADO DI PRECISIONE/ACCURACY
CODICE/PART NUMBER
MATRICOLA
OGGETTO MODIFICA/MODIFY OBJECT
CONTR.
CHECK
DISEGN.
DRAWN
DATA
DATE
N.
DISEGN.
DRAWN
CONTR.
CHECKED
DATA/DATE
Descrizione
Description
Materiale
Material
Tratt. TERMICO
HEAT treatment
Tratt. SUPERFICIALE
SURFACE treat.
FOGLIO/SHEET FOGLI/SHEETS
SCALA/SCALE
Vedi Note
See Notes
Vedi Note / See Notes
Vedi Note / See Notes
NOTES:
NOTE:
- Serigrafare colore BIANCO.
- Silk-screen printing color WHITE.
- Dimensioni Pannello
- Panel Dimension
430
86
80W AUDIO SOURCE
& MIXER AMPLIFIER
19 16 14 1323
25 20 21 11 1012
22
17 15
24 18
