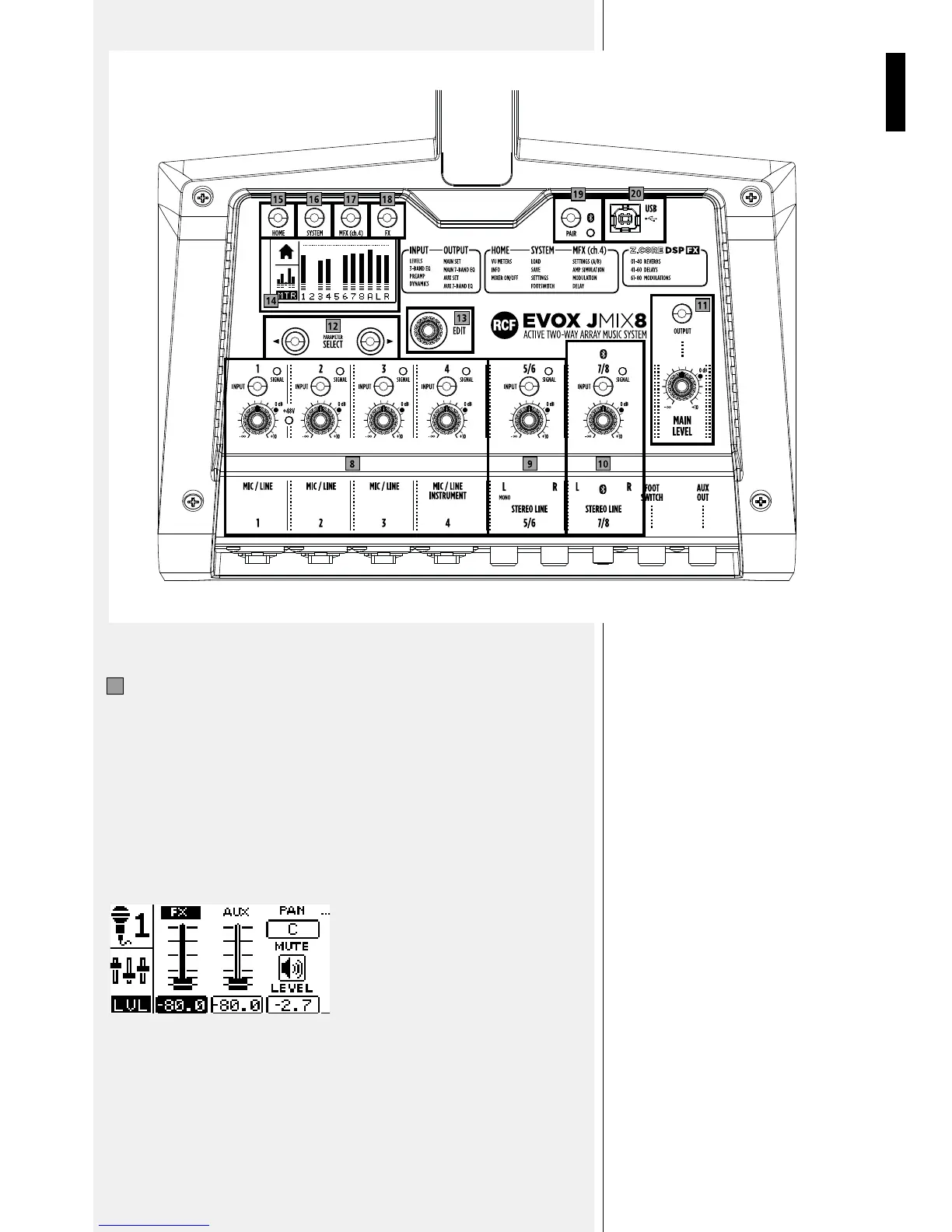

MONO input channels; the MIC/LINE 1 to 4 input channels provide a level knob and

an INPUT button. The small yellow point named 0dB indicates the “unity gain” level

of the channel. The SIGNAL LED lights up in green when a signal louder than -40dB is

applied to the input. The red LED located between the channels 1 and 2 knobs indicates

that the +48V phantom power is activated on those channels (see section 16). Pressing

the HOME button (15) the METER page will open showing the level metering of signal

inputs and outputs. The INPUT button, repeatedly pressed, gives access to the four

available display parameters pages (14). The number on the display upper left corner

indicates which input channel is being edited.

INPUT Menus for mono channels:

Page LVL

LEVELS (LVL): this menu page gives access to FX send and AUX send levels for the

speciﬁed input. PAN and channel MUTE controls are shown on the right side. The small

rectangular boxes on the bottom line, from left to right, indicate the absolute levels of FX

send, AUX send and Channel Level.
