Page EQ

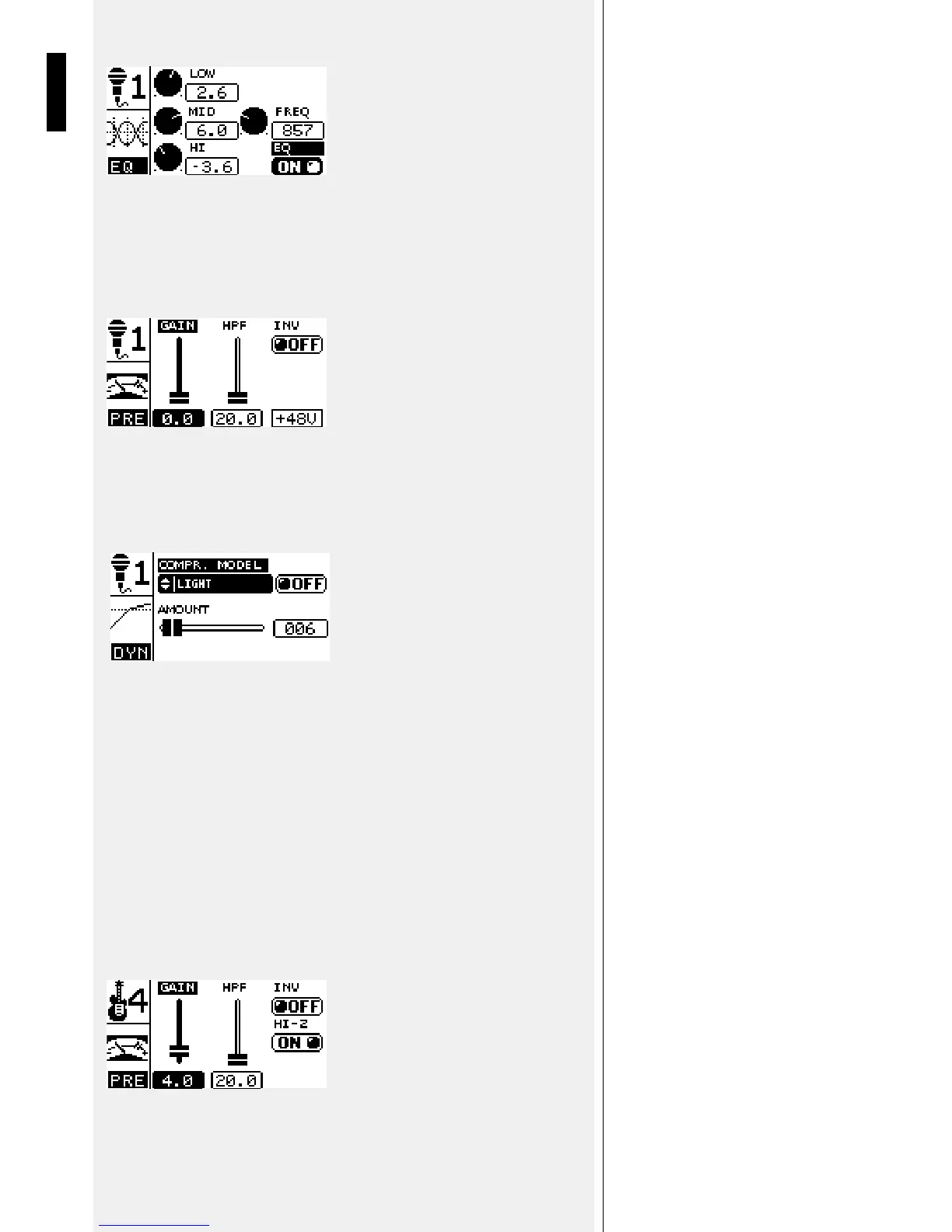

EQUALIZATION (EQ): this menu page gives access to EQ parameters; every input channel
is provided with a three band EQ: LOW and HIGH bands are +/-12dB shelving EQs
with reference frequency at 125Hz and 6.0kHz. The MID BAND EQ provide selectable
frequency from 50Hz to 12kHz and +/-12dB gain. A global EQ ON/OFF control is
available on the lower right.
Page PRE
PREAMP GAIN (PRE): an input GAIN parameter allows to add up to 30dB to the input
signal. HPF performs a selectable High Pass Filter from 20Hz to 1kHz. INV ON/OFF
permits to invert the polarity of the input signal. In the channel 1 and 2 PRE pages a
dedicated box indicates the activation of +48V phantom power (see section 16).
Page DYN
DYNAMIC (DYN): COMPRESSOR; MIC/LINE inputs 1 to 4 are provided with a single
control compressor. The cursor indicates the depth of the compressor intervention. A
dedicated box toggles the compressor ON and OFF. Up to 6 different presets can be
selected from the Compressor Model list:
1. LIGHT
2. HEAVY
3. VOCAL
4. BASS
5. ACOUSTIC
6. DRUM
LINE input 4 is provided with selectable Hi Impedance input, which is available for
passive instruments such as guitars or bass guitars. The instrument connected to Line
input 4 can also take advantage of the MFX section (see dedicated chapter 17). Page PRE
for LINE input 4 changes slightly:
Ch.4 LINE IN Page PRE
A dedicated box, labeled HI-Z, allows to activate and deactivate the High Impedance
input on LINE 4: HI-Z ON/OFF.
