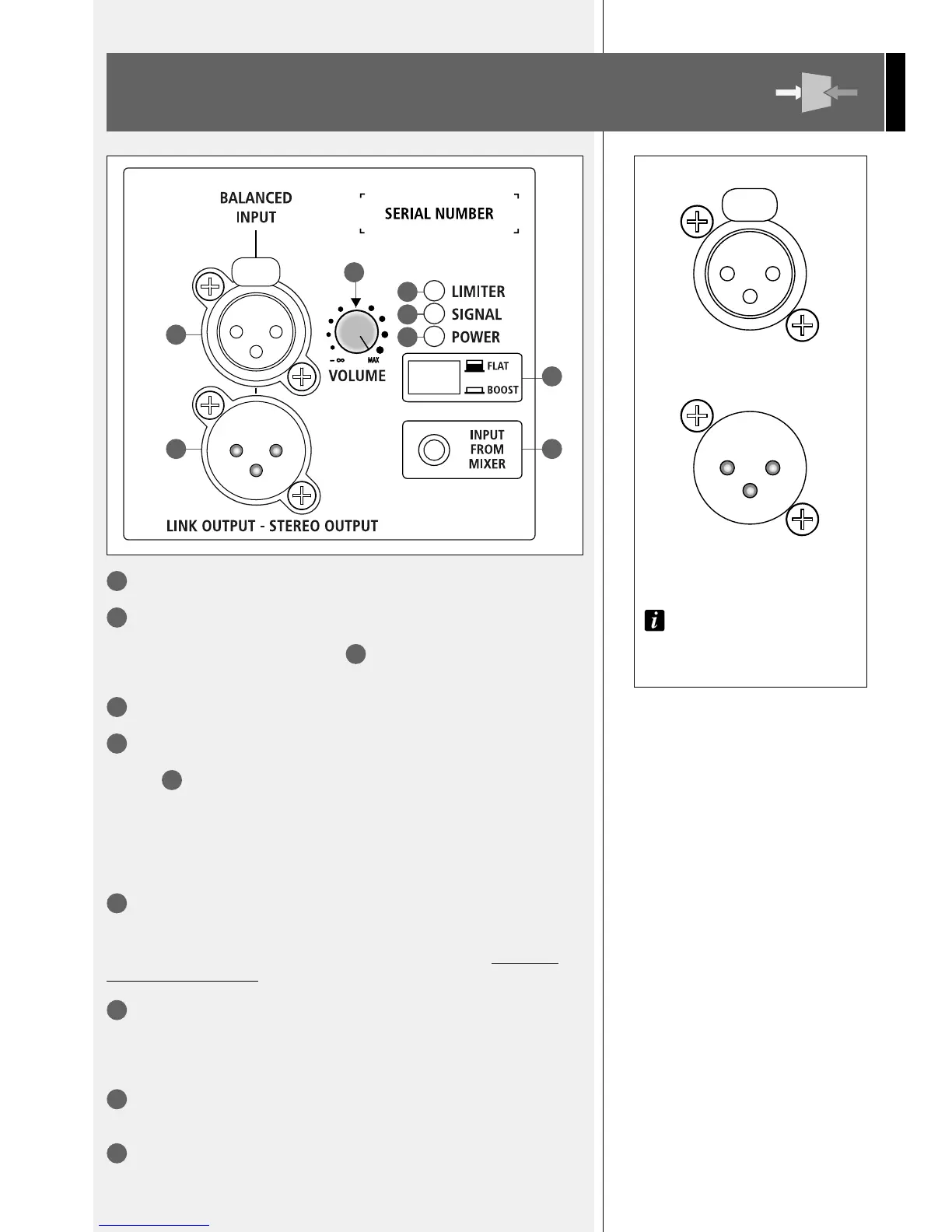

SUBWOOFER REAR PANEL
AND CONNECTIONS
1
Balanced audio input (female XLR connector)
2
Link output - Stereo Output (male XLR connector).
This output is linked in parallel with the audio input and is useful to connect another
speaker (only when the INPUT FROM MIXER
4
LED is off). Otherwise it works by
default as the mixer “R” output channel.
3
System volume control
4
INPUT FROM MIXER
When the LED is OFF, the digital mixer is disabled and the signal input is coming from the
XLR input
1
. In this case the male XLR output works as a regular parallel audio output.
When the LED is ON, the signal input is coming from EVOX JMIX8 digital mixer. In this
case, the male XLR output becomes by default the R output to an addictional EVOX J8.
(The mixer offers a function (SWAP LR) to swap the L-R output channels swapping them
to “R-L”;
See section 11 on the Digital Mixer Instruction Chapter).
5
FLAT / BOOST switch
FLAT (released switch, normal mode): no equalisation is applied (flat frequency
response).
BOOST (pushed switch): ‘loudness’ equalisation, only recommended for background
music at low volume levels.
6
LIMITER LED
The internal amplifier is provided with a limiter circuit to prevent clipping and overdriving
transducers. It blinks when the signal level reaches the clipping point, causing the limiter
intervention. If it is steady lit, the input signal level is excessive and should be reduced.
7
SIGNAL LED
When lit, it indicates the signal presence at the audio input.
8
STATUS LED
When blinking, it indicates the internal protection intervention due to thermal drift (the
amplifier then gets to a “mute” status).
Female XLR connector
PUSH
2 1
3
Male XLR connector
21
3
