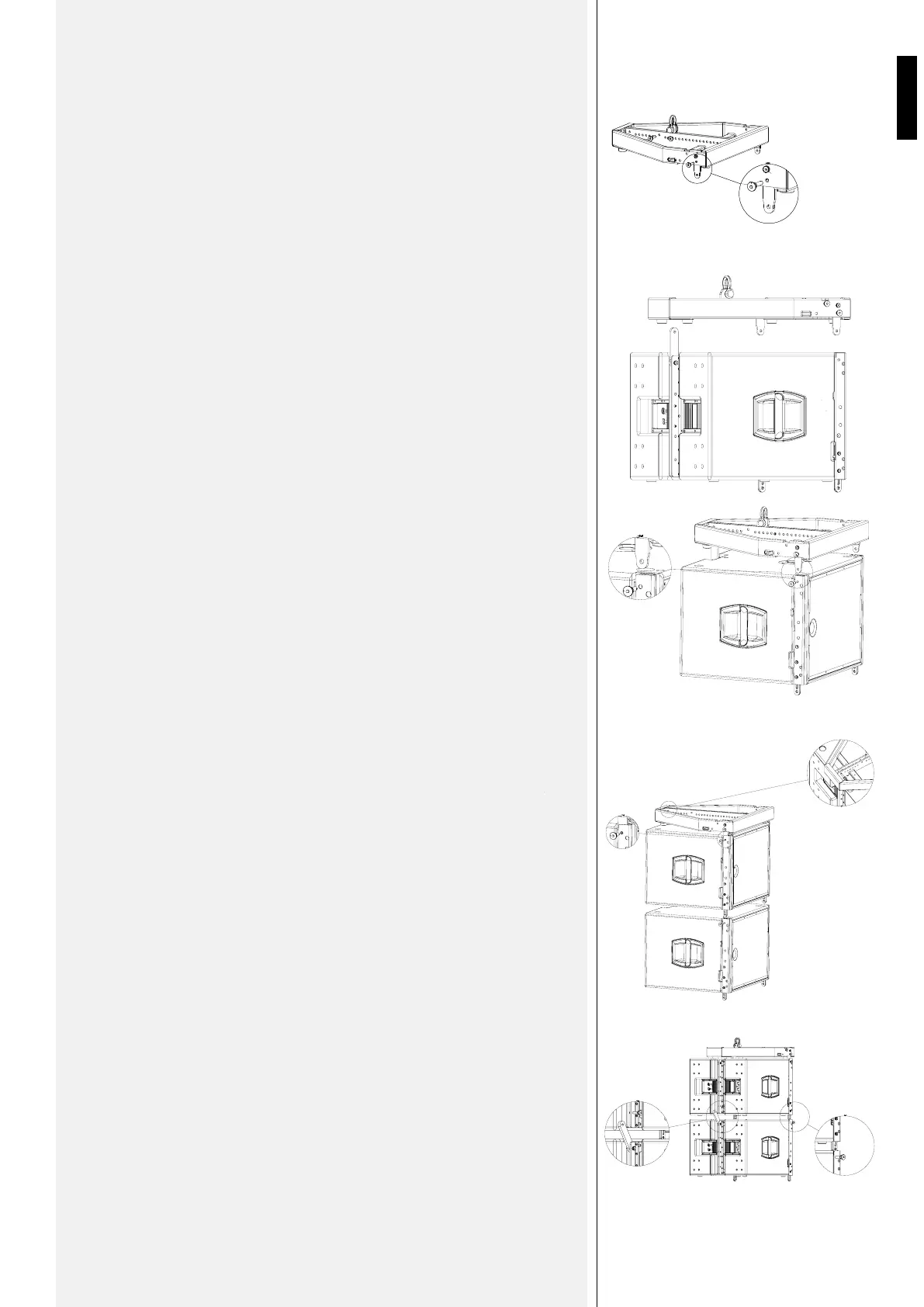

1) Connect the fly-bar F to the chain hoist H (o motors) using the certified shackle.
Secure the shackle.
2) Connect the second pin on the front bracket to make sure that the connecting bracket
is vertical.
3) Connect the front bracket to the first HDL18-A cabinet using 2 quick lock pins.
A
A (2:1)
4) Reverse and connect the rear bracket to the fly-bar using 1 quick lock pins.
The first HDL18-AS has to be fixed always starting at 0° with respect of the frame.
No other angles are allowded.
5) Connect the second cabinet to the first always starting from the 2 front brackets.
