RCF Shape Designer works in either of two basic ways:
- AUTOMATIC MODE (default setting): The RCF Shape Designer will select the optimum
enclosure splays, array aiming angle, fly-bar pick point and DSP preset configurations.
- MANUAL MODE: This provides a partial control over the array’s configuration. The enclosure
splays can be increased with a progression of 2° steps for each adjacent speaker, in order to
maintain a spiral array configuration. Then array aiming angle, and fly-bar pick point can be
entered manually by switching on Box1 + grid changeable and MANUAL H flags.

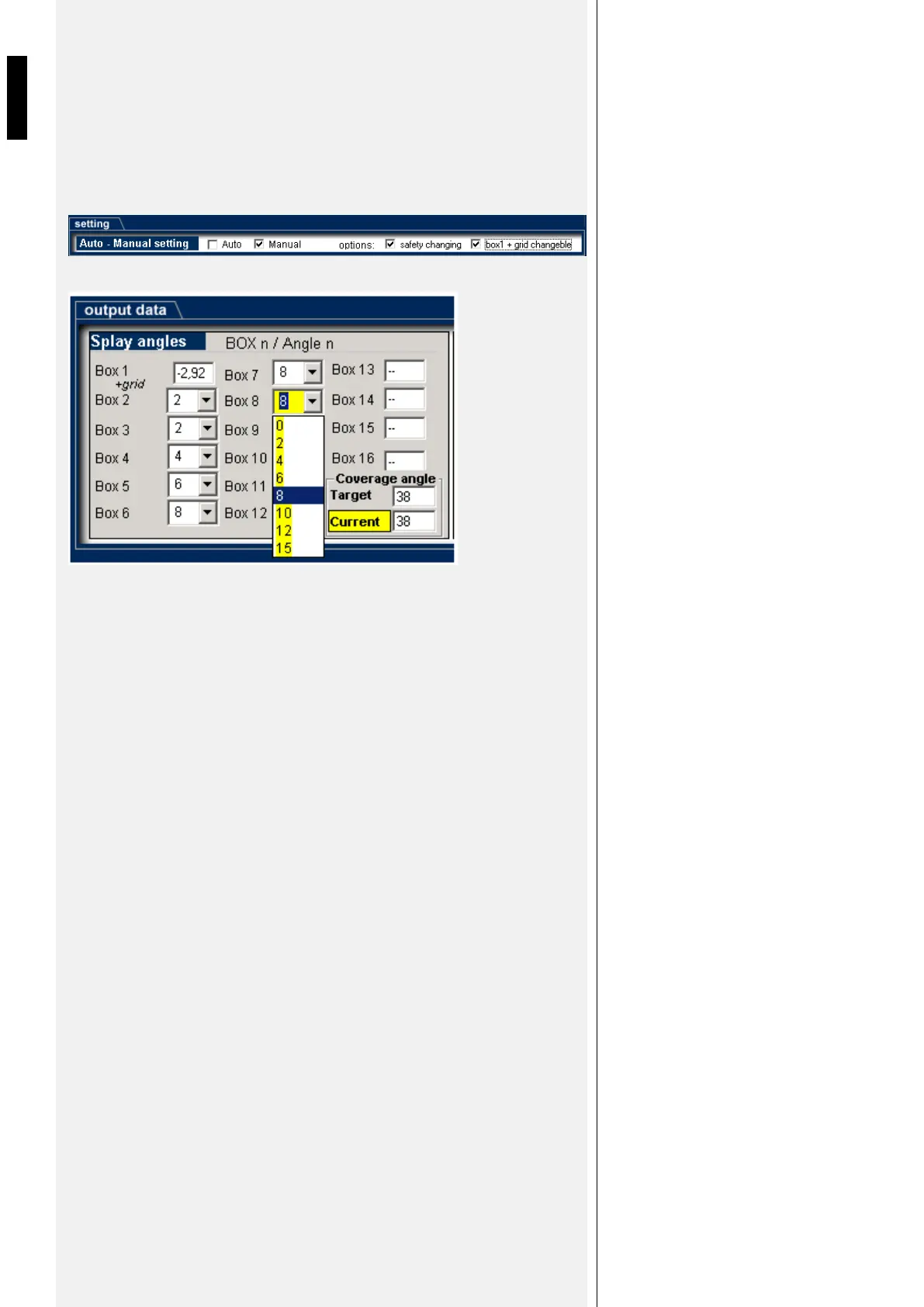

Array window: Manual splays setting
Angles manual changing
MANUAL MODE
