COOLING REQUIREMENTS
SPEAKON CONNECTOR WIRING
IPS ampliers have a forced air cooling system to maintain a low operating temperature.
Make sure there is enough space around the front of all ampliers (to allow air to enter)
and around to allow the heated air to exit. If ampliers are rack-mounted, do not use doors
or covers on the front and the rear of the rack cabinet(s).

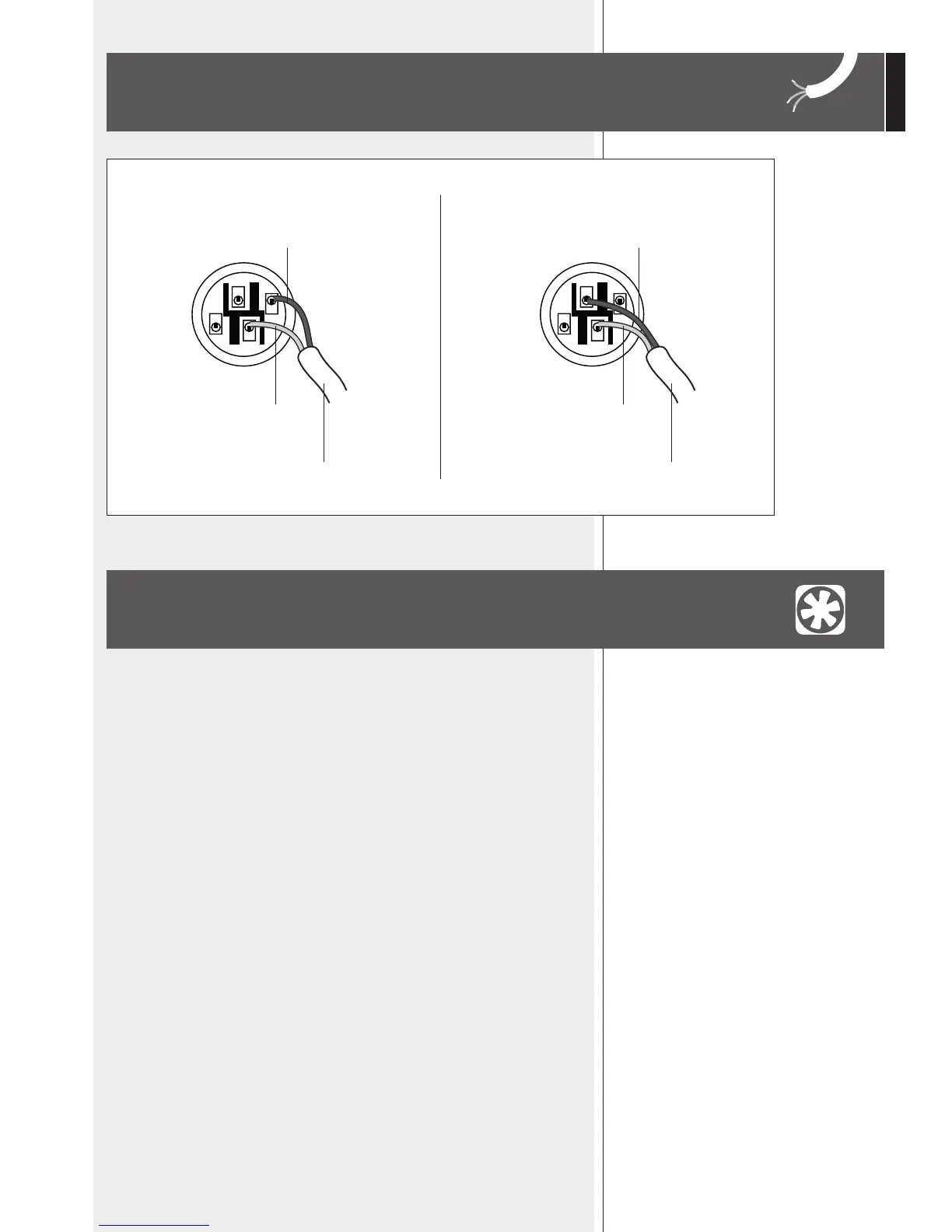

STEREO / PARALLEL (MONO) MODE
1+
2+
1–
2–
POSITIVE OUTPUT
TO SPEAKER
NEGATIVE OUTPUTSPEAKON
BRIDGE MODE
1+
2+
1–
2–
POSITIVE OUTPUT
TO SPEAKER
NEGATIVE OUTPUTSPEAKON
