CH 2 OUTPUT
Channel 2 output to loudspeakers (SPEAKON connector).
Do not use this output if the amplier is set to BRIDGE mode.
See both ‘Operation modes’ and ‘SPEAKON connector wiring’ manual sections.
15
Power cord input.
Connect the power cord only to a mains socket outlet with a protective earthing
connection.
16
RESET push-button
Push this button to (try to) reset the amplier when is muted due to the thermal
protection.

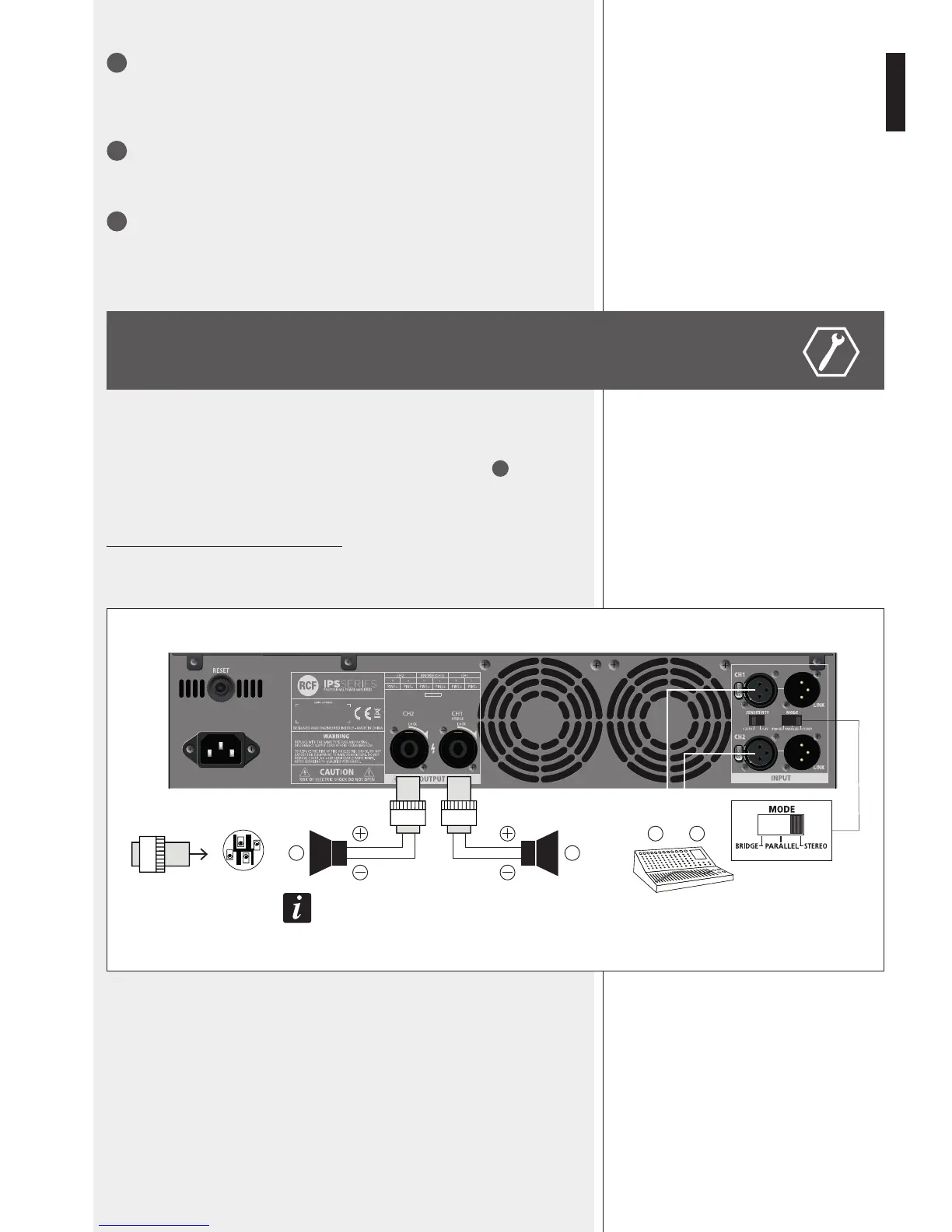

OPERATION MODES
STEREO MODE
Make sure the amplier is switched off before setting the MODE switch
11
to STEREO.
In stereo mode, both channels operate independently and each front panel level control
affects its respective output.
Minimum load impedance is 4 Ω per output.
Loudspeakers shall be connected to the outputs 1 (left channel) and 2 (right channel).
MIXER
L R
1+
2+
1–
2–
WARNING: TURN OFF THE AMPLIFIER
BEFORE CHANGING MODE!
1+
1–
1+
1–
LR
