SINGLE NX L23-A
The NX L23-A is a flexible speaker system that can be used in ground-supported or suspended applications. The following information will
help you set up your NX L23-A system safely and effectively.
POLE AND TRIPOD SAFETY WARNINGS
When using stands or poles, be sure to observe the following precautions:
- Check the stand or pole specification to be certain the device is designed to support the weight of the speaker. Observe all safety precautions
specified by the manufacturer.
- Be certain that the surface on which the system is to be stacked is flat, stable and solid.
- Inspect the stand (or pole and associated hardware) before each use and do not use equipment with worn, damaged, or missing parts.
- Do not attempt to place more than two NX L23-A loudspeakers on a stand or pole.
- When mounting two NX L23-A speakers on a pole or tripod, integral rigging hardware must be used to secure the speakers to each other.
- Always be cautious when deploying the system outdoors. Unexpected winds may topple a system. Avoid attaching banners or similar items
to any part of a speaker system. Such attachments could act as a sail and topple the system.
Usually, the LF SHAPE switch on the input
panel should be set to the 1 position and
the HF BOOST on LINEAR when a single
speaker is used.
1
LINEAR
LF SHAPE
1
2-3
4-5
6-8
HF BOOST
LINEAR
ARRAY
CLUSTER SIZE

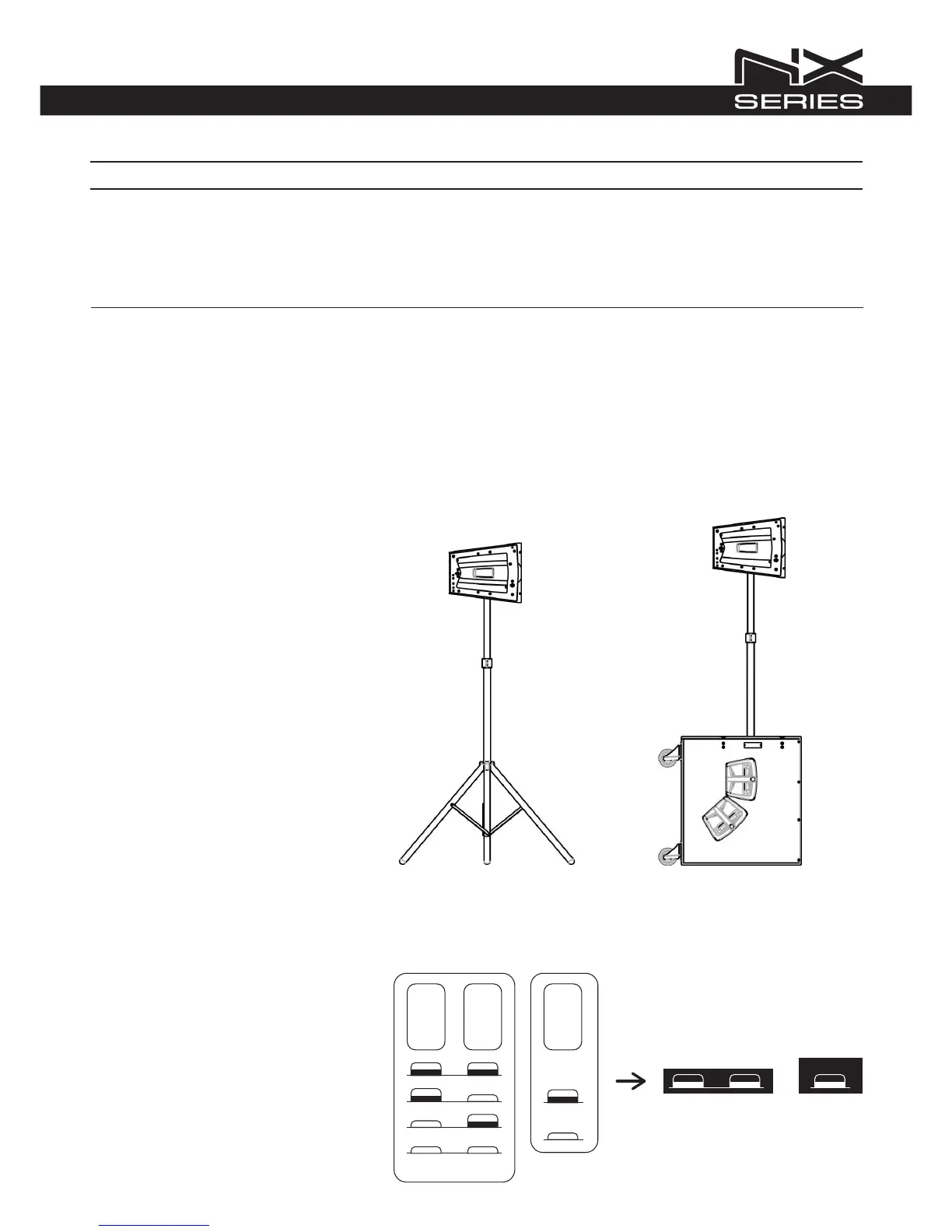

A single NX L23-A may be used on a tripod
stand (AC S260) or on a pole (AC PMA)
over its NX Series subwoofers. The use of
a subwoofer is recommended for
applications requiring more low-frequency
power and extension.
