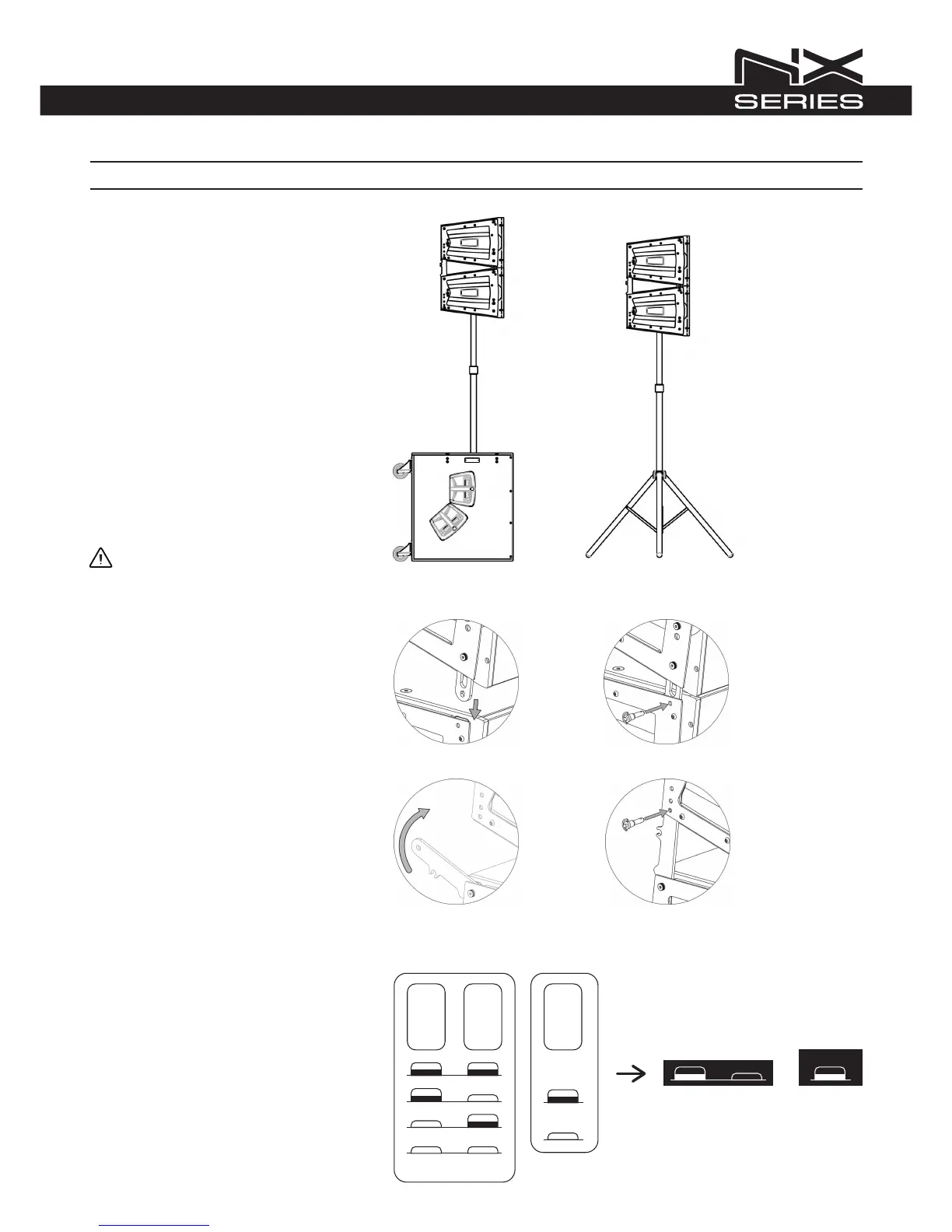

DOUBLE NX L23-A ON A STAND
The NX L23-A is designed so that a pair
of speakers may be safely mounted onto
a pole or tripod stand.
1) Place the speakers on the pole or
tripod one at a time. Be sure to lock the
two speakers together using its rigging
hardware.
Usually, the LF SHAPE switch on the
input panel should be set to the 2-3
position and the HF BOOST on LINEAR
when two speakers are used.
LINEAR
2-3
2) Connect the second cabinet to the
first starting from the 2 front brackets.
3) Reverse and connect the rear brackets
of the first cabinet using the hole for
the proper angle.
LF SHAPE
1
2-3
4-5
6-8
HF BOOST
LINEAR
ARRAY
CLUSTER SIZE
WARNING: The floor stand support
the full load of the part of the system
on top. It is very important that the
floor stand is certified for the total
weight on top.
