27
TTL33-A/TTL31-A RIGGING SYSTEM TTL33-A/TTL31-A FLOWN SYSTEM
WARNING
• Always make sure that each quick locking pin is properly entered in the right position and securely locked.
• Always make sure that rear left and right angle set-up are the same.
• Rigging the array, in any case, always lock the 2 front pins at first, then the 2 rear pins. Un-rigging the array, in any
case, always un-lock the 2 rear pins at first, than the 2 front pins.

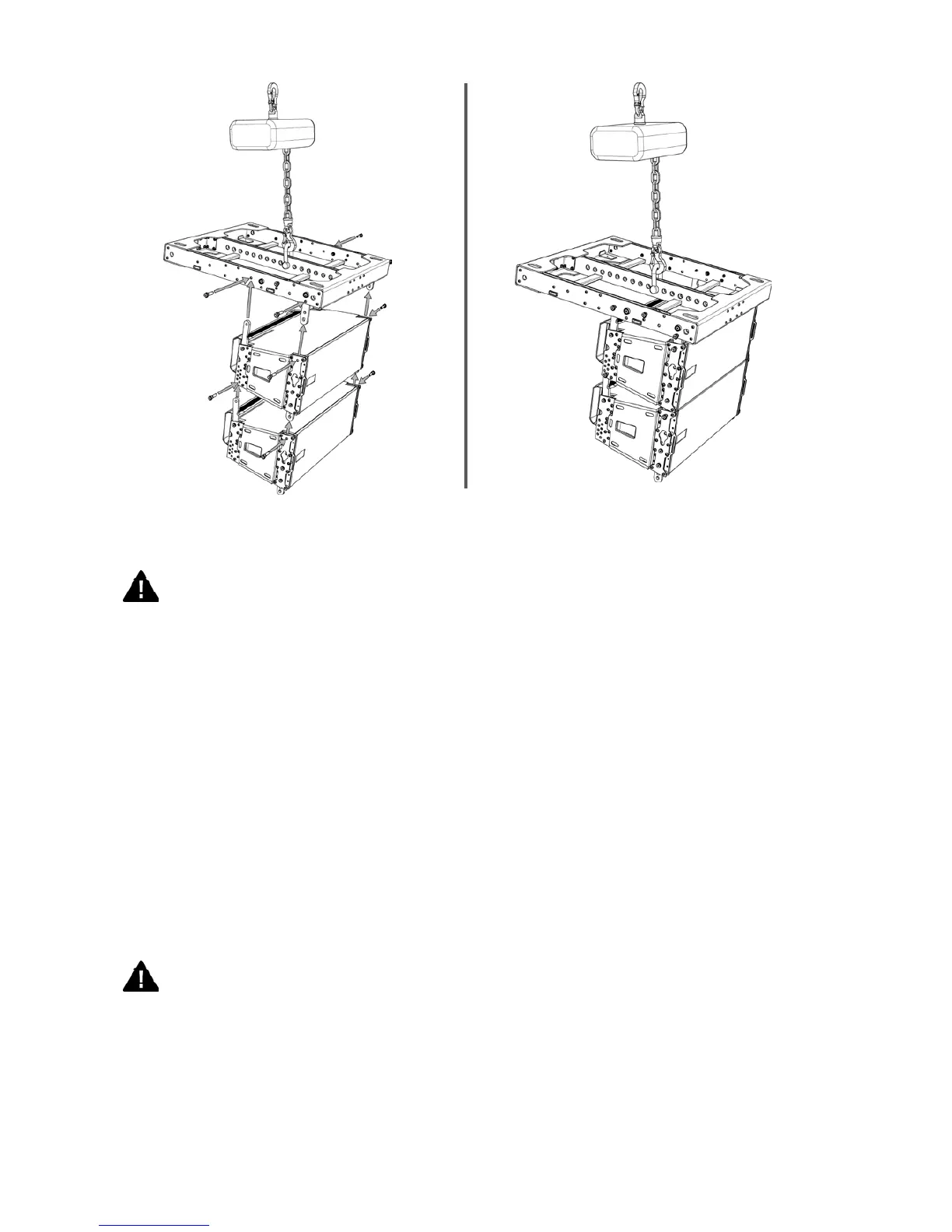

UN-RIGGING THE SYSTEM
Un-rigging the system follow this instructions:
• remove the last cabinet un-locking the 2 rear pins at first, than the 2 front pins.
• remove all the other cabinets following the same procedure and removing a single cabinet each time.
• remove the fly-bar from the motor (o motors).
RIGGING OR UN-RIGGING MULTIPLE CABINETS
If the array is made of a small group of cabinet it is possible to rig or un-rig more than one cabinet a time. For example
an array made of six cabinets can be rigged in two group of three cabinets, each group directly from the kart.
WARNING
This procedure is generally more dangerous and it is very important to respect the following limits of application:
• NEVER CONNECT A GROUP OF CABINETS BIGGER THAN 4
• NEVER CONNECT CABINETS IN GROUPS IF THE ARRAY IS BIGGER THAN 8
• NEVER CONNECT CABINETS IN GROUPS IF THE ARRAY IS VERY CURVED
• NEVER FLY THE SYSTEM AT TEMPERATURES LESS THAN -5° C
Use the same general strategy un-rigging the system.
