WARNING
TO BE USED ONLY FOR STACK-
ING APPLICATIONS UP TO 4
TTL33 MODULES NEVER USE
FOR SUSPENDING SPEAKERS
AVERTISSEMENT
EMPLOYER SEULEMENT POUR
EMPILER JUSQUE A 4 MODULES
TTL33 NE JAMAIS EMPLOYER
POUR SUSPENDRE DES HAUT-
PARLEURS
WARNING
TO BE USED ONLY FOR STACK-
ING APPLICATIONS UP TO 4
TTL33 MODULES NEVER USE
FOR SUSPENDING SPEAKERS
AVERTISSEMENT
EMPLOYER SEULEMENT POUR
EMPILER JUSQUE A 4 MODULES
TTL33 NE JAMAIS EMPLOYER
POUR SUSPENDRE DES HAUT-
PARLEURS
CONFIGURATION
HOLE ON THE FRAME
FRONT
4
2
0
-2
-4
-6
-8
11
9
7
5
3
0
4
2
0
-2
-4
-6
-8
11
9
7
5
3
0
FRONT
CONFIGURATION
HOLE ON THE FRAME
WARNING
TO BE USED ONLY FOR STACKING APPLICATION CONNECTING SUBWOOFER MODULES
NEVER USE FOR SUSPENDING SPEAKERS
AVERTISSEMENT
EMPLOYER SEULEMENT POUR RELIER DES MODULES DE SUBWOOFER
NE JAMAIS EMPLOYER POUR SUSPENDRE DES HAUT-PARLEURS
figure: STCK BAR TTL33A for connecting TTL33A figure: STCK BAR TTL33A for connecting subs
28

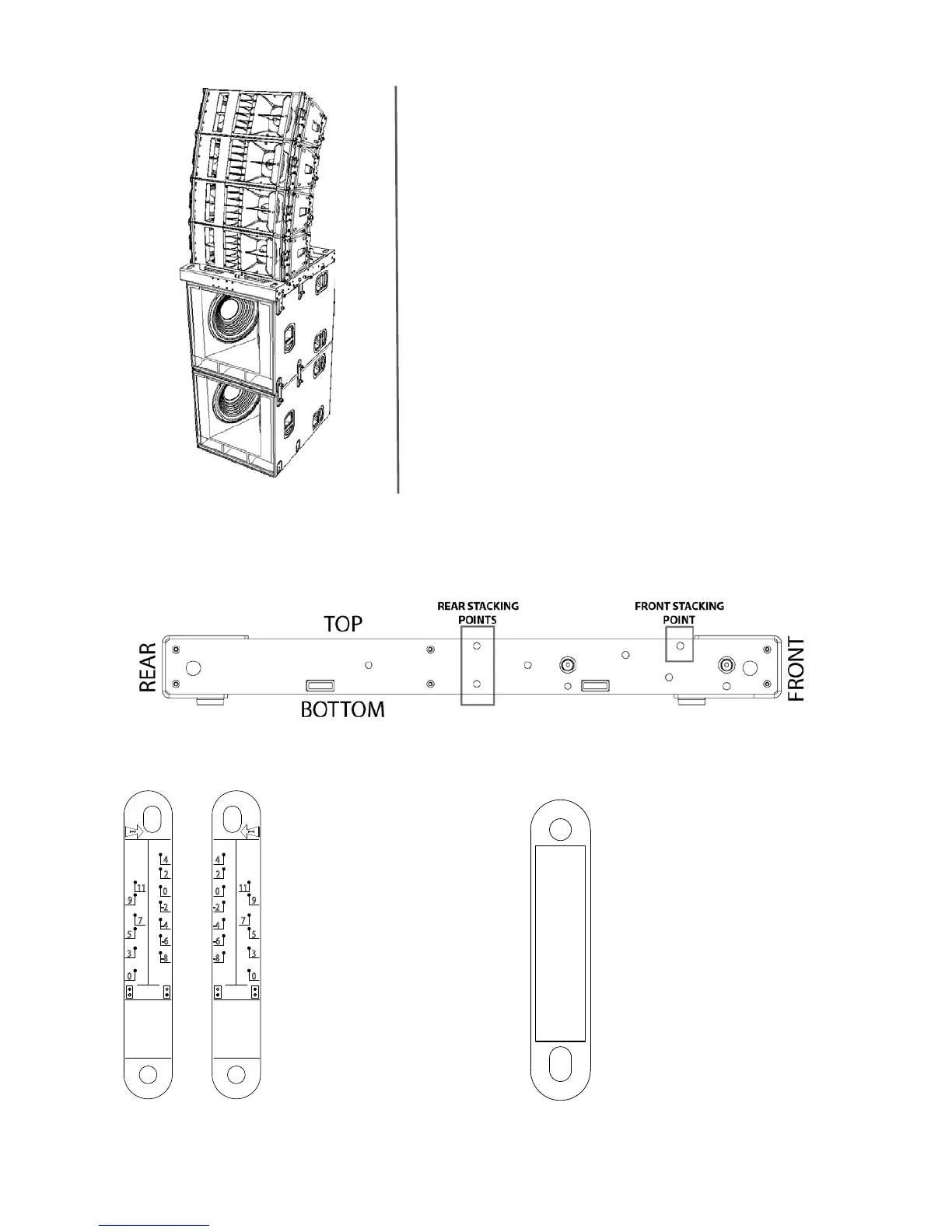

TTL33-A GROUND STACKING
The mechanical design of the suspension system allows the TTL33A
system to be either flown or ground stacked. Either method requires
the array frame, the FLY BAR TTL33A.
Even the smallest of arrays benefit from a careful review of what
vertical coverage is being created, and how that affects the liste-
ning environment. Typically, four TTL33A enclosures is the minimum
practical array format if controlled coverage and precise directivity is
a system design criteria for an event.
The figure below shows a ground stack of four boxes with a mild
baffle arc setting on TT+ subs.
This array solution can be expected to provide controlled directivity.
This type of compact array can work well in small venues, including
concert clubs and smaller auditoriums.
In addition to its flown capabilities, the FLY BAR TTL33A frame forms a secure base for ground-stacking having rubber feet
already installed.
For ground-stacking are necessary optional STCK BAR TTL33A rigging frames and additional quick release pins.
