COMPUTER REQUIREMENTS
The RCF Shape Designer requires an IBM compatible PC with the Windows® 98, Windows® 98SE, Windows® 2000,
Windows® ME, Windows® XP, or Windows NT® operating systems. It is not designed to work with Windows® 3.x,
Windows® 95, or Macintosh® operating systems.
INTRODUCTION
Use the RCF Shape Designer for designing TTL33-A arrays. The RCF Shape Designer’s primary function is to determine
the configuration that will provide the best vertical performance for a given application. Various venue dimensions are
entered that allow the RCF Shape Designer to calculate the resultant array performance.
USING RCF SHAPE DESIGNER SOFTWARE

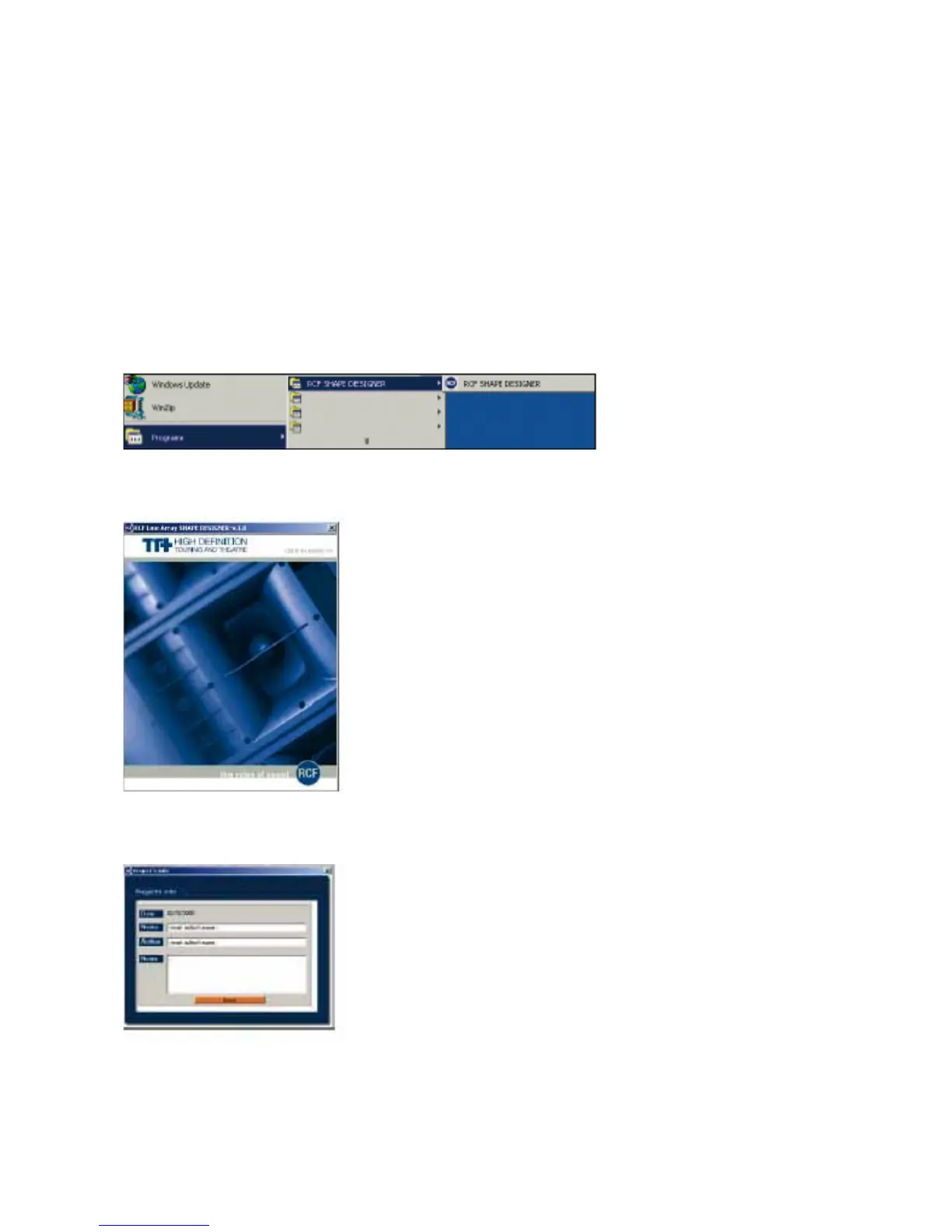

Once you have installed RCF Shape Designer, it will be visible as a shortcut in All Programs via your Windows Start button.
A single click on the RCF Shape Designer tab will open the following page:
A single click on the window will open the following page:
