RCS EPSILON ES2 User Manual

48

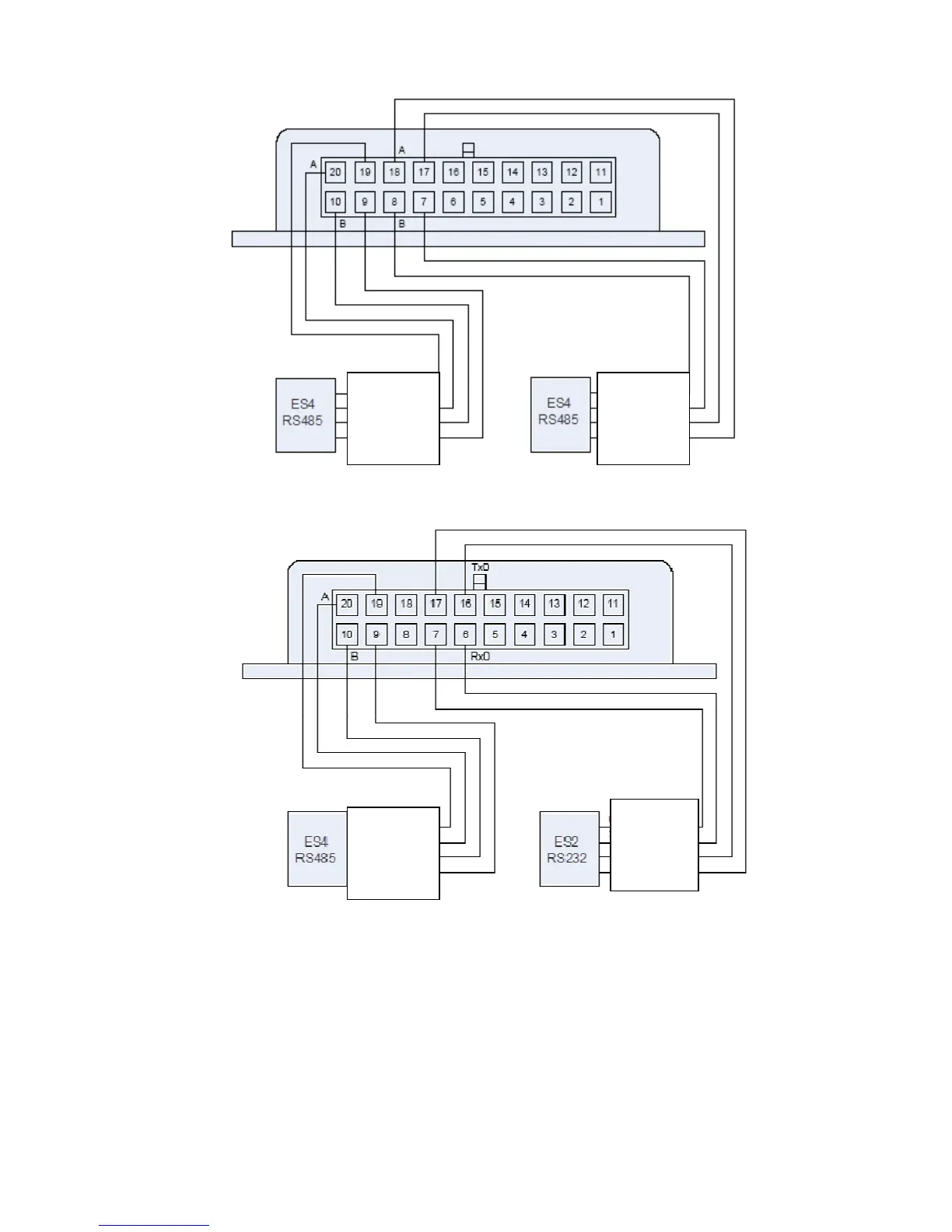

Pic. A4.1. Connection of sensors with the same interfaces RS485.
Pic. A4.2. Connection of sensors with different interfaces RS485+RS232
A4.2. Configuration of sensor «Epsilon ES4»
(
see pic. A 4.3, pic. A4.4).
 Data output capacity – 10 bits.
 Periodic data output is switched off.
 Network address – 1 for 1
st
sensor and 2 for 2
nd
sensor (other values can be applied, from 0
to 15, but necessarily different).
Black
Yellow
Green
Red
Red
Yellow
Green
Black
Black
Yellow
Green
Red
Black
Yellow
Green
Red
