EPSILON ES2,ES4
59
Appendix 9
Connecting sensors to the subscriber terminal ES2
M2M-Cyber GLX

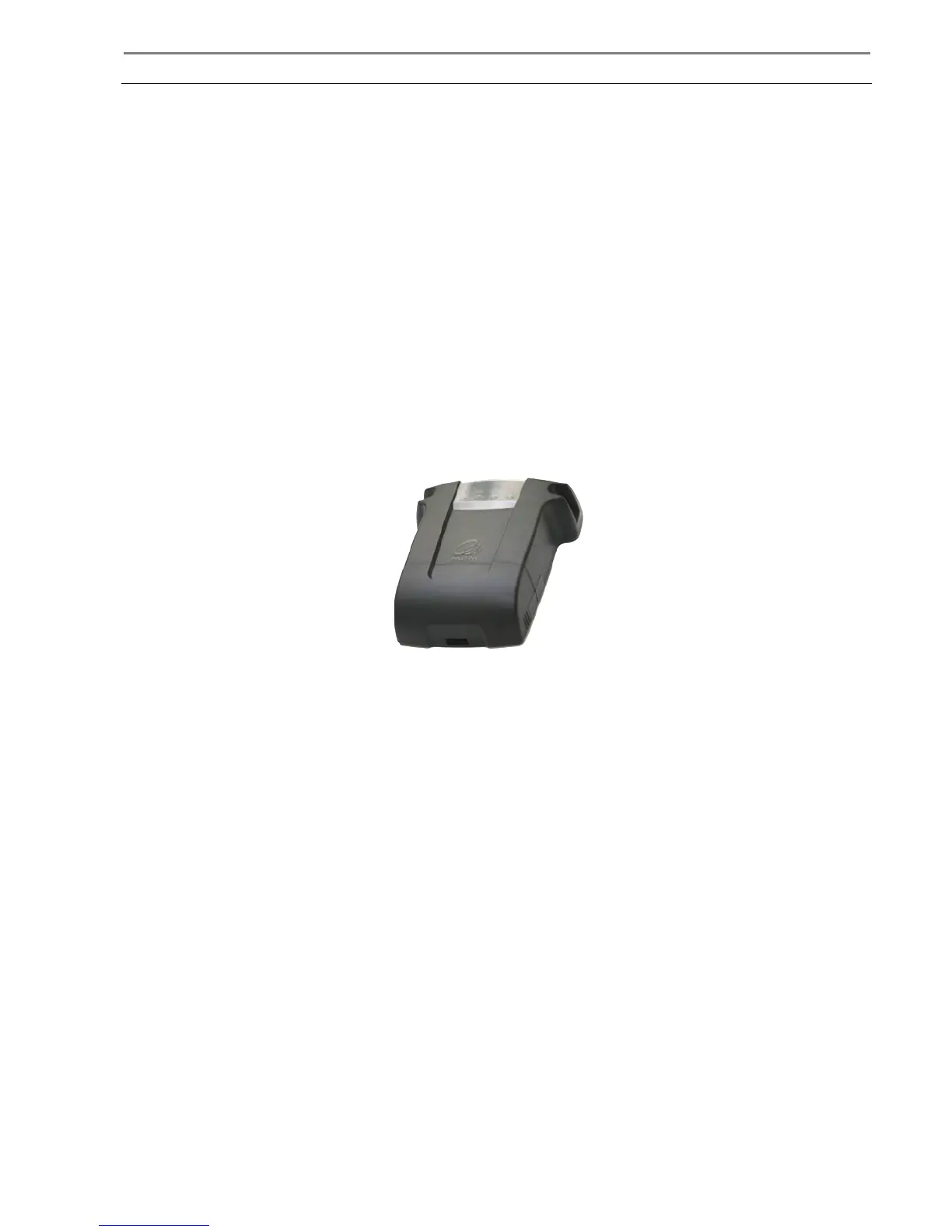

M2M-Cyber GLX-subscriber terminal operating satellite systems GLONASS and GPS, as well
as compatible with the data channels GSM (GPRS).
M2M-Cyber GLX is a multifunctional navigation and communication avionics systems to monitor
and control traffic, intended for transmission via GSM (GPRS) in the telematics server, and
users of information control centers on the movement of the vehicle, data from its attached
peripherals as well as providing two-way communication between vehicles and control centers
of users.
To connect the sensor to the fuel, "M2M-Cyber GLX" should take leadership of the "Terminal
subscriber's GSM / GLONASS / GPS" m2m-cYBER glx ". Manual. MDAV.464428.000 ER."
To connect the FLS port is RS485 or RS232. You can connect a FLS.
Configuration of M2M-Cyber GLX and firmware
Configuring the M2M-Cyber GLX is from any terminal program (eg, Hyper Terminal) according
to the manual for M2M-Cyber GLX ”AVST.464468.002RE2_Manual for exploitation and
configuration”.
In order to provide M2M-Cyber GLX with the FLS «EPSILON» need to configure a custom
UART and set the parameters of the service to work with FLS.
Configuration of custom UART.
Mode: RS232 for use with FLS ES2 and RS485 for use with FLS ES4.
Team: UART MODE = 0 - mode RS232, UART MODE = 1 - mode RS485.
Test run: UART MODE?
Data Rate: must match the speed set in the FLS (setting manufacturer - 19,200 bit / s).
