RCS EPSILON ES2 User Manual

EPSILON ES2,ES4
53
Appendix 6

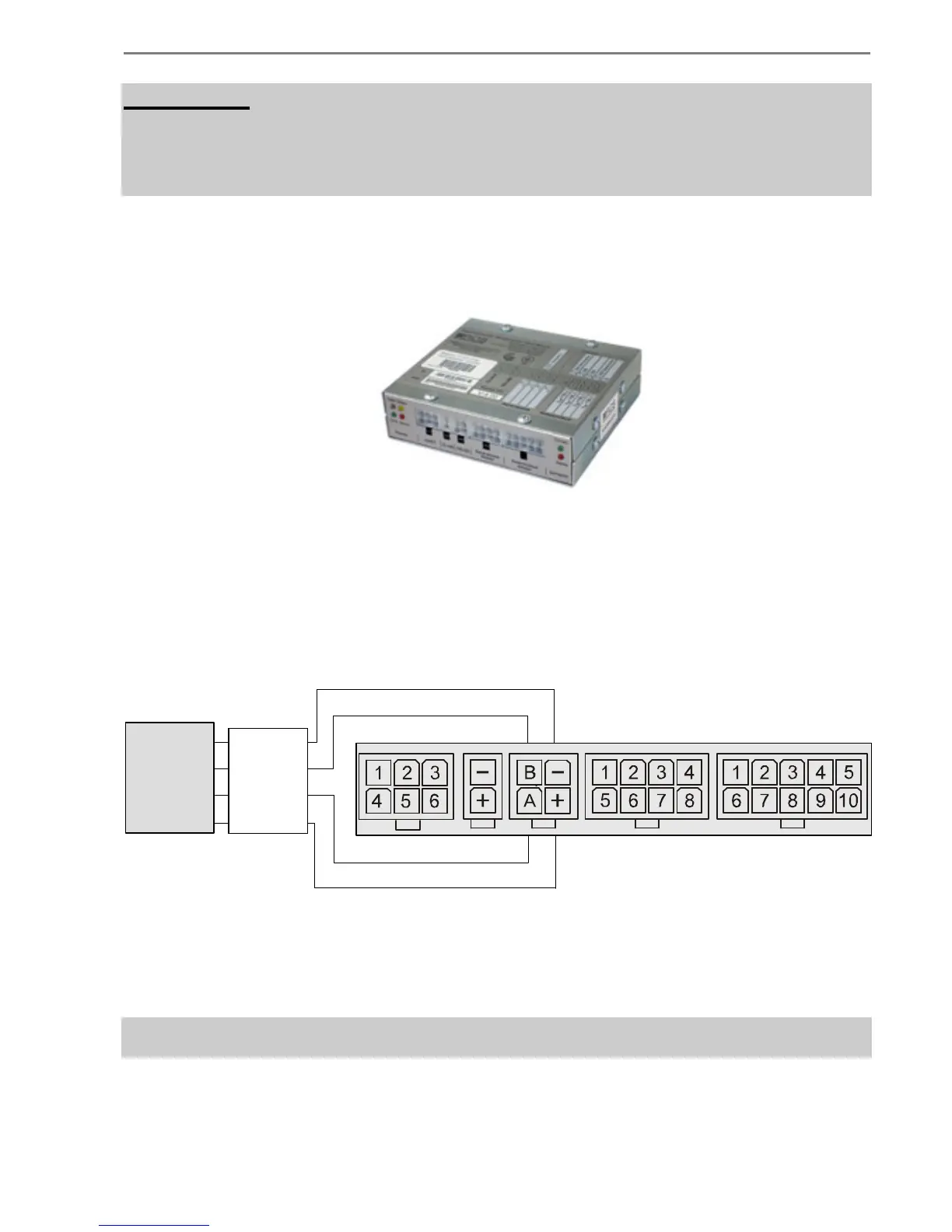

CONNECTION OF SENSORS ES4 TO ON-BOARD CONTROLLER OF
TRANSPORT NAVIGATION "Teletrack TT-221"
Hardware-software complex "Teletrack TT-221" is designed for monitoring of location, speed,
fuel level and condition of different vehicle sensors.
To connect to FLS use RS485 port.
For installation and connection of FLS with onboard controller connector "Teletrack" on the
connecting cable we set (after installation) a corresponding answer connector supplied with the
control unit set.
Also, you should use the manual of "Wireless terminal of subscriber system TELETRACK.
Manual of onboard equipment installation" and the following scheme:
ES4
RS485
черный
зеленый
желтый
красный
Depending on your sensors board that are part of the system Teletrack to the control unit 1 or 2
FLS can be connected, with the capacity of 10 or 12 bits.
(see the above-mentioned manual).
Black
Green
Yellow
Red
