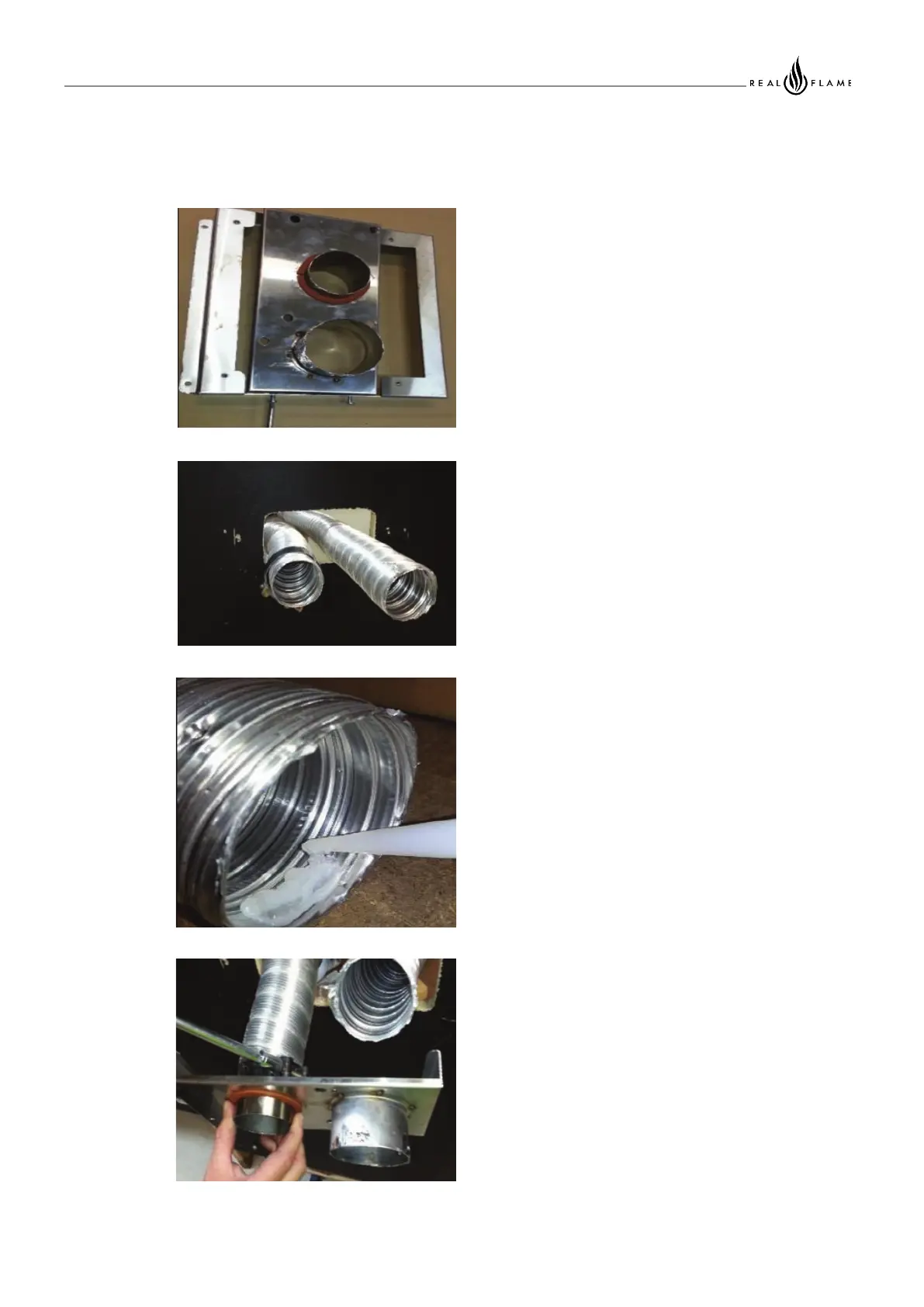

Remove wall mount plate from flue
connection plate.
Cut flue exhaust tube (hot tube) to length
(Approximately flush with wall exit).
Connection plate will sit against wall.
Cut Air intake flue 70mm longer.
Ensure ends are burr free and round, test fit
flue will slide over connection.
Apply an 8mm thick silicon bead fully around
flue connection plate spigot approx. 10mm
from the top.
Apply an 8mm silicon bead fully around the
inside of the flue end (heater connection
end)
Fit flue clamp over flue (loosely).
Slide flue onto connection spigot fully.
Tighten clamp fully.
Wipe excess silicon, visually check
connection to ensure connection is fully
sealed.
INSTALLATION INSTRUCTIONS (continued)
