INSTALLATION INSTRUCTIONS (continued)
28
Push terminal into approximate position and affix onto
wall.

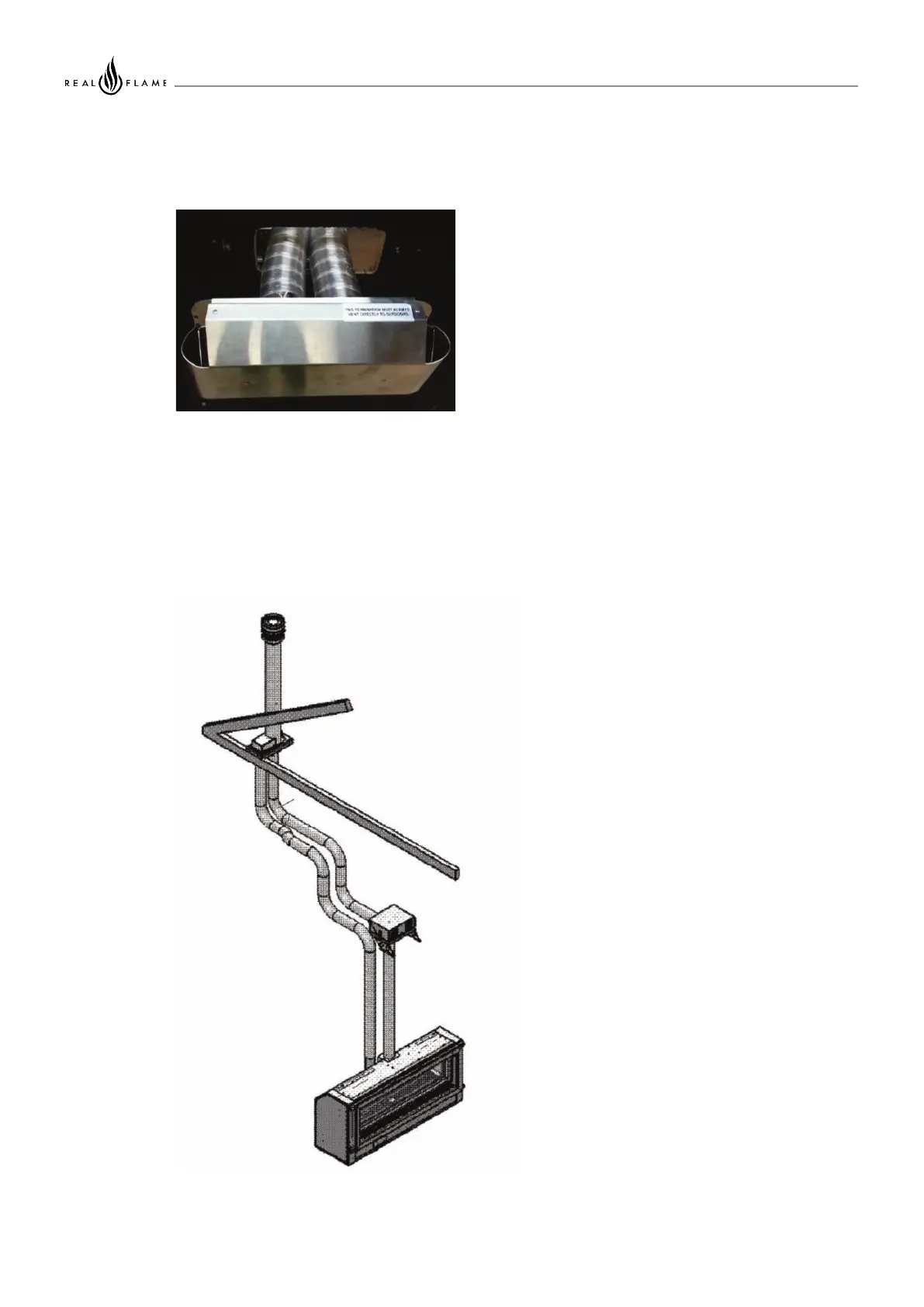

SETUP WITH INTERNAL FAN MODULE WITH ROOTOP TERMINATION – MID
FLUE MOUNTED
Maximum 3m flue length – total 3 bends (Intake flue- 4 bends allowed)
Note – fan module can be appliance mounted or mid mounted when finishing with the rooftop
termination.
