INSTALLATION INSTRUCTIONS (continued)
29
1. Rooftop termination must be installed with clearances as specified by AS5601.1
2. Run exhaust flue and air intake flue as required – Maximum total run 3m per flue. Flues can
be run next to each other. Maintain clearances to combustibles.

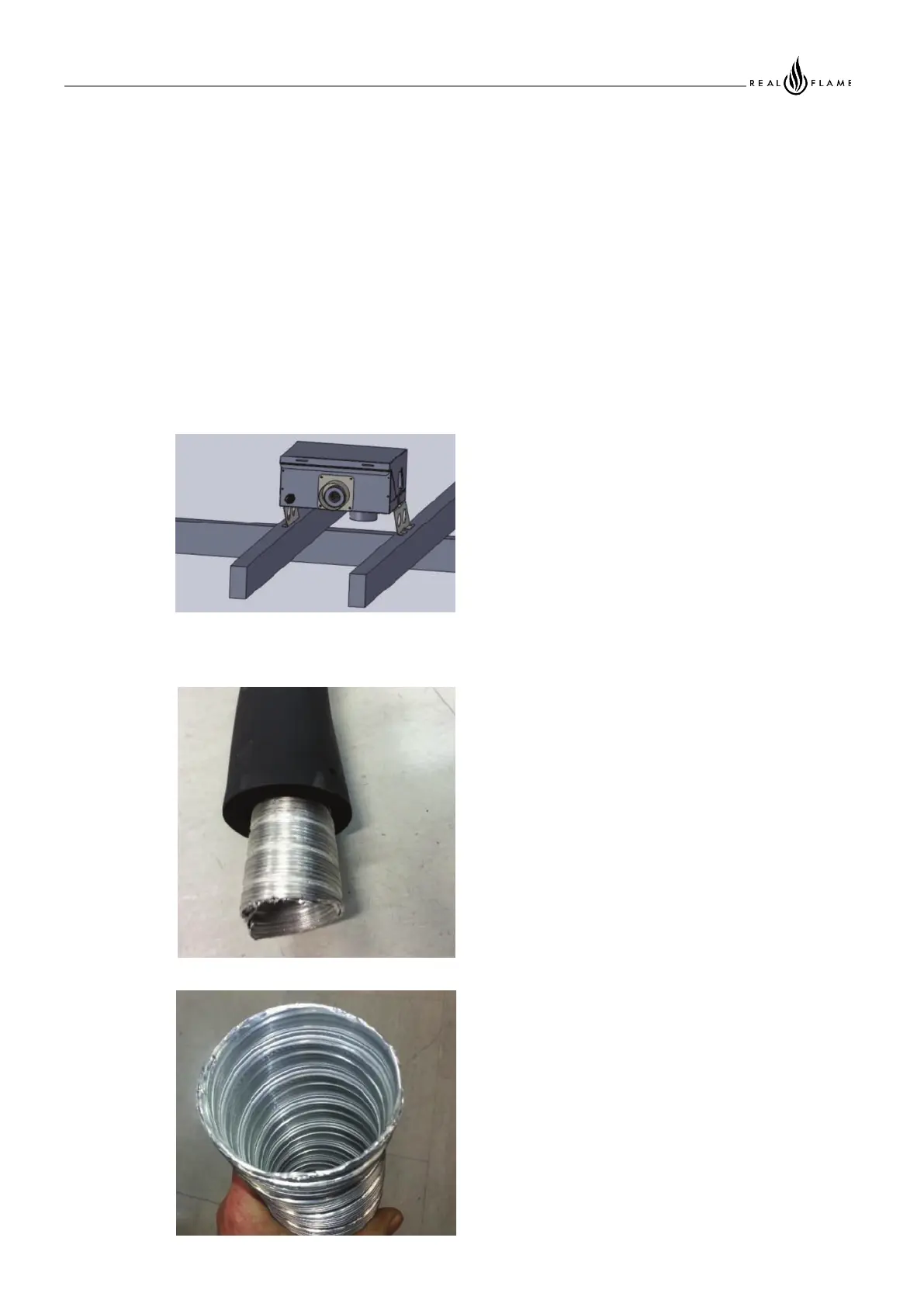

3. Mount fan controller in the required location. (Access to the fan module is required for service
an access panel or ceiling access must be provided.) Fan module can also be directly
mounted to appliance – refer direct mounted instructions.
4. If exhaust flues are running through excessively cold environments where mass heat loss
may occur, we recommend insulating the full length of the exhaust flue to eliminate any risk of
condensing. Non combustible insulation should be used.
5. Connection to fan module to appliance
If it is deemed exhaust flue insulation will be required,
pre insulate the flue and leave approximately 25mm
each end uninsulated.
Run flue from appliance to bottom entry on fan
module.
Support flue with brackets as required
Cut flue to length to suit connection.
Ensure ends are burr free and round, test fit flue will
fit over connection.
To Next Page
