LANDSCAPE MODEL (continued)
Landscape 1000 & 1600

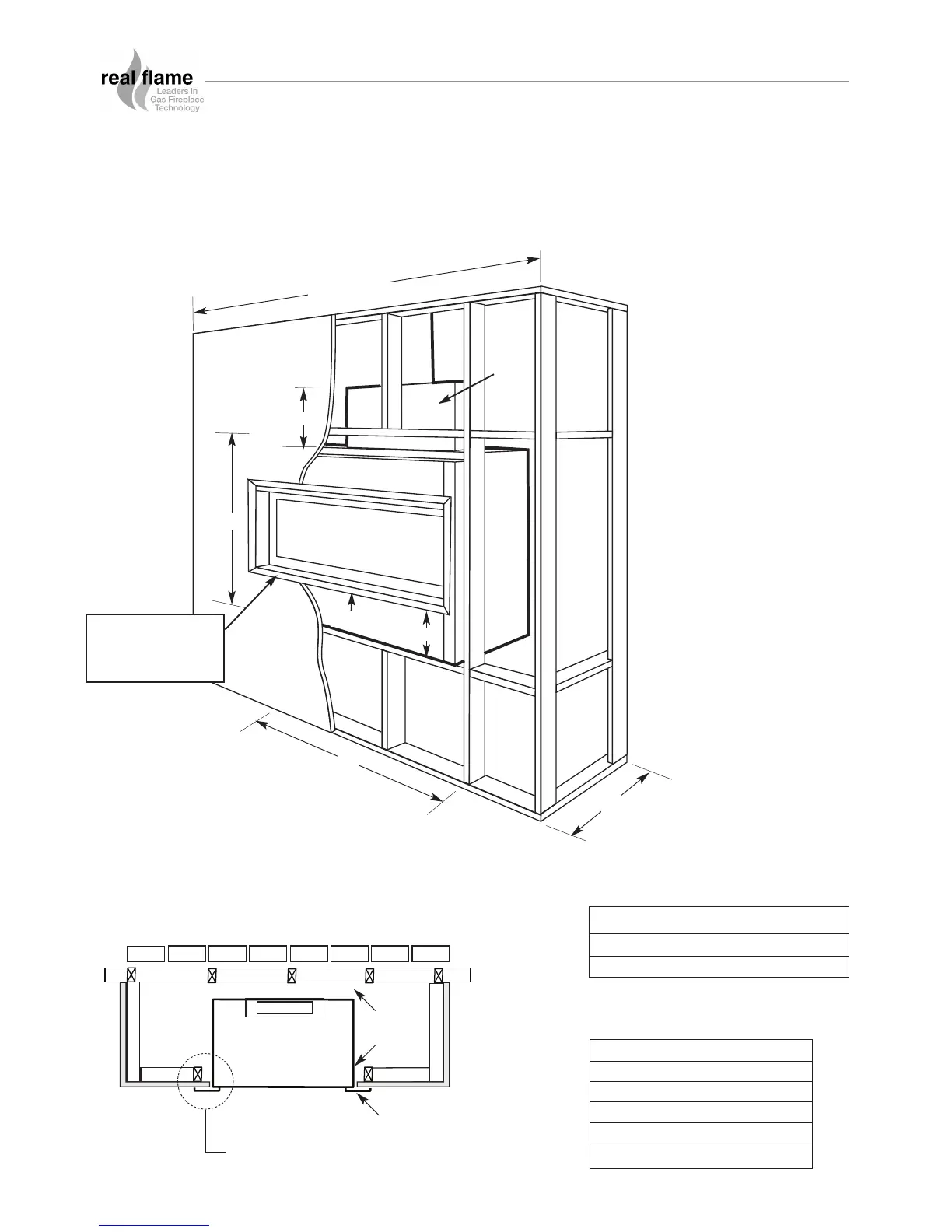

Timber Frame Installation Dimensions
Floor 0 mm
Sides 50 mm
Top 100 mm
Flue Outer 50 mm
Front 25 mm
Back 25 mm
CLEARANCES FROM
COMBUSTIBLES
NOTE: Ensure frame is suitable for fire weight.
Plasterboard to run beyond stud as shown,
and to go behind trim.
Min 50mm
clearance
Trim
NOTE
MODEL A B C D
1000 960 1260 475 1800
1600 960 1860 475 2400
Frameout Dimensions (in mm)
C
D
(Recommended only)
Plaster to run
beyond stud and
behind trim
A
190
TRIM
FLUE
GATHER
B
VIEWING AREA*
*Viewing area for 1000 is
1000mm x 370mm
Viewing area for 1600 is
1600mm x 370mm
515
12
