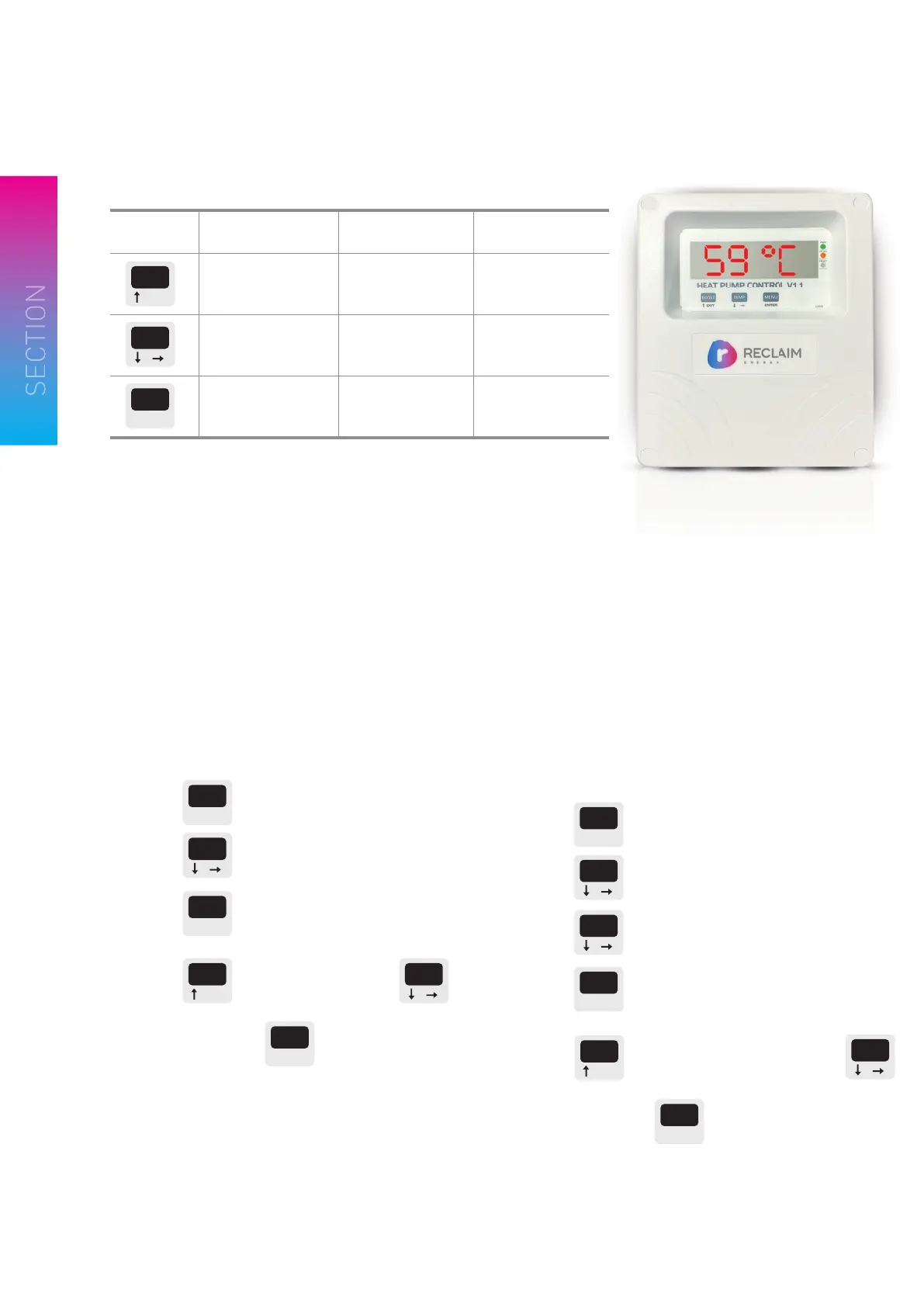

SECTION
EXAMPLES
SETTING THE TIME
NOTE: There is a 12 second no button press timeout.
1. Press button, MEMu appears on display
2. Press button, t1me appears on display
3. Press button, the time and ADJ
alternatively fl ash on the display
4. Press to increase the time or
to decrease time
5. When fi nished press t1me appears on display
6. Wait 12 seconds for menu timeout.
New time will appear.
CHANGING AN OPTION – MODE OF
OPERATION
NOTE: There is a 12 second no button press timeout.
7. Press button, MEMu appears on display
8. Press button, t1me appears on display
9. Press button, optn appears on display
10. Press button, the option and ADJ
alternatively fl ash on the display
11. Press to increase the option number or
to decrease the option
12. When fi nished press optn appears on display
13. Wait 12 seconds for menu timeout.
New time will appear.
5
ENTER
MENU
ENTER
MENU
ENTER
MENU
ENTER
MENU
ENTER
MENU
ENTER
MENU
TEMP
TEMP
TEMP
TEMP
TEMP
EXIT
BOOST
EXIT
BOOST
7
BUTTON NORMAL MODE MENU MODE
SETTINGS
CHANGE MODE
Boost On / Off Menu Exit Increment / Up
Temprature Display Next Value Decrement / Down
Menu Mode Enter Accept
ENTER
MENU
TEMP
EXIT
BOOST
BUTTON FUNCTIONS
BOOST BUTTON:
Press to switch Heat Pump into boost mode. The On Call LED
will start fl ashing, indicating the heat pump has been turned
on via Boost Mode. If inadvertently pressed, boost mode can be
turned off by pressing the Boost button again. After one-shot
boost is complete, the controller reverts back to the last
programmed setting.
TEMPERATURE BUTTON:
Press to display current tank temperature (latches on for 20 sec).
The current control option is also briefl y displayed- refer to menu
details for other functionality. The current “tank temperature” and
“active operational option” can be read by pressing this button.
The temperature is displayed for 4 seconds (Figure 34), then the
currently selected user option is displayed for 4 seconds (Figure
34), before reverting back to the tank temperature for a remaining
12 seconds. Note that this feature is disabled whilst in Menu
Mode, during Purge Mode and whilst displaying a heat pump fault
code or temperature sensor fault.
