10
Note: When assembling this Bandsaw, DO NOT fully tighten the
nuts and bolts until the assembly is complete.

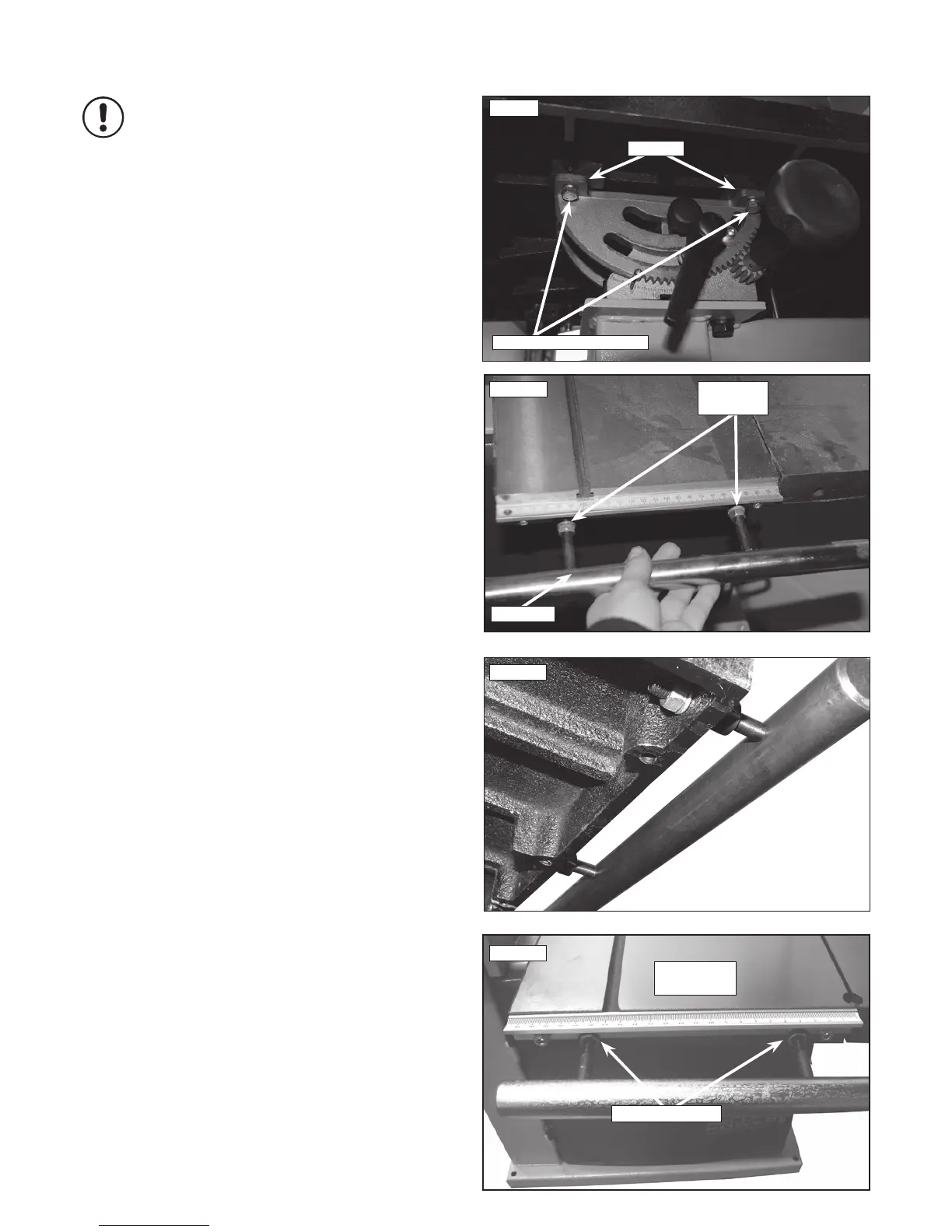

3.4 Fitting the table
Tools Required: - 13 mm wrench
With the help of another person, lift the working table onto the trunnion.
Mount the working table on the trunnion using the supplied 4 x hex bolts
and 4 x washers See Fig. 3.4.
3.4 Fitting the fence bar
Attach the fence bar to the table as shown in Fig. 3.5, ensuring 2 washer
are placed next to the fixing nuts. Use the 2 remaining nuts and washer to
secure the fence bar from the underside of the table, Fig. 3.6. Do not fully
tighten yet as adjustment may be necessary.
3.5 Fitting the fence scale
Place fence scale onto the table, Fig. 3.7 and fix with the two hex
socket screws.
Fig. 3.4
Hexagon screw & washer
Trunnion
3. Machine Assembly - Cont.
To Next Page
