3. Machine Assembly
Fig. 3.3
Belt tension & speed change
Fig. 3.2
Rise & fall
Fig. 3.1
1 2 5
6
3 4
CAUTION!
The machine is heavy. Additional help or a suitable lifting
device or support will be required for placing the machine
in the workshop.

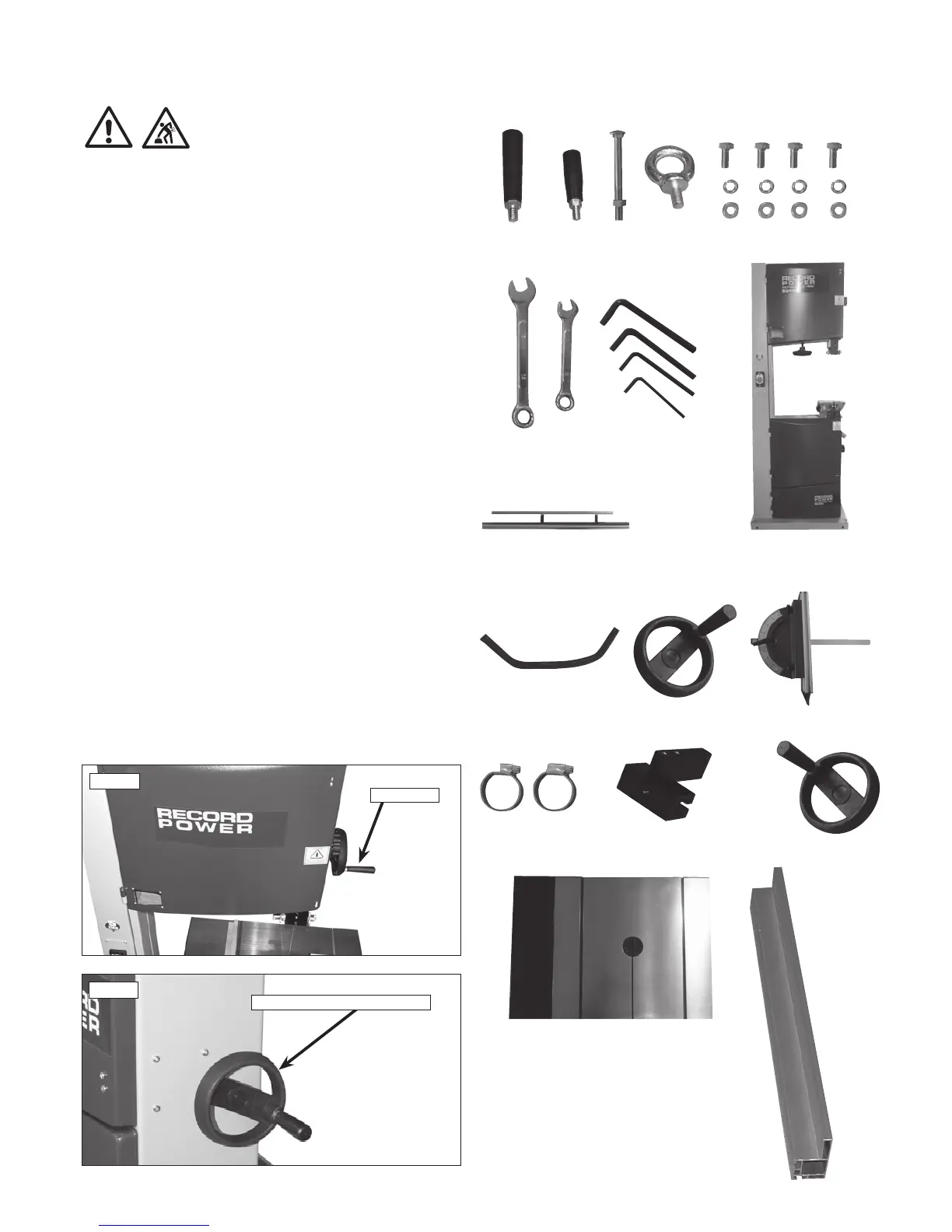

3.1 Unpacking and components included
The machine is supplied partly assembled.
When unpacking the machine the following components are included
for the initial assembly Fig. 3.1:
1. 1 Large crank handle
2. 1 Small crank handle
3. Table stop screw and nut
4. 1 Lifting ring
5. 4 Table bolts, washers and spring washers
6. Tool kit
7. BS400 Bandsaw
8. Fence bar and scale
9. Extraction hose
10. Rise and fall hand wheel
11. Mitre fence
12. 2x jubilee clips
13. Fence assembly
14. Belt tensioner hand wheel
15. Table
16. Fence
3.2 Rise & fall handle
Attach the rise and fall hand wheel to the rise and fall shaft and
tighten the socket head bolt with a 5 mm hex key. Then attach the
handle and tighten with a 10 mm wrench. See Fig. 3.2.
3.3 Belt tensioner handle
Attach the belt tension hand wheel to the tension shaft and tighten
the socket head bolt with a 5 mm hex key. Then attach the handle and
tighten with a 10 mm wrench. See Fig. 3.3.
