10. Assembly of the Optional DML305/L Extension
Support and DML250 Bed Extension

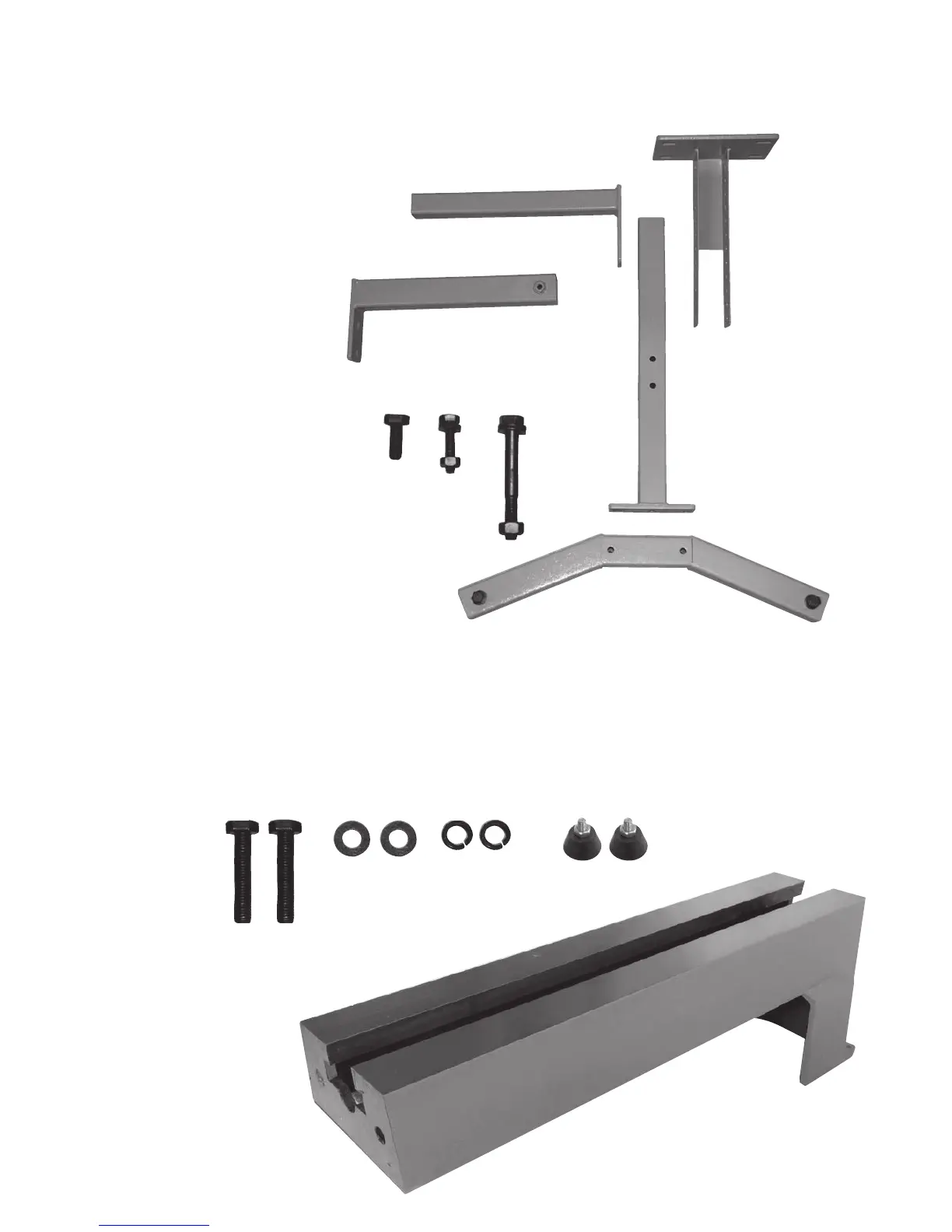

Contents of the DML305/L Extension Support Package
1 Upright plinth
2 Male cross brace
3 Female cross brace
4 M10 x 25mm set screws x 2
5 M8 x 35 mm bolts, nuts and washers x 2
6 M10 x 80 mm bolts, nuts and washers x 6
7 Upright column
8 Base
2
3
7
8
1
4 5 6
Contents of the DML250 Bed Extension Package
1 M10 x 30 mm bolts x 2
2 Washers x 2
3 Spring washers x 2
4 Rubber feet x 2
5 Bed extension
5
2 3 41
