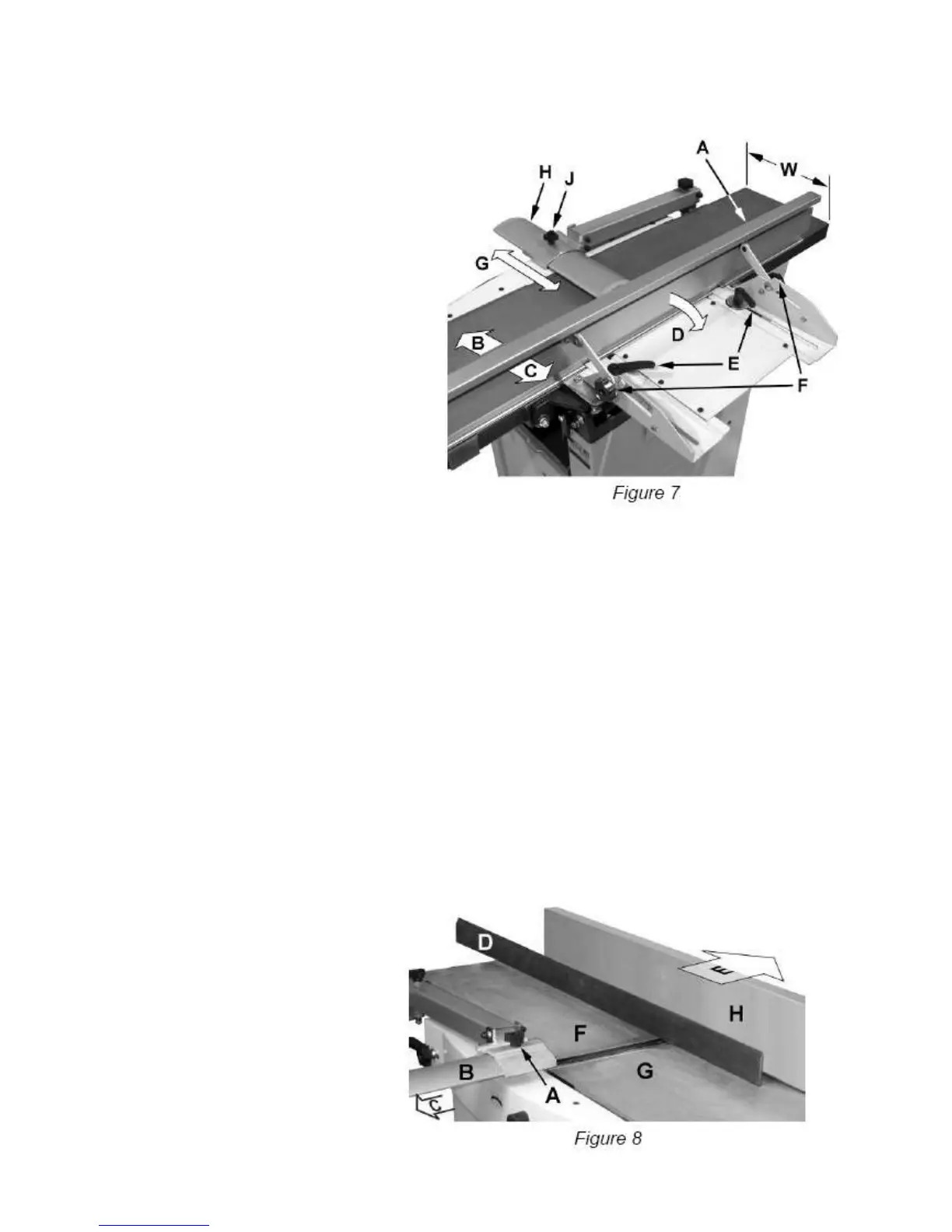

backward (C) across the width (W) of the table. It
also tilts up to 45 degrees backwards (D).
Loosen the lock knob (J), slide the guard
into
position, then tighten the lock knob.
To slide fence forward or backward:
When edge jointing, the fence assembly
should
periodically be moved to different
positions to
distribute wear on the cutterhead knives.
This is
done as follows:
1. If necessary, loosen the cutterhead
guard (H)
to permit the fence assembly to move
freely
without being constrained by the guard.
2. Loosen two fence assembly locking
handles (E).
3. Move the entire fence assembly to the desired position; then re-tighten the handles (E).
4. Readjust and secure the cutterhead guard. To tilt fence backward:
The fence (A) can be tilted backward (D) up to 45°(that is, for a total included angle of 135°
from table surface) as follows:
1. Loosen locking handles (F).
2. Tilt the fence back (A, C) to the desired angle up to 135 degrees. Or you can place your beveled
reference piece on the table and against the fence, adjusting the fence until the angle of the fence
matches the bevel of your gauge piece.
3. Tighten the locking handles (F).
4. Readjust and secure the cutterhead guard.
Adjustments
Table and Knife Adjustments
For accurate jointing, at least three things must be
true:
1. Infeed and outfeed tables must be
coplanar.
2. Knives or knife inserts must be
set in the cutterhead so that the
highest point of their arc is level
with the outfeed table.
3. On the standard cutterhead,
knives must be parallel with the
outfeed table across the entire
length of the knives.
