Power

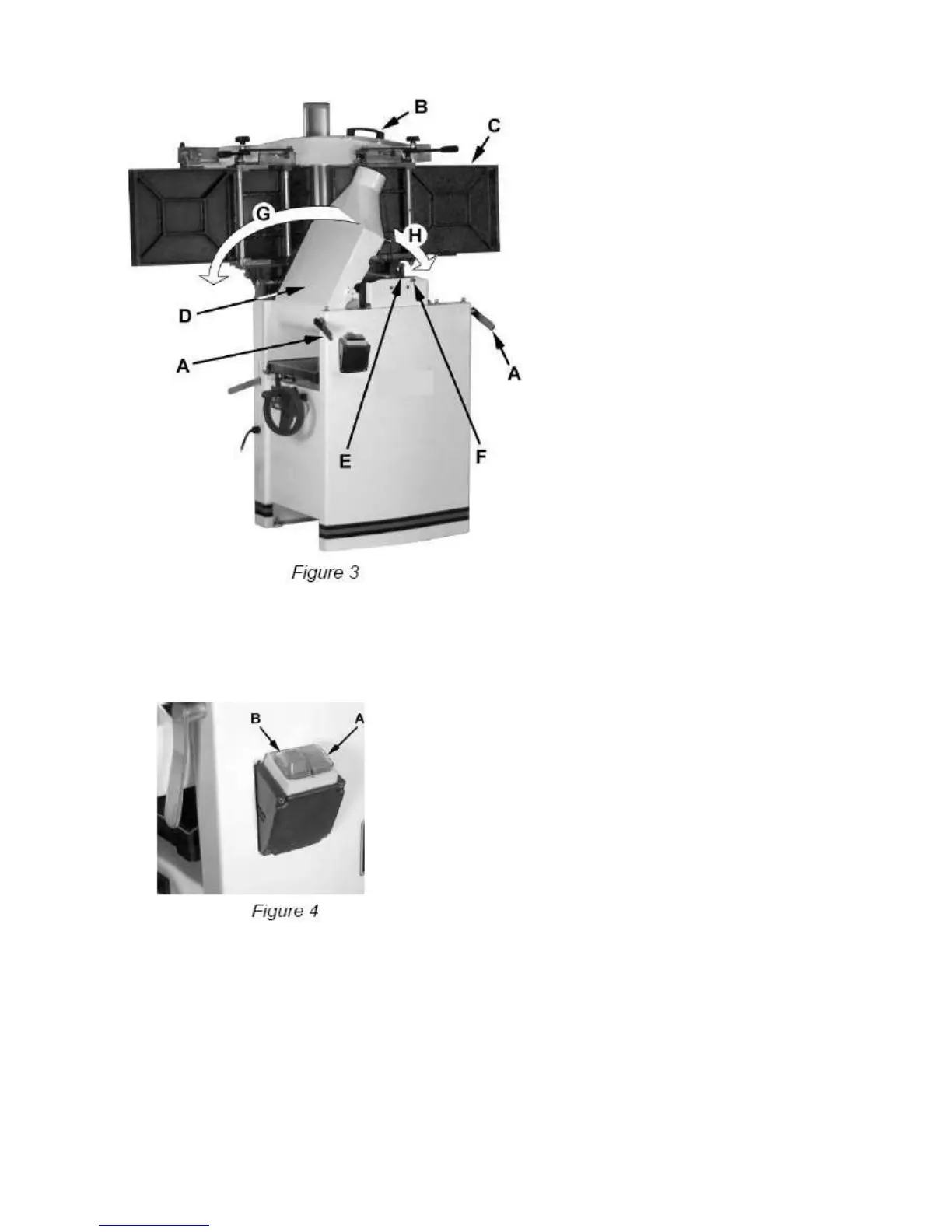

Once a properly rated plug is connected, plug power cord into outlet. Press the green on button (A,
Fig. 4) to start. Press the red off button (B, Fig. 4) to stop.
Planer Controls and Adjustments
Referring to Figure 5:
Power Feed
Placing the planer power feed handle (D) in the up position turns the planer power feed on (see
arrow). Placing the handle in the down position turns the power feed off.
Table Lock
Turn the table lock (E) clockwise to lock the height adjustment handwheel (F) and secure the
