planer table (C) in its selected position. Turn the table lock (E) counterclockwise to release and
permit table adjustment.
Table Height Adjustment
The planer table height is set as follows:
1. Unlock the table lock (E).
2. Rotate the height adjustment handwheel (F)
clockwise to raise the planer table (C),
counterclockwise to lower.
3. Lock the table lock (E). Each revolution of
the handwheel (F) results in a
4mm up or down movement of the table (C). A
scale on the handwheel column indicates the
amount of handwheel rotation. A pointer (B)
indicates the table position relative to the
cutterhead on the scale (A) located on the side
of
the cabinet.
Jointer Controls and Adjustments

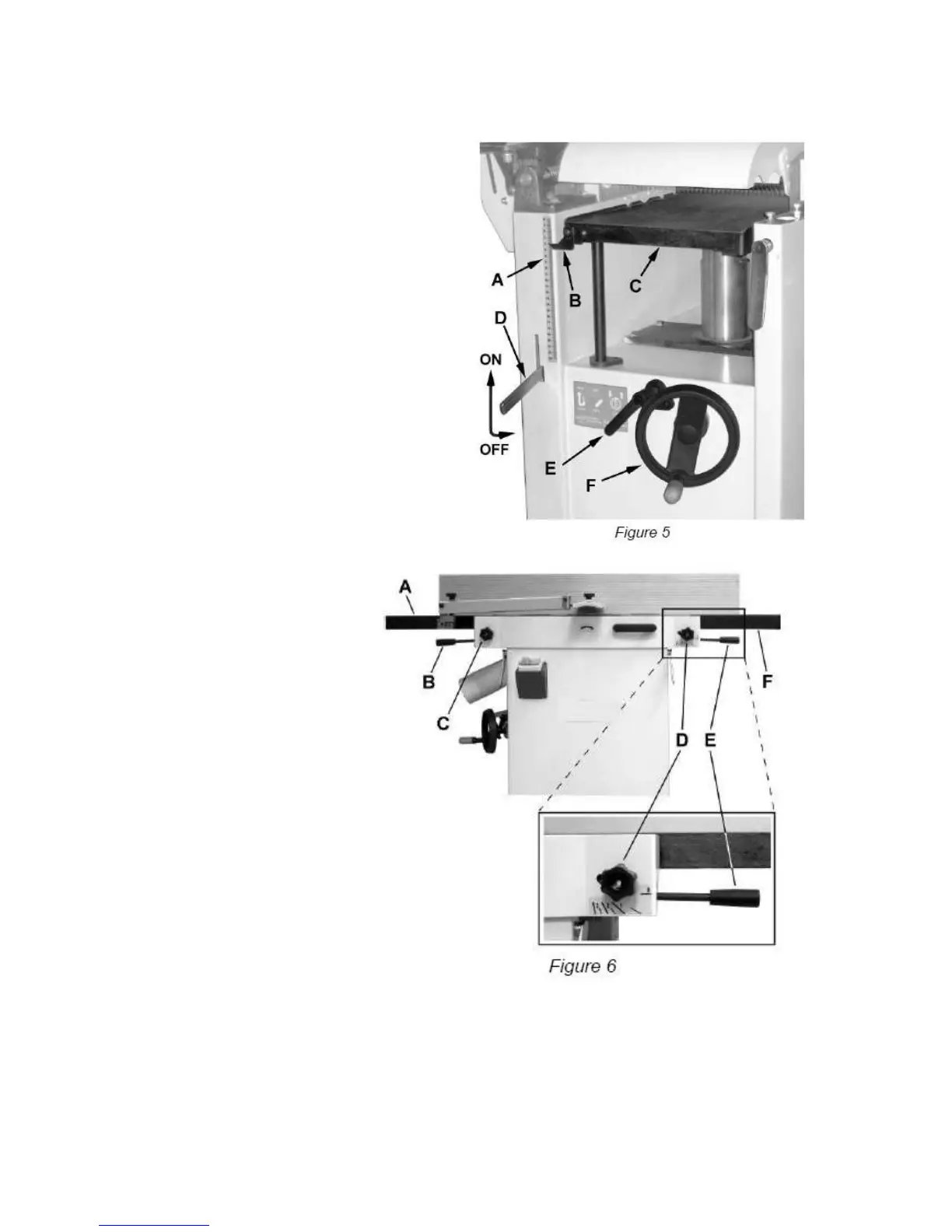

Referring to Figure 6:
Outfeed Table Height Adjustment
Lock knob (C) and lifting handle (B)
control the height adjustment of
the outfeed table (A).The outfeed
table is initially adjusted at the
factory and should not be
repositioned except during certain
adjustments.
Infeed Table Height Adjustment
Lock knob (D) and lifting handle (E)
control the height adjustment of
the infeed table (F).To adjust:
1. Loosen lock knob (D).
2. Raise the lifting handle (E) to
raise the infeed table for a shallow
depth of cut. Lower the handle for
a deeper cut.
3. Tighten the lock knob (D). .
Note: A depth of cut of 1.5mm or
less is recommended.
Cutterhead Guard
Properly positioned, the cutterhead guard (H) should rest against the fence (A).
Fence Movement
Referring to Figure 7:
The fence (A) can be moved forward (B) or
To Next Page
