35
14. Parts Lists and Diagrams
A-01
A-02
A-03
A-04
A-05
A-06
A-07
(A-04)
(A-04)
A-08
A-09
A-10
A-11
A-12
A-13
(A-06)
(A-04)
(A-07)
(A-01)
(A-07) (A-07)
QT9800-A
(A-13)
A-14
A-15

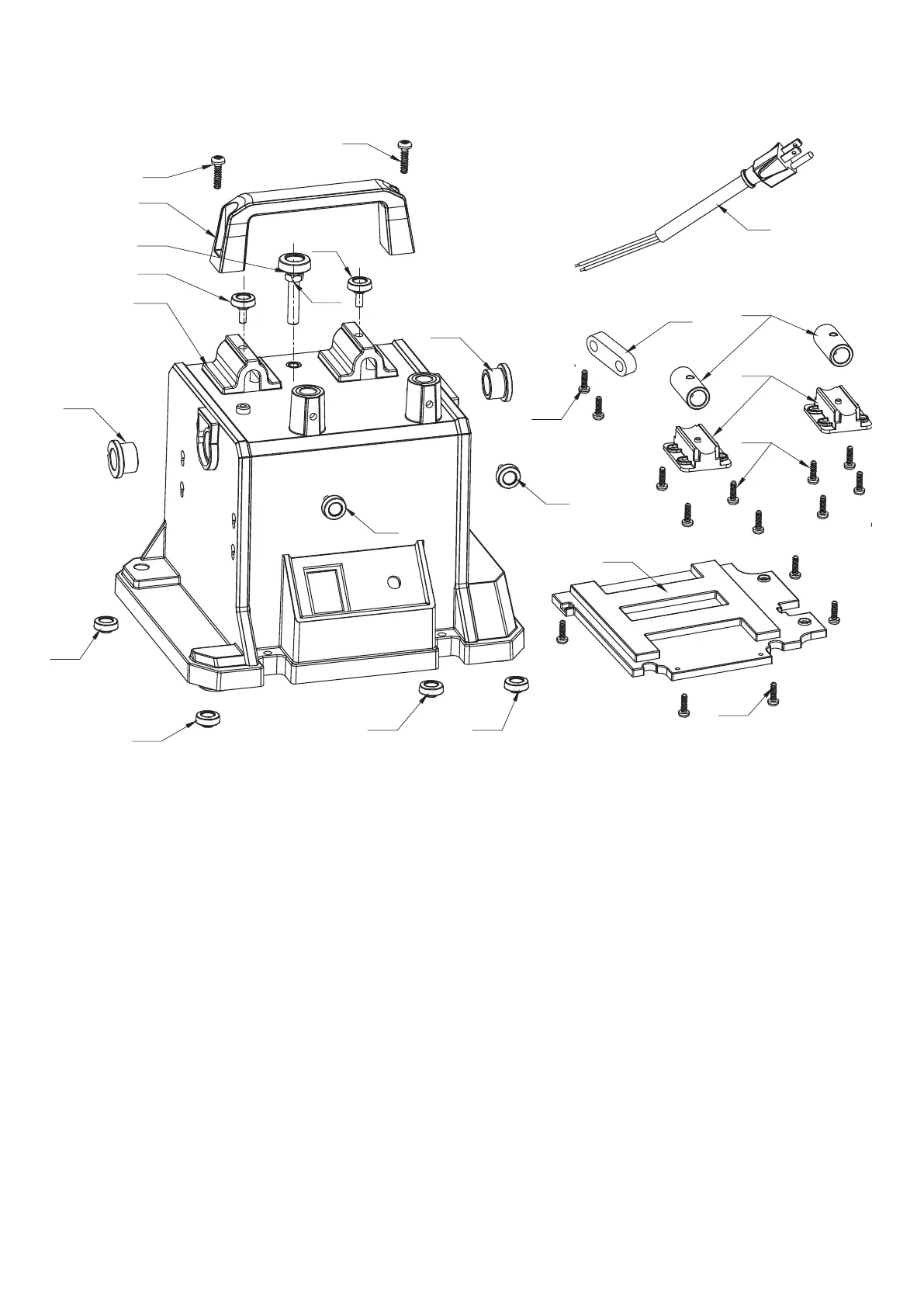

QT9800-A Machine Body Assembly
Part No. Description Quantity
A-01 Self-tapping screw ST5 x 20 2
A-02 Handle 1
A-03 Torque adjusting knob M8 x 35 mm 1
A-04 Lock knob M6 x 12mm 4
A-05 Machine body 1
A-06 Slide bearing 2
A-07 Rubber foot 4
A-08 Self-tapping screw ST4 x 14 2
A-09 Lock wire plate 1
A-10 Power cord 1
A-11 Tube 18 x 12.2 x 40 mm 2
A-12 Tube fixed bracket 2
A-13 Self-tapping screw ST4 x 12 1
A-14 Machine support plate 1
A-15 Set nut M8 x 35 mm 1
