QT9800-B

C-01 C-02

QT9800-C

B-01 Connector wire 430 mm 1

A-08 Self-tapping screw ST4 x 14 2

B-02 Cable retainer 1

B-03 Motor rear bracket 1

B-04 Carbon brush 2

B-05 Brush holder 2

B-06 Motor rear bracket cover 1

B-07 Screw M5 x 100 2

B-08 Flat Washer Ø5 2

B-09 Spring Washer Ø5 2

B-10 Spring Ø12 x 80 mm 1

B-11 E-clip 2

B-12 Motor shaft 1

B-13 Bearing 2

B-14 Motor armature 1

B-15 Armature ﬁeld 1

B-15 Magnetic shoe 2

B-16 Motor front bracket 1

QT9800-C Support Arm Assembly

Part No. Description Quantity

C-01 Support arm 1

C-02 Micro adjustment nut 1

Part No. Description Quantity Part No. Description Quantity

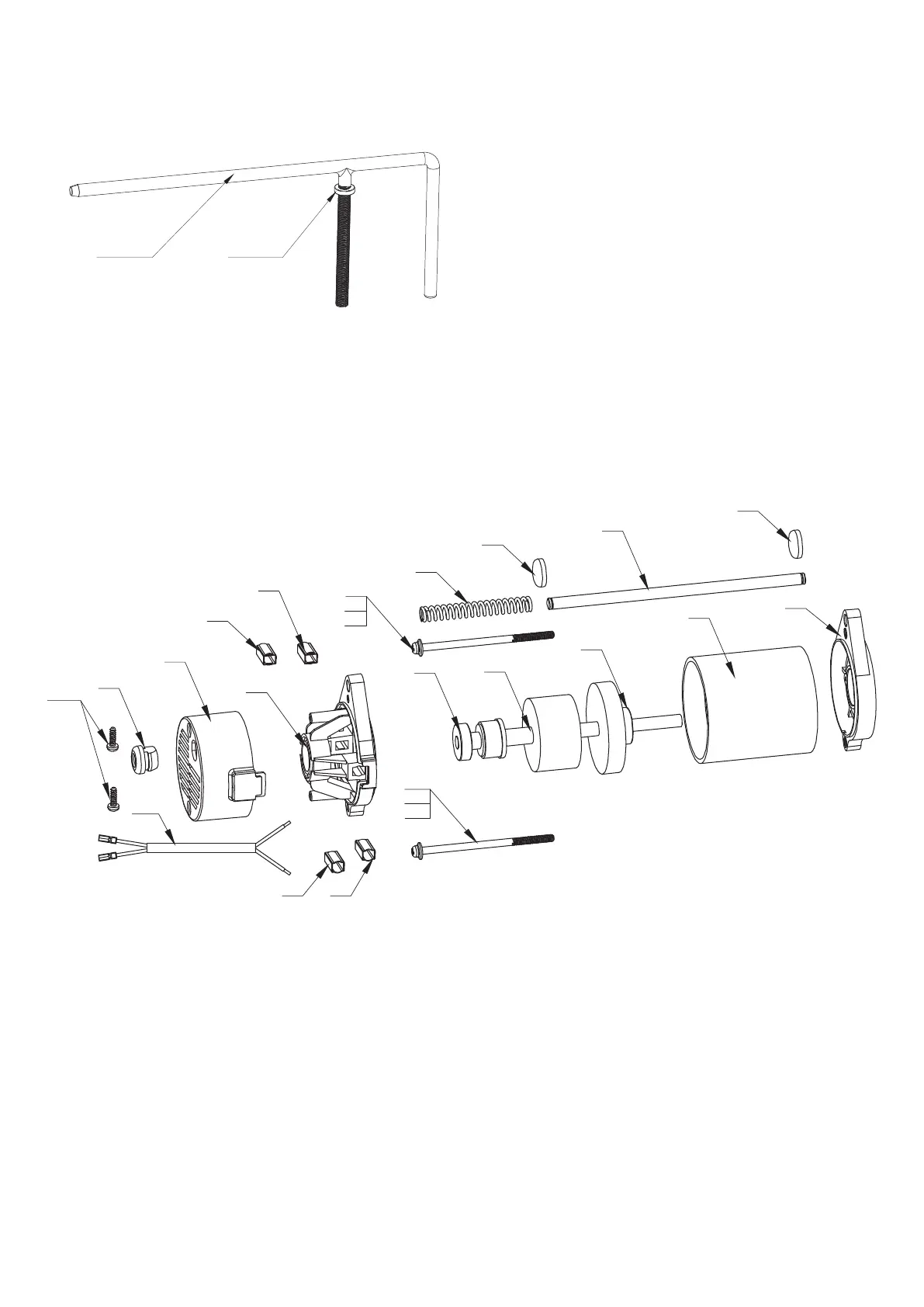

QT9800-B Motor Assembly

14. Parts Lists and Diagrams

Record Power WG200 - Page 36
