Record Power WG200

To Next Page

To Previous Page

(B-02)

D-01

(A- 08)

D-02

C-03

(A- 08)

C-04

C-06

C-07

C-05

C-08

E-01

E-02

E-03

(E-02)

E-04

E-05

E-06

E-07

(E-06)

E-08

E-09

E-10

QT9800-E

A-08 Self-tapping screw ST4 x 14 2

B-02 Cable retainer 2

D-01 Switch box 1

D-02 PCB board 1

D-03 Self-tapping screw ST3 x 12 2

D-04 Power switch 1

D-05 Indicator knob 1

D-06 Set Screw M4 x 6　 1

D-07 Brown wire 80 mm 1

D-08 Blue wire 80 mm 1

E-01 Left hand nut M12 x 1.75 1

E-02 Washer 3mm for stone 2

E-03 Stone wheel 1

E-04 Main shaft 2

E-05 Spring pin Ø4 x 40 mm 2

E-06 Flat washer Ø12 x Ø24 x 1.5 2

E-07 Drive wheel 1

E-08 Lock nut 1

E-09 Honing wheel with Leather strip 1

E-10 Honing wheel Lock knob M12 1

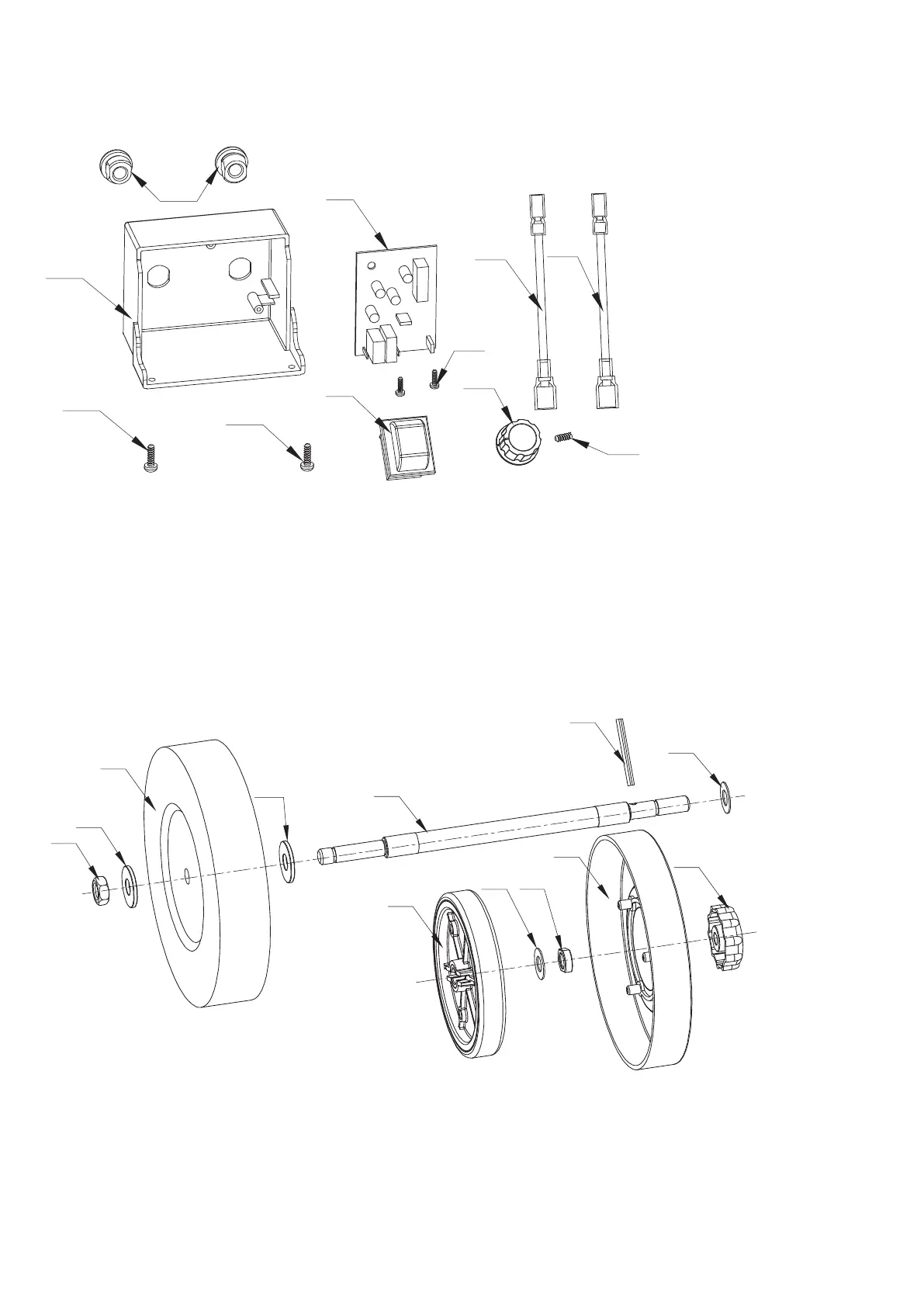

14. Parts Lists and Diagrams

Part No. Name Description Quantity Part No. Name Description Quantity

QT9800-D Power Switch Assembly

QT9800-E Drive Shaft Assembly

Part No. Description Quantity Part No. Description Quantity

Record Power WG200 - Page 37
