RedMax CHTZ60 - Repair Instructions; Product Overview for Repair

7 Repair instructions

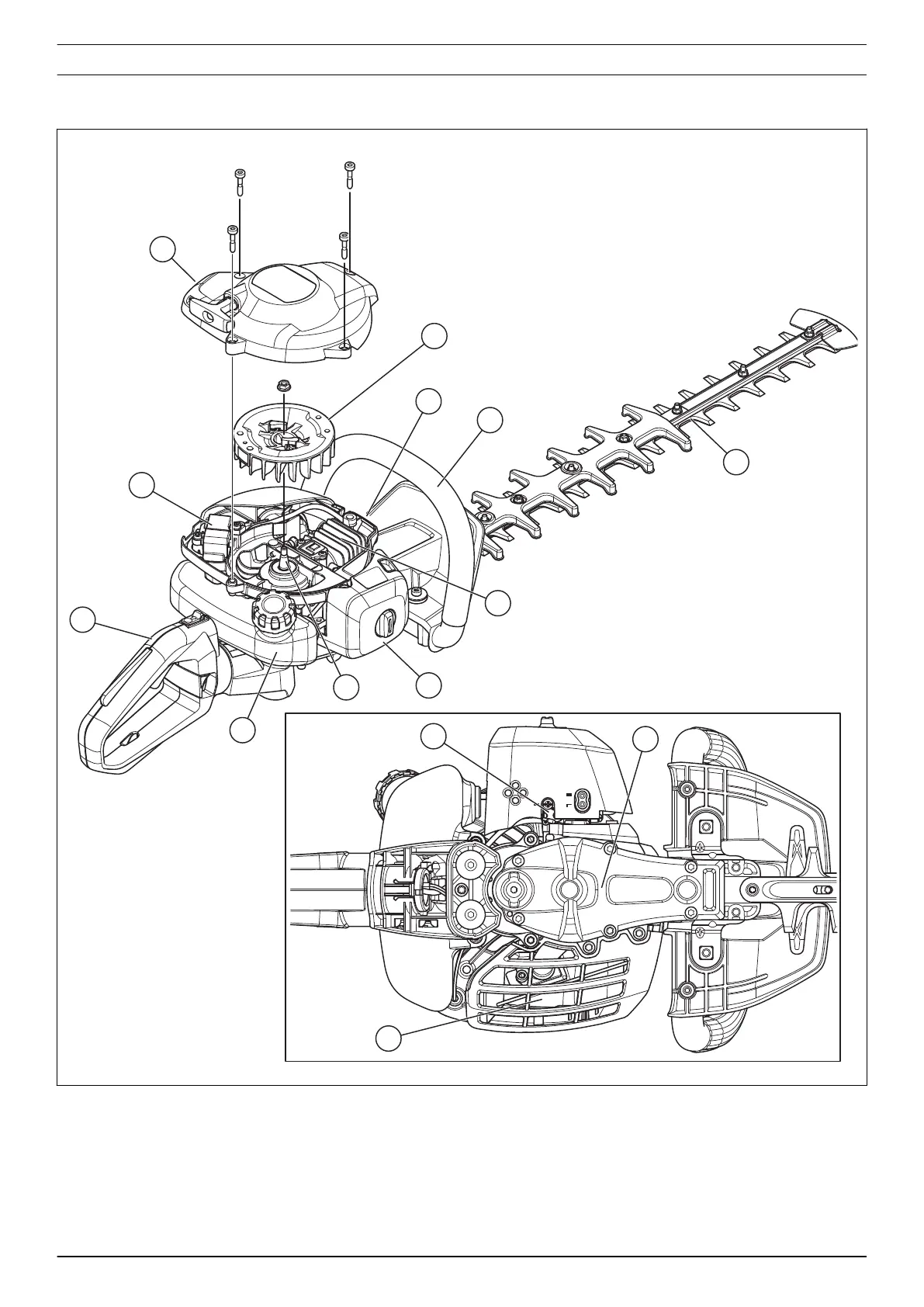

7.1 Product overview for repair instructions
5
3
1
6
2
4
9
12
13
7
11
10
8
14
1. Starter unit
2. Muffler
3. Spark plug
4. Flywheel
5. Ignition module
6. Air filter
7. Fuel tank
8. Carburetor
9. Rear handle
10. Gearbox
