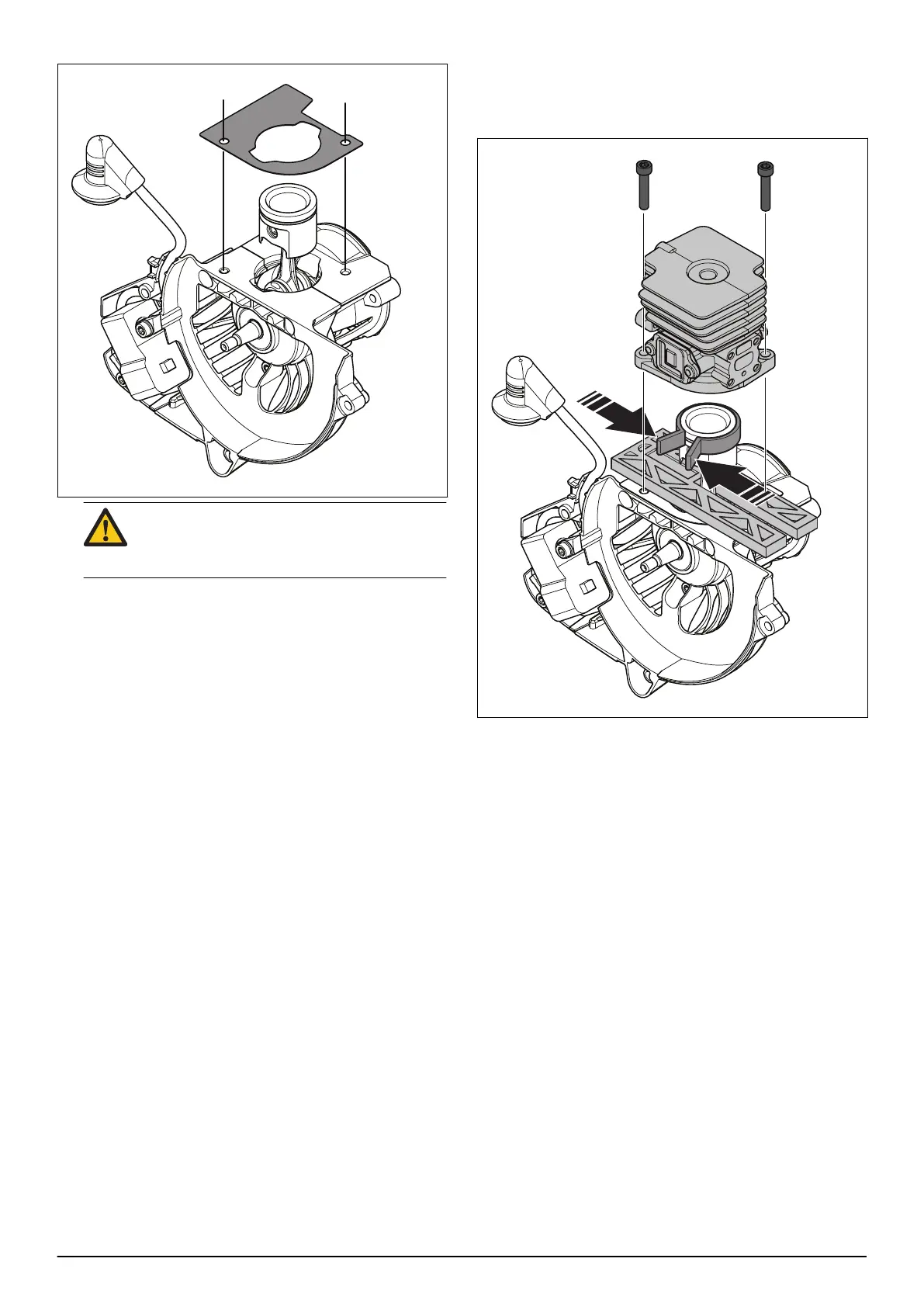

5. Put a new cylinder base gasket on the crankcase.
CAUTION: Make sure that the cylinder base
gasket does not have signs of damage and
wear.
6. Install the support plate from the piston assembly kit.
7. Use the clamp from the piston assembly kit to
compress the piston ring. Carefully push the piston
into the cylinder opening. Tighten the 2 screws to
the specified torque. Refer to Servicing data on page
6 .
8. Install the remaining parts in the opposite sequence.
7.14 Crankshaft and crankcase
7.14.1 To get access to the crankcase and
crankshaft
1. Do step 1-13 in To remove the cylinder and piston
on page 33 .
2. Remove the ignition module, if it is attached.
38 - Repair instructions 1351 - 002 - 25.11.2020
