7.14.2 To disassemble the crankcase and
crankshaft

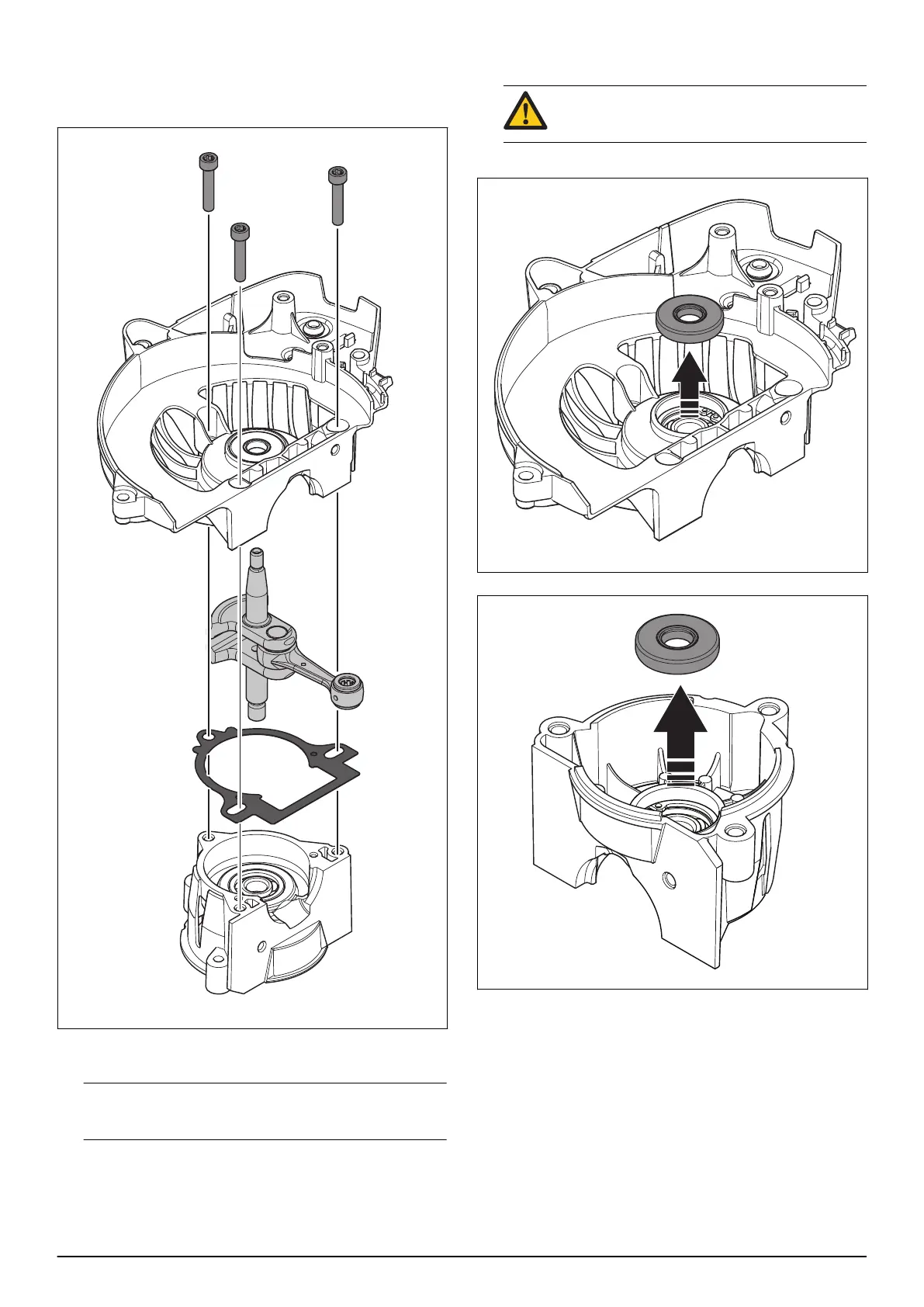

1. Remove the 3 screws and disconnect the crankcase
halves.
2. Lift the crankshaft out of the crankcase half on the
starter side.
Note: The crankshaft has a tight fit in the crankshaft
ball bearing.
3. Remove the gasket and clean remaining gasket
material from the surfaces.
4. Use a screwdriver or equivalent to remove the
sealing ring on each crankcase half.
CAUTION: Remove the sealing rings
carefully. The crankcase is easily damaged.
a) Flywheel side.
b) Clutch side.
5. Discard the sealing rings.
6. Use a snap ring pliers to remove the snap ring on
each crankcase half.
