RedMax CHTZ60 - Handle Procedures

7.10 Handles

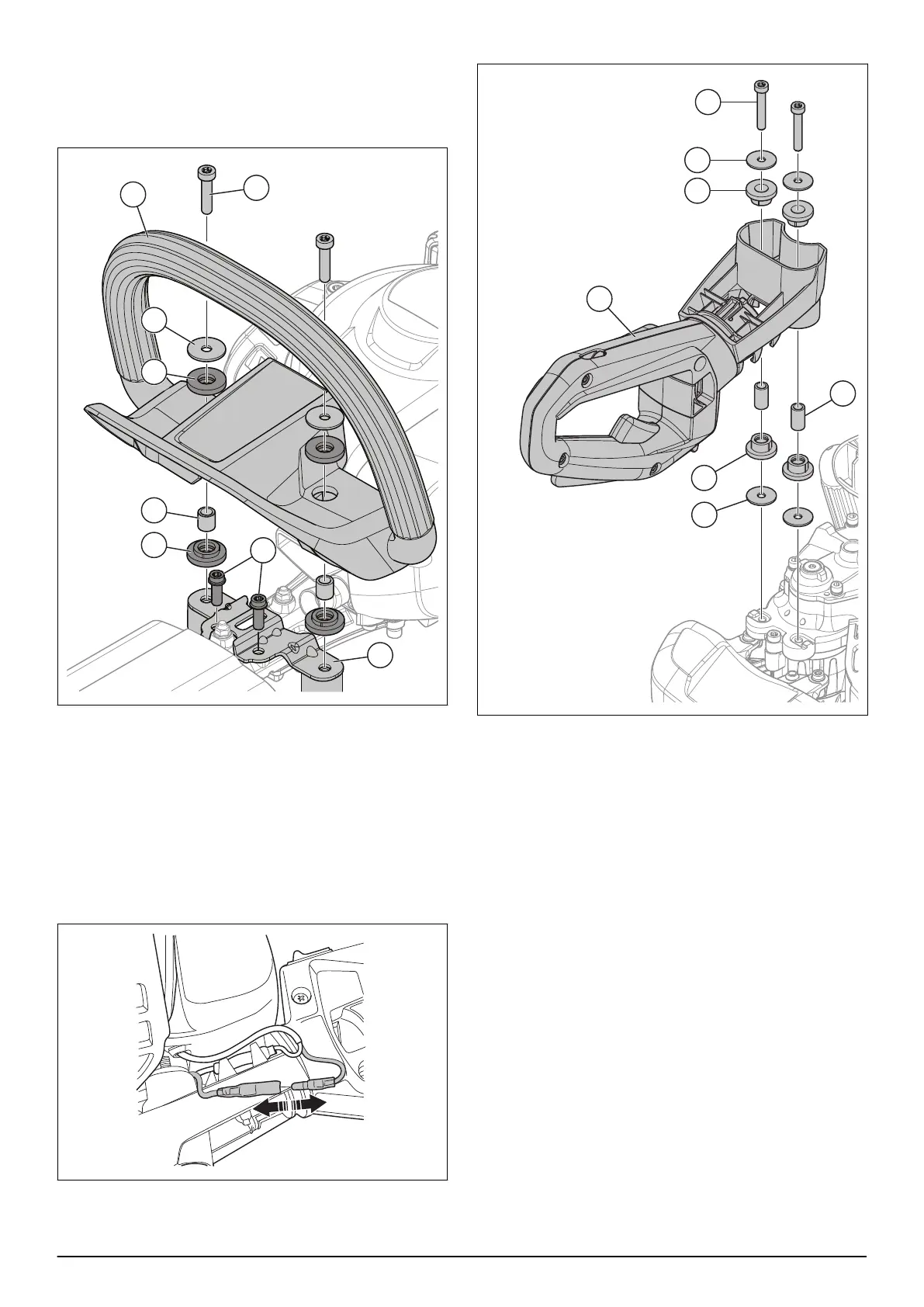

7.10.1 To remove and install the front handle
1. Remove the 2 screws (A), the 2 washers (B), the 2
vibration elements (C), and the front handle (D).
A
H
G
B
D
C
E
F
2. Remove the 2 sleeves (E) and the 2 vibration
damping units (F).
3. Remove the 2 screws (G) and the bracket (H).
4. Install in the opposite sequence.
7.10.2 To remove and install the throttle handle
1. Remove the carburetor. Refer to To remove and
install the carburetor on page 23 .
2. Disconnect the short circuit cables.
3. Remove the 2 screws (A) and the 4 washers (B).
A
B
C
B
E
D
C
4. Remove the 4 dampers (C), the 2 bushings (D), and
the throttle handle (E).
5. Examine all parts for damage. Replace damaged
parts.
6. Install in the opposite sequence.
1351 - 002 - 25.11.2020 Repair instructions - 27
