RedMax CHTZ60 - Page 40

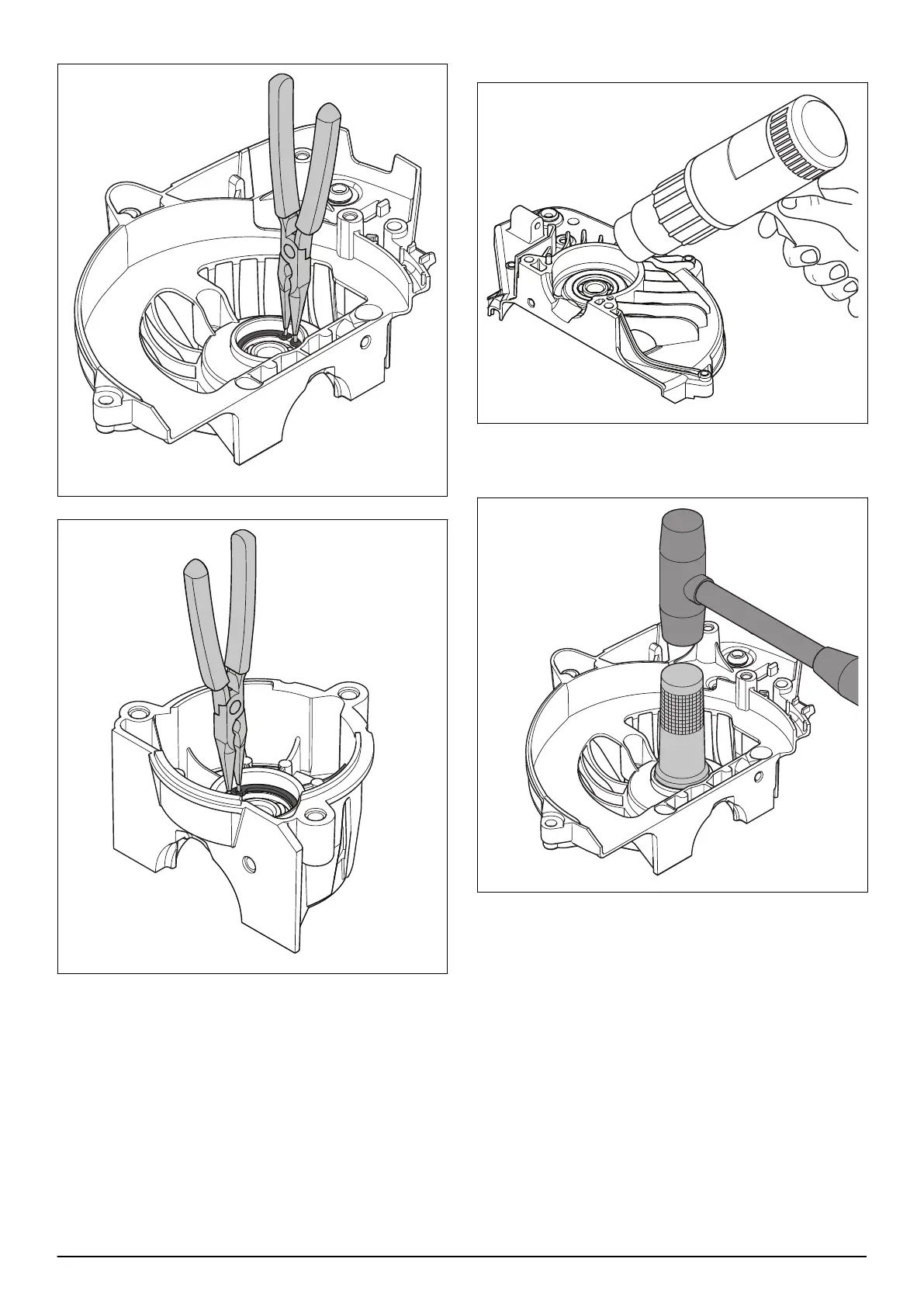

a) Flywheel side.
b) Clutch side.
7. Increase the temperature of the crankcase halves to
120ºC with a hot air gun.
8. Use the removal tool for the ball bearings to remove
the ball bearings from the crankcase halves.
a) Flywheel side.
40 - Repair instructions 1351 - 002 - 25.11.2020
