b) Clutch side.
7.14.3 To clean and examine the crankcase and
crankshaft
The crankshaft cannot be repaired. Replace it if it is
worn or damaged.

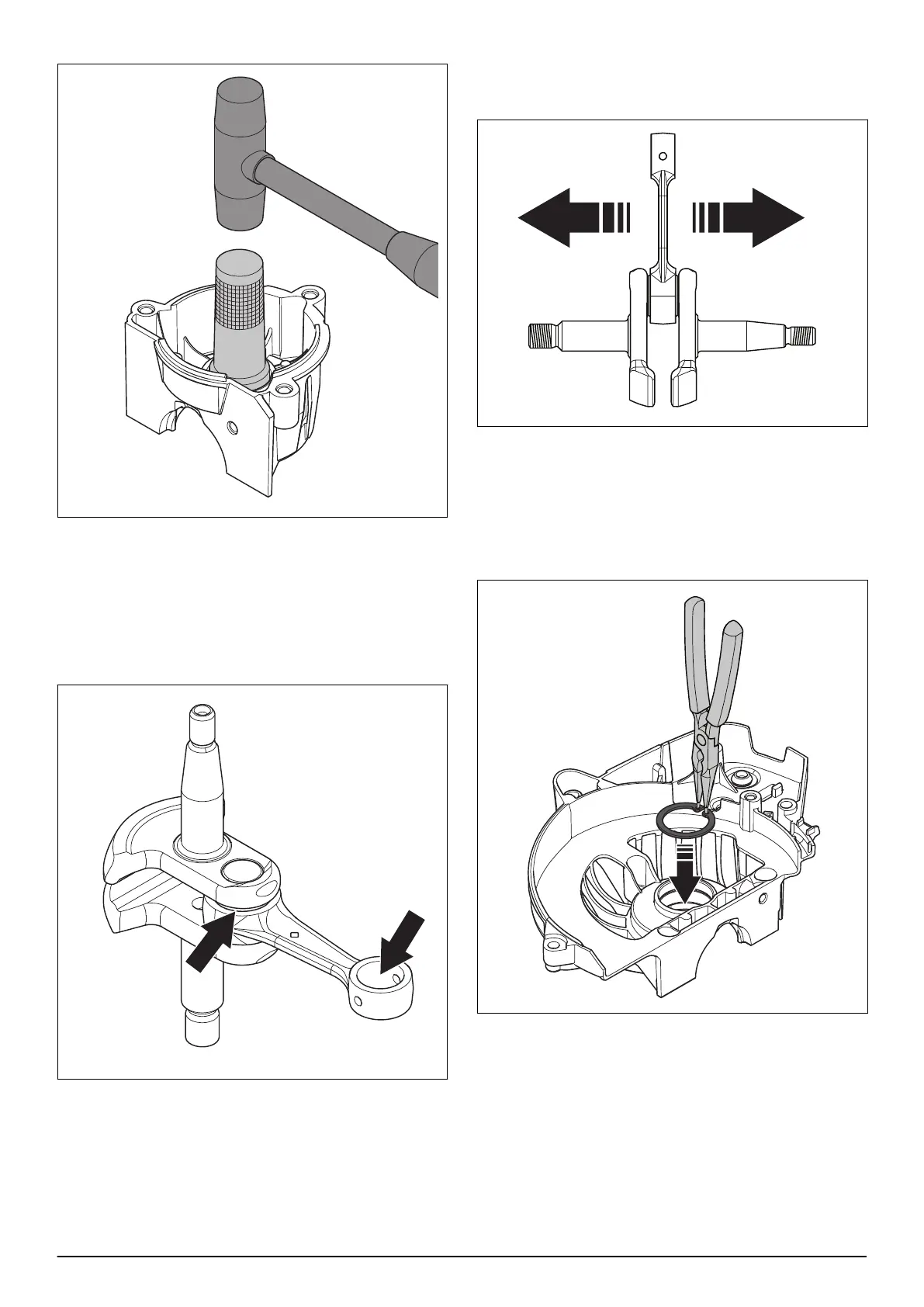

• Examine the large end of the connecting rod. If there
are marks, discoloration or damaged, replace the
crankshaft.
• Examine the small end of the connecting rod. If
there are marks or discoloration in the groove of the
bearing, replace the crankshaft.
• Examine the crankshaft bearing. There must be no
radial play in the connecting rod. Make sure that
there is axial play to sufficiently lubricate the
crankshaft bearing.
• Examine the crankcase halves for cracks and
damages.
7.14.4 To assemble the crankcase and crankshaft
1. Use a snap ring pliers to attach the snap ring on
each crankcase half.
a) Flywheel side.
1351 - 002 - 25.11.2020 Repair instructions - 41
