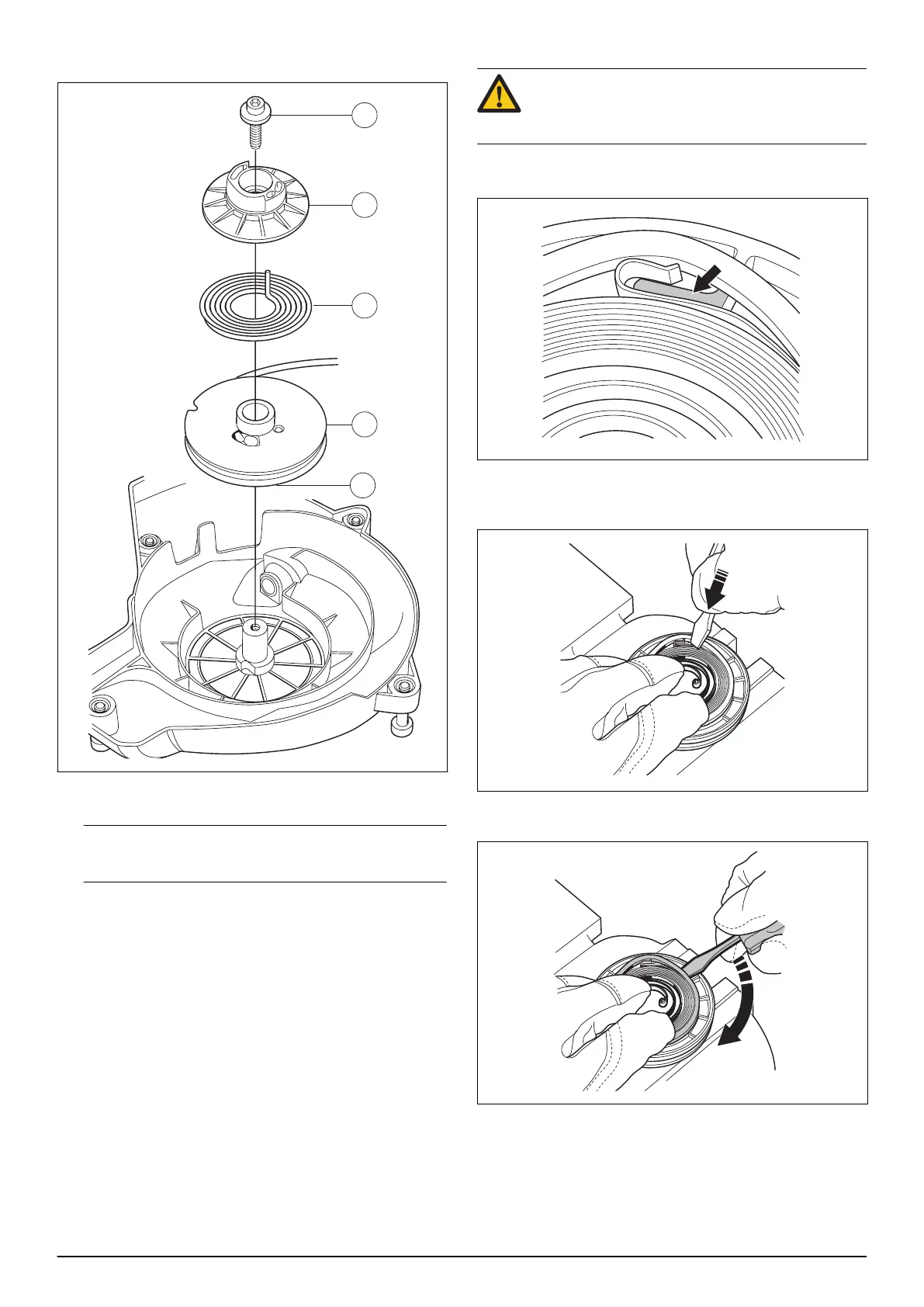

4. Remove the screw (A), the drive disc (B), and the
drive disc spring (C).
A
B
C
D
E
5. Carefully remove the starter pulley (D) together with
the recoil spring (E).
Note: The recoil spring is installed in the starter
pulley.
7.3.3 To clean and examine the starter unit
• Clean all components.
• Examine the starter rope. Replace the starter rope if
it is damaged.
• Examine the starter pulley. Replace damaged parts.
• Make sure that the start pawls on the starter pawl
assembly are not damaged. Make sure that the
starter pawl springs on the starter pawl assembly
are attached correctly and move freely.
• Lubricate the starter pawls on the starter unit.
• Lubricate the starter spring.
7.3.4 To install the recoil spring in the starter pulley
WARNING: Use protective glasses. The recoil
spring can eject from the starter pulley and
cause injury.
1. Align the flange on the recoil spring with the groove
in the starter pulley.
2. Hold the recoil spring with 2 fingers. Push the recoil
spring down into the starter pulley with a
screwdriver.
3. Hold the recoil spring with 2 fingers. Remove the
plastic strap with a screwdriver.
